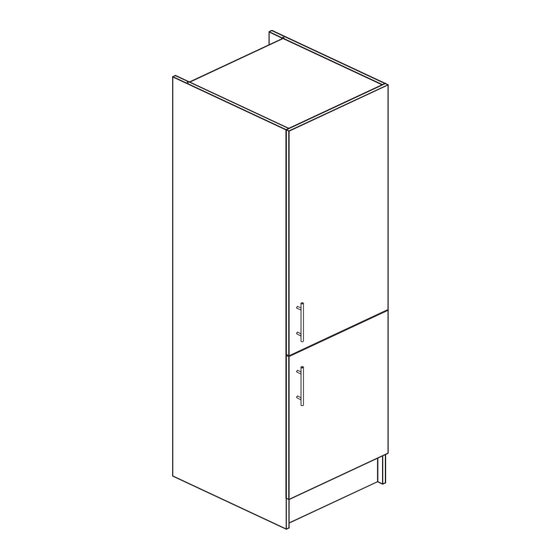

Athina - 500 Tall Cupboard

Assembly Instructions -

Dimensions

Width - 50cm

Depth - 59cm

Height - 200cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

608/0794

608/0914

608/0859

608/0976

MADE IN

BRITAIN

Issue 1 - 04/01/10

Need help?

Do you have a question about the Athina 500 Tall Cupboard and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Athina 500 Tall Cupboard

Page 1 Athina - 500 Tall Cupboard Assembly Instructions - 608/0794 Please keep for future reference 608/0914 608/0859 608/0976 Dimensions Width - 50cm Depth - 59cm MADE IN Height - 200cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 04/01/10...
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 51kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Horizontal (D0319A) (470 X 499mm) Left Side Right Side Shelf (D0328A) (D0329A) (D0320A)
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 If you would If you would like Choose which way like your doors your doors to you would like the to open this open this way, doors to open...
Page 6 Assembly Instructions Step 4 Fit 2 brackets to the right side 10mm Fit a bracket to the right side , 10mm down from the top edge, see diagram. Secure the bracket using screw Note: The bracket must be flush with the back edge of the panel.
Page 7 Assembly Instructions Step 6 Prepare the 3 horizontals 10mm Insert 4 large locking nuts into each horizontal as shown. Note: Arrow on locking nut must point towards hole in edge of panel. Tap 6 wooden dowels into each horizontal as shown. Note: Wooden dowels must not stick out from the edge by more than...
Page 8 Assembly Instructions Step 9 Fit the plinth to the right side Push the plinth onto the right side , as shown. Use a screwdriver to tighten the large locking fitted to the plinth , as shown. Note: Turn the large locking nut as far as they will go - more than...
Page 9 Assembly Instructions Step 11 Fit the back The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Square up the unit by making sure that measurement x to x equals y to y.
Page 10 Assembly Instructions Step 12 Secure the unit to the wall Using the brackets fitted to the back edge of the sides screw the unit to the wall. Fixings are not supplied as they will need to suit the wall type, and the length of screw will depend on the distance of the back of the Unit to...
Page 11 Assembly Instructions Step 14 Fit the 2 shelves Place the shelves into the unit onto the shelf studs Step 15 Prepare the doors Push fit 2 hinges into the small door large door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees...
Page 12 Assembly Instructions Step 16 Carefully choose which 2 holes you will need to drill in each door. Drill the handle holes This page shows the holes to drill if you in the doors have fitted the hinges to the left side. Important: Only carry Do not carry out this step if you have fitted out this step if the...
Page 13 Assembly Instructions Step 17 Carefully choose which 2 holes you will need to drill in each door. Drill the handle holes This page shows the holes to drill if you in the doors have fitted the hinges to the right side. Important: Only carry Do not carry out this step if you have fitted out this step if the...
Page 14 Assembly Instructions Step 18 screw A Fit doors and handles 2 people are needed here Note: The easiest way to attach the doors is to fit the top hinge screw B first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate Keep the hinge...
Page 15 Assembly Instructions Step 19 Adjust the doors if needed Height adjustment. Loosen screws A on hinge plates and move door up or down as required. Retighten screw A. Forward and Back adjustment. Loosen screw B on hinge plate and move door in or out as required.
Page 16 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2457...
Page 17 Athina - 500 Tall Cupboard Assembly Instructions - 608/0794 Please keep for future reference 608/0914 608/0859 608/0976 608/2967 Dimensions Width - 50cm Depth - 59cm MADE IN Height - 200cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 25/03/11...
Page 18 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 51kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 19 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Horizontal (D0319A) (470 X 499mm) Left Side Right Side Shelf (D0328A) (D0329A) (D0320A)
Page 20 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 21 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 If you would If you would like Choose which way like your doors your doors to you would like the to open this open this way, doors to open...
Page 22 Assembly Instructions Step 4 Fit 2 brackets to the right side 10mm Fit a bracket to the right side , 10mm down from the top edge, see diagram. Secure the bracket using screw Note: The bracket must be flush with the back edge of the panel.
Page 23 Assembly Instructions Step 6 Prepare the 3 horizontals 10mm Insert 4 large locking nuts into each horizontal as shown. Note: Arrow on locking nut must point towards hole in edge of panel. Tap 6 wooden dowels into each horizontal as shown. Note: Wooden dowels must not stick out from the edge by more than...
Page 24 Assembly Instructions Step 9 Fit the plinth to the right side Push the plinth onto the right side , as shown. Use a screwdriver to tighten the large locking fitted to the plinth , as shown. Note: Turn the large locking nut as far as they will go - more than...
Page 25 Assembly Instructions Step 11 Fit the back The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Square up the unit by making sure that measurement x to x equals y to y.
Page 26 Assembly Instructions Step 12 Secure the unit to the wall Using the brackets fitted to the back edge of the sides screw the unit to the wall. Fixings are not supplied as they will need to suit the wall type, and the length of screw will depend on the distance of the back of the Unit to...
Page 27 Assembly Instructions Step 14 Fit the 3 shelves Place the 3 shelves into the unit onto the shelf studs Step 15 Prepare the doors Push fit 2 hinges into the small door large door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are...
Page 28 Assembly Instructions Step 16 Carefully choose which 2 holes you will need to drill in each door. Drill the handle holes This page shows the holes to drill if you in the doors have fitted the hinges to the left side. Important: Only carry Do not carry out this step if you have fitted out this step if the...
Page 29 Assembly Instructions Step 17 Carefully choose which 2 holes you will need to drill in each door. Drill the handle holes This page shows the holes to drill if you in the doors have fitted the hinges to the right side. Important: Only carry Do not carry out this step if you have fitted out this step if the...
Page 30 Assembly Instructions Step 18 screw A Fit doors and handles 2 people are needed here Note: The easiest way to attach the doors is to fit the top hinge screw B first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate Keep the hinge...
Page 31 Assembly Instructions Step 19 Adjust the doors if needed Height adjustment. Loosen screws A on hinge plates and move door up or down as required. Retighten screw A. Forward and Back adjustment. Loosen screw B on hinge plate and move door in or out as required.
Page 32 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2457...
