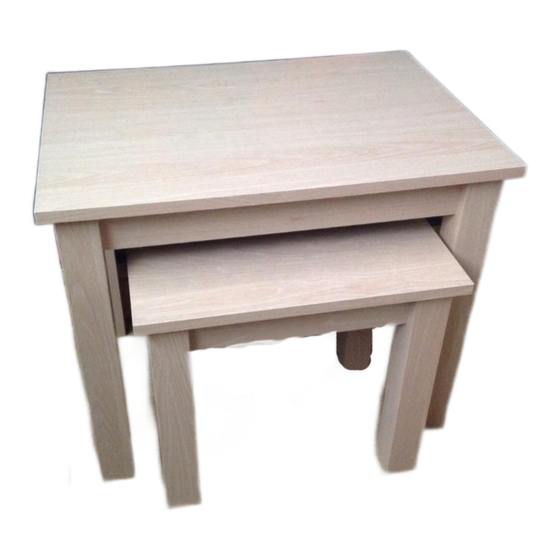

Chloe nest of tables
Hide thumbs Also See for 609/1439:

Advertisement

Quick Links

Chloe Nest of Tables
Assembly Instructions
Dimensions
Large / Small
Width - 56/40cm
Depth - 40/30cm
Height - 47/35.5cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please keep for future reference
609/1439
609/1893
609/6300
415/9672
Version 3 Date: 19/03/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the 609/1439 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos 609/1439

  • Page 1 Width - 56/40cm Depth - 40/30cm Height - 47/35.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 3 Date: 19/03/15...
  • Page 2: Care And Maintenance

    Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages.
  • Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Pilot holes for guidance only Large support x 2 (43.8 x 6cm) Pilot holes for guidance only...
  • Page 4 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. 40mm Dowel x 24 43mm Locking pin x 16 14mm Screw x 20 15mm Locking nut x 16 Plastic support x 10 Tools required Phillips screwdriver...
  • Page 5 Assembly Instructions Step 1 Fitting the large legs Insert Dowels into the Large legs Screw Locking pins into the Large legs Note: Insert Locking pins as far as shown. Do not over tighten. Note: It would be useful to ask someone to help you at this stage.
  • Page 6 Assembly Instructions Step 1 - continued Locking nuts Large legs the Medium supports Use a screwdriver to turn Locking nuts clockwise to lock. Note: The screw holes on the medium supports should face inward. Step 2 Fitting the large table Insert Dowels fully into the Large legs...
  • Page 7 Assembly Instructions Step 2 - continued Carefully locate the Large table top onto the unit. Plastic supports onto the Large table top...
  • Page 8 Assembly Instructions Step 3 Finishing the large table Carefully turn the table upright. Step 4 Fitting the small legs Insert Dowels into the Small legs Screw Locking pins into the Small legs Note: Insert Locking pins as far as shown. Do not over tighten.
  • Page 9 Assembly Instructions Step continued Note: It would be useful to ask someone to help you at this stage. Locking nuts Small legs onto the Small support Use a screwdriver to turn Locking nuts clockwise to lock. Note: The screw holes on the legs and support should align.
  • Page 10 Assembly Instructions Step Step Fitting the small table Insert Dowels fully into the Small legs Carefully locate the Small table top onto the unit. Continued on next page.
  • Page 11 Assembly Instructions Step continued Plastic supports onto the Small table top Step 6 Finishing the Small table Carefully turn the table upright.
  • Page 12 Assembly Instructions Step 7 Finishing the unit With help, place the unit in the intended position. Large table Small table Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
