Quantum DXi9000 Series Quick Start Manual

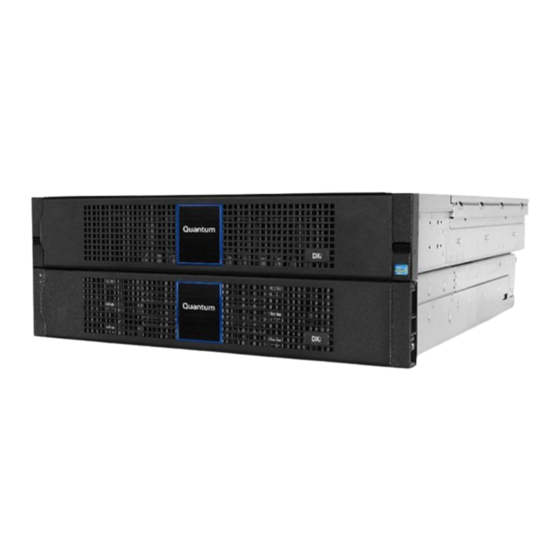

DXi9000 Series QUICK START
Using variable-length deduplication, DXi9000 Series systems provide scalable backup storage and disaster recovery
protection across sites. They can also replicate the data as part of disaster recovery. The DXi9000 Series includes the
DXi9000 and DXi9100. The DXi9000 is available in two storage options: Standard Density (SD) and High Density (HD).
The DXi9100 is available with HD storage. For installation instructions, including pre-installation requirements, log in to
CSWeb, and access the DXi9000 Series Service Documentation Center: https://qsweb.quantum.com/DXi9000_Service.
Activate the warranty and register the system with Quantum:
Node
The front and back components are similar for all DXi9000 Series systems.
Node Front
Solid state drives
(16 x drives shown in example)
Left control
panel
Array Module and Expansion Module Front
The DXi9000 SD system includes one SD Array Module, and up to nine SD Expansion Modules. The DXi9000 HD system
includes one HD Array Module and can include one additional HD Expansion Module. The DXi9100 system can include
up to two HD Array Modules and up to two HD Expansion Modules.
SD Array Module and Expansion Module Front
Power, Service, and Locate LEDs
Tray ID and error code
Array Module and Expansion Module Rear
The rear of the Array Module contains two controllers. The rear of each Expansion Module contains two I/O modules.
These components are the same for all DXi9000 Series systems. See details below:
Array Module Controller
Ethernet activity
Ethernet
link rate
Attention
Cache
Activity
active
Locate
Tray ID and
error code
Right control
panel
Information tag
Hard drive
drawer
Hard drives
SAS drive
SAS host/
expansion
expansion
port fault
fault
SAS drive
SAS host/
expansion
expansion
activity
activity
Page 1
www.quantum.com/startup
Optional Ethernet or
Fibre Channel ports
2 x 10 GbE ports
SAS
ports
1 GbE port
HD Array Module and Expansion Module Front
Tray ID and error code
Power, Service, and Locate LEDs
Node Back
4 x 1 GbE ports
(DXi9100 only)
Service port
Expansion Module I/O Module
SAS drive expansion
port fault
Attention
Locate
SAS drive
expansion
activity
Power
supplies
