DXi6700, DXi6701, and
DXi6702 Site Planning Guide

Product Overview

The DXi6700 family of disk backup and replication appliances use
Quantum's data deduplication technology to expand the amount of
backup data users can retain on fast-recovery RAID systems by 10 to 50
times. The result is a cost-effective way for IT departments to store backup
data on disk for months instead of days, providing high speed, reliable
restores, increasing available data recovery points, and reducing media
management.
For disaster recovery in distributed environments, the DXi6700 systems
make automated WAN replication practical by dramatically reducing the
bandwidth required to move backup data securely between sites.
DXi6700 solutions are integrated systems that are easy to install and use
with all leading backup applications. They provide best-in-class
performance with flexible, easy-to-use interface options including NAS,
OST, virtual library, or mixed presentations, as well as Ethernet and Fibre
Channel connectivity. DXi6700 appliances are part of a comprehensive set
of backup solutions, serviced and supported by Quantum, the leading
global specialist in backup, recovery, and archive.
Note: This
Site Planning Guide

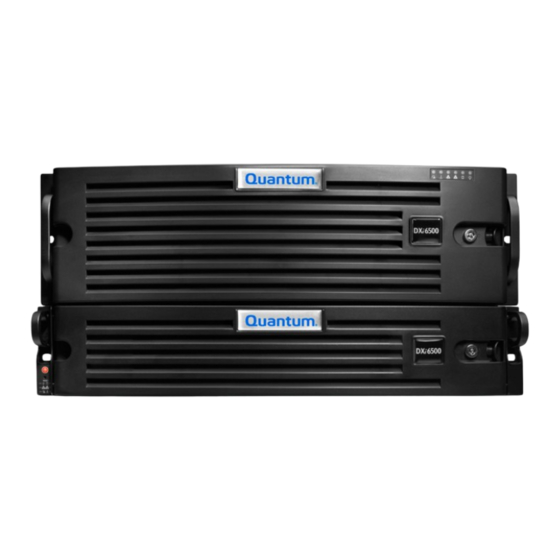

DXi6700 Node
DXi6700 Expansion
Module
is for DXi6700 with DXi 2.1.1 Software.
DXi6700/DXi6701/DXi6702
Contents
Product Overview................................... 1
and DXi6702........................................... 2
Licenses .............................................. 2
DXi Accent.......................................... 2
Installation ............................................. 3
Rack Compatibility ............................. 3
Network Configuration...................... 4
Firewall Ports ..................................... 4
Service .................................................... 7
DXi6700 Warranty.............................. 7
Service Package Upgrades ................. 7
Email Home ........................................ 8
StorageCare™ Guardian..................... 8
DXi Advanced Reporting.................... 8
Configurations ....................................... 9
Shipping Information........................... 11
Specifications ....................................... 11
Physical Characteristics.................... 12
www.quantum.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dxi6701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quantum dxi6701

Summary of Contents for Quantum dxi6701

  • Page 1: Table Of Contents

    OST, virtual library, or mixed presentations, as well as Ethernet and Fibre Channel connectivity. DXi6700 appliances are part of a comprehensive set of backup solutions, serviced and supported by Quantum, the leading global specialist in backup, recovery, and archive. Note: This Site Planning Guide is for DXi6700 with DXi 2.1.1 Software.

  • Page 2: Included With Your Dxi6700, Dxi6701, And Dxi6702

    DXi6700, DXi6701, and DXi6702 Site Planning Guide Included With Your DXi6700, DXi6701, and DXi6702 The DXi6700, DXi6701, and DXi6702 are fully configured to your specifications and  pre-tested in the factory. Every DXi6700 configuration arrives with all necessary parts included. Each system comes with an accessory kit containing rack-mount hardware and a Quick Reference and Documentation CD which includes the User’s Guide...

  • Page 3: Installation

    DXi6700/DXi6701/DXi6702 To use DXi Accent, you must install the Quantum OST Client Plug-in on the media server. Symantec For information about installing the OST Plug-in and using DXi Accent, see the NetBackup OST Configuration Guide Installation Rack Compatibility Nearly all standard four-post 19” server racks meeting EIA-310 specifications are compatible with the DXi6700 rack mount kits.

  • Page 4: Network Configuration

    DXi6700, DXi6701, and DXi6702 Site Planning Guide Network Configuration During network configuration, each individual interface on the DXi6700 can be configured as a subnet with its own network settings. Each physical Ethernet port can be configured as an interface. In addition, you can also create bonded interfaces (logical ports) consisting of two or more physical ports.
  • Page 5 DXi6700/DXi6701/DXi6702 • 682 (NFS, rquotad) • 880 (NFS, mountd) • 2049 (NFS, nfsd) • 32000 (NFS, lockd) TCP Ports Opened for Data Traffic • 111 (RPC, portmap) • 139 (CIFS) • 445 (CIFS) • 628 (NFS, statd) • 682 (NFS, rquotad) •...

  • Page 6: Installation And Integration Services

    DXi6700, DXi6701, and DXi6702 Site Planning Guide Installation and Installation and integration of the DXi6700 systems by Quantum is not required since Integration Services the DXi6700 are customer installable. Quantum recommends that system installation be performed only by qualified network or system administrators who have a working knowledge of ISV setup and configuration.

  • Page 7: Service

    A variety of support options are available to you via Quantum’s tiered hardware support plans to meet a range of budget and availability requirements. Quantum’s Support Plans include Next Business Day Gold (Next Business Day Onsite, 7x24 Phone Support), Gold (7x24x4 Hr on-site, 7x24 phone support), and a customized Platinum offering.

  • Page 8: Email Home

    StorageCare™ Guardian StorageCare Guardian is a remote monitoring and diagnostic solution that enables Quantum to proactively monitor the health of Quantum systems over the Internet and use intelligent diagnostics data to remotely service the equipment if issues arise. StorageCare Guardian delivers more reliable backups and faster resolution time for customers at no additional cost for supported products under warranty or service contract.

  • Page 9: Dxi6700, Dxi6701, And Dxi6702 Configurations

    – 56 TB * To upgrade the capacity of a DXi6700 to 64 TB or greater, the DXi must be converted to a DXi6701 or DXi6702 first. For more Quantum DXi6700 to DXi6701/DXi6702 and DXi6701 to DXi6702 Conversion information about model conversion, see the Instructions (6-67195).
  • Page 10 – 80 TB * DXi6701 and DXi6702 configurations with 0 or 1 expansion modules include 2 RAID controller cards. All other configurations include 4 RAID controller cards. ** Any combination of expansion modules (with 1 TB drives or 2 TB drives) may be ordered or used for field capacity upgrades as long as the total capacity does not exceed 80 TB.

  • Page 11: Dxi6700, Dxi6701, And Dxi6702 Shipping Information

    3). Each node and expansion module ships in its own box. Each node shipping box weighs approximately 125 lbs. (56.7 kg). Each expansion module shipping box weighs approximately 75 lbs. (34.0 kg). All boxes for each DXi6700, DXi6701, or DXi6702 configuration are shipped on a single pallet.

  • Page 12: Physical Characteristics

    Approximately 885 lbs. (401.4 kg) Length: 42 in. (106.7 cm) Height: 56 in. (116.8 cm) DXi6700, DXi6701, and DXi6702 Specifications This section lists characteristics and specifications the DXi6700, DXi6701, and DXi6702. These characteristics and specifications are categorized as follows: • Physical Characteristics •...
  • Page 13 DXi6700 (2 x 1 GbE ports) - 1 to 2 1 GbE Ethernet connections for NAS or OST connectivity, replication, and remote management DXi6701 (6 x 1 GbE ports) - 1 to 6 1 GbE Ethernet connections for NAS or OST connectivity, replication, and remote management...
  • Page 14 C13 type 3-prong power outlet (IEC320 C13) Table 7 Virtual Device Limits and Hardware Interfaces DXi6700, DXi6701, and DXi6702 Virtual Device Limits and Hardware Interfaces Virtual Device Limits VTL backup target: 64 partitions maximum NAS backup target: 128 shares maximum (NFS or CIFS)
  • Page 15 DXi6700/DXi6701/DXi6702 Table 8 Power Requirements DXi6700, DXi6701, and DXi6702 Power Requirements Power Supplies and Cords Node Two (2) hot-swappable redundant power supplies Two (2) USA type 3-prong power cords with IEC320 C13 to Nema 5-15 connectors: Two (2) C13 to C14 type 3-prong power cords with...
  • Page 16 Caution: To safeguard backups and to avoid potential data loss in the event of a power outage, Quantum recommends that you connect the DXi6700, DXi6701, or DXi6702 to an uninterruptable power supply (UPS) with a minimum UPS capacity rating that meets the power requirements stated above.

  • Page 17: Environmental Specifications

    DXi6700/DXi6701/DXi6702 Environmental Table 9 provides various DXi6700, DXi6701, and DXi6702 environmental specifications. Specifications Table 9 Environmental Specifications Climatic Environment Temperature Operating 10° to 35°C (50° to 95°F) up to 3048m (10,000 ft) Shipping and storage –20° to 60°C (–4° to 140°F) up 12,000m (39,370 ft)
  • Page 18 EN 61000-4-8 - Power frequency magnetic field immunity test EN 61000-4-11 - Voltage dips, short interruptions and voltage variations immunity test Caution: The DXi6700, DXi6701, and DXi6702 systems are designed to be installed in a rack enclosure. Ensure that the operating temperature inside the rack enclosure does not exceed the maximum rated ambient temperature.
