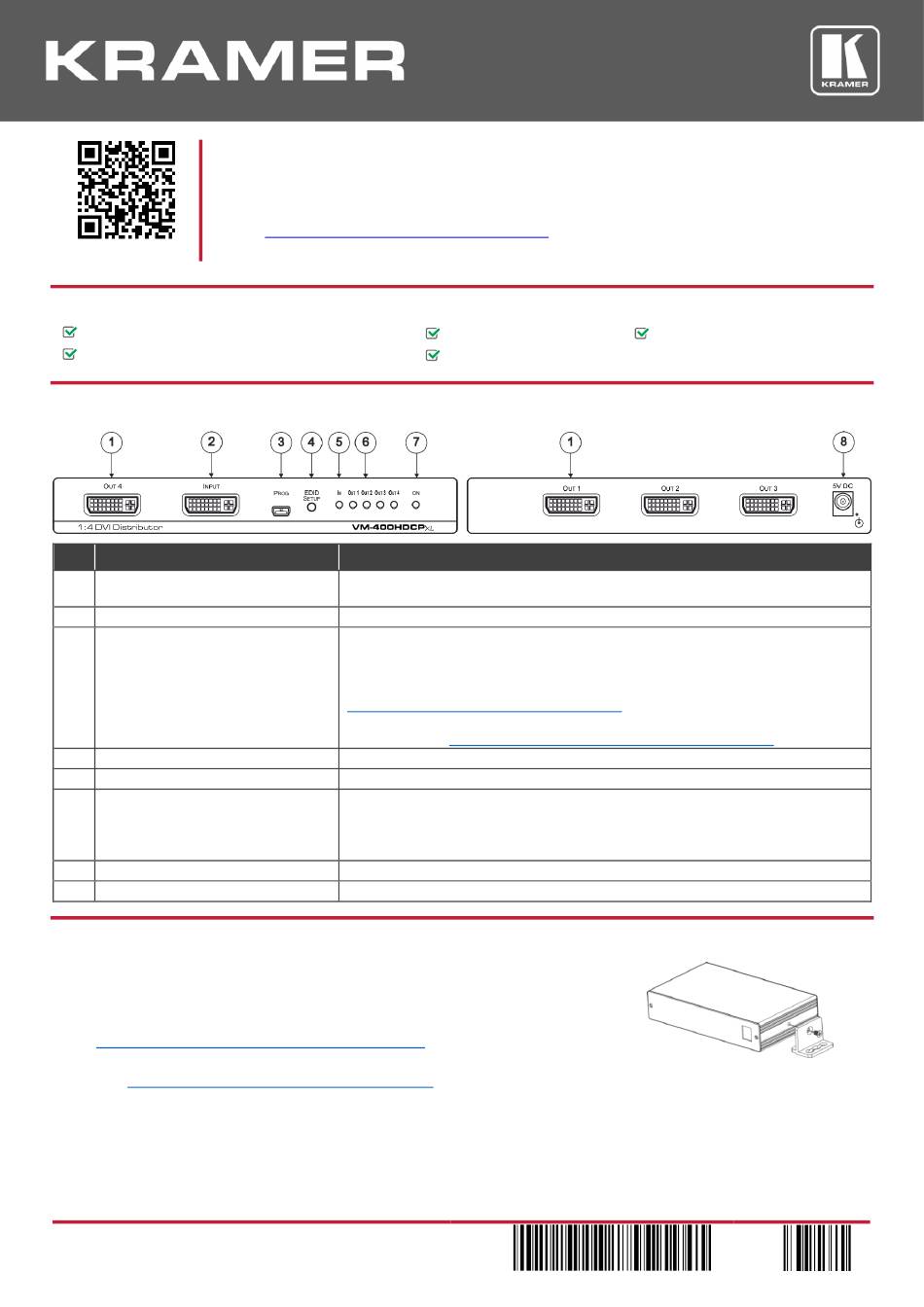

Kramer VM-400HDCPxl Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

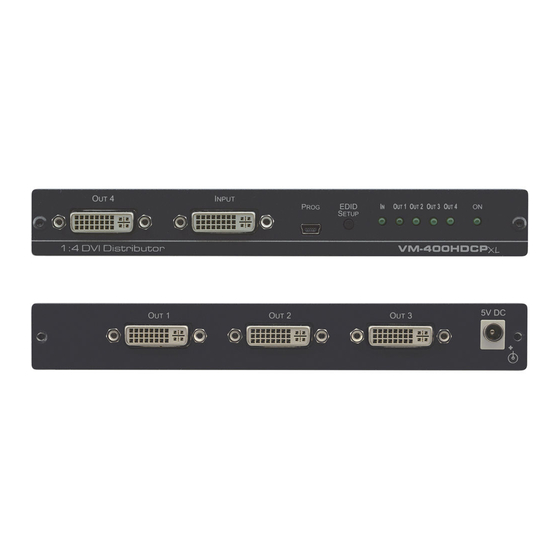

VM-400HDCPxl 1:4 DVI Distributor
1 Power adapter and cord

Step 2: Get to know your VM-400HDCPxl

# Feature
1 OUT DVI-I Connectors
2 INPUT DVI-I Connector
3 PROG Mini USB Connector
4 EDID SETUP Button
5 IN LED
6 OUT LEDs
7 ON LED
8 5V DC Connector

Step 3: Install the VM-400HDCPxl

Install VM-400HDCPxl using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to
www.kramerav.com/downloads/VM-400HDCPxl
•
Mount the unit in a rack using the recommended rack adapter
www.kramerav.com/product/VM-400HDCPxl
(see
VM-400HDCPxl Quick Start
VM-400HDCPxl Quick Start Guide
This guide helps you install and use your VM-400HDCPxl for the first time.
Go to www.kramerav.com/downloads/VM-400HDCPxl
firmware upgrades are available.
Function
Connect to DVI acceptors OUT 4 is located on the front panel OUT 1 to OUT 3 on
the rear panel.
Connect to an DVI/HDMI (over DVI-D connector) source.
Use to send RS-232 Commands.
Connect to a PC to perform firmware upgrades (via K-Upload) and work with the
EDID Designer.
K-Upload and EDID Designer can be downloaded from our Web site at:
www.kramerav.com/manual/VM-400HDCPxl.
To use the mini USB port, you need to download and the Kramer USB driver from
our Web site at:
Press to capture the input EDID or select the default EDID.
Lights when an active input signal is detected.
Light when an active output acceptor is detected (from 1 to 4).
In the EDID mode indicate the EDID type acquired.
Flashes when a non-HDCP acceptor is connected to the output and the input is
HDCP-encrypted (the content is displayed for only a few seconds).
Lights when the unit receives power.
Connects to the 5V DC power supply.
to download the latest user manual and check if
1 bracket set
4 Rubber feet
www.kramerav.com/support/product_downloads.asp
.
).
P/N: 2 9 0 0 - 3 0 1 0 8 4 QS
1 Quick start guide
and install it.
Rev: 4
