- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VM-400HDCP 1:4 DVI Distributor P/N: 2900-300054 Rev 2...
-
Page 3: Table Of Contents
Defining the VM-400HDCP 1:4 DVI Distributor Connecting the VM-400HDCP Acquiring the EDID Technical Specifications Default EDID Figures Figure 1: VM-400HDCP 1:4 DVI Distributor Front Panel Figure 2: VM-400HDCP 1:4 DVI Distributor Rear Panel Figure 3: Connecting the VM-400HDCP 1:4 DVI Distributor VM-400HDCP – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

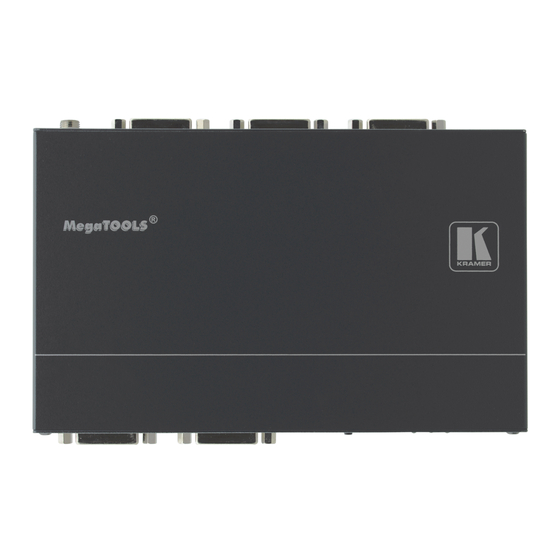

Overview The high quality VM-400HDCP accepts an HDMI signal and distributes the selected signal to up to four outputs over DVI connectors. The VM-400HDCP features: Maximum data rate of 4.95Gbps (1.65Gbps per graphic channel) I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID handling &... -
Page 8: Defining The Vm-400Hdcp 1:4 Dvi Distributor
Defining the VM-400HDCP 1:4 DVI Distributor Figure 1 defines the front panel of the VM-400HDCP. Figure 1: VM-400HDCP 1:4 DVI Distributor Front Panel Feature Function INPUT DVI Connector Connect to a DVI source MONITOR OUT DVI Connect to a DVI acceptor for input monitoring... -
Page 9: Figure 2: Vm-400Hdcp 1:4 Dvi Distributor Rear Panel
Figure 2 defines the rear panel of the VM-400HDCP. Figure 2: VM-400HDCP 1:4 DVI Distributor Rear Panel Feature Function OUT 1 DVI Connector Connect to a DVI acceptor OUT 2 DVI Connector Connect to a DVI acceptor OUT 3 DVI Connector... -
Page 10: Connecting The Vm-400Hdcp
2. Connect the DVI outputs and loop monitor to up to four DVI acceptors (for example, an LCD TV and a plasma display). 3. Connect the power adapter to the VM-400HDCP and to the mains electricity (not shown in Figure...
