Summary of Contents for Kramer VM-4Hxl
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VM-4Hxl 1:4 HDMI Distributor... -
Page 2: Table Of Contents
7.1.3 Acquiring the Auto EDID Technical Specifications Figures Figure 1: VM-4Hxl 1:4 HDMI Distributor Figure 2: Connecting a VM-4Hxl 1:4 HDMI Distributor Tables Table 1: VM-4Hxl 1:4 HDMI Distributor Features Table 2: Technical Specifications of the VM-4Hxl 1:4 HDMI Distributor... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
100-264 VAC universal switching power supply. 1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions 2 The default EDID feature lets you connect the VM-4Hxl without having to connect a display to the output... -
Page 6: About Hdmi
5 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to support Dolby 5.1 audio and high-resolution audio formats 6 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost-effective manner KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Defining Edid
) is a data-structure, provided by a display, to describe its capabilities to a graphics card (that is connected to the display’s source). The EDID enables the VM-4Hxl to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data... -
Page 8: Figure 1: Vm-4Hxl 1:4 Hdmi Distributor

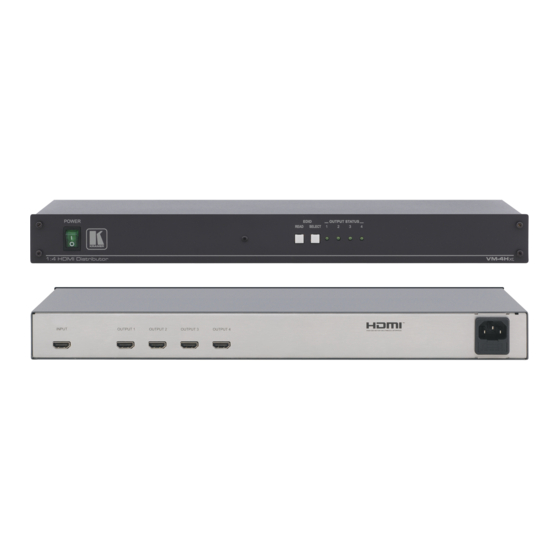

Your VM-4Hxl 1:4 HDMI Distributor Figure 1: VM-4Hxl 1:4 HDMI Distributor KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Installing The Vm-4Hxl In A Rack
Installing the VM-4Hxl in a Rack Table 1: VM-4Hxl 1:4 HDMI Distributor Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF READ Button Press to read the EDID of the selected display SELECT Button Select the desired display for EDID information OUTPUTS LEDs LEDs light when an output(s) is connected and active;... -
Page 10: Connecting A Vm-4Hxl 1:4 Hdmi Distributor
5. Acquire EDID (see Section 7 1 Switch OFF the power on each device before connecting it to your VM-4Hxl. After connecting your VM-4Hxl, switch on its power and then switch on the power on each device 2 As required. Up to 4 outputs can be connected on the VM-4Hxl. Not all outputs need to be connected... -
Page 11: Figure 2: Connecting A Vm-4Hxl 1:4 Hdmi Distributor
Connecting a VM-4Hxl 1:4 HDMI Distributor Figure 2: Connecting a VM-4Hxl 1:4 HDMI Distributor... -
Page 12: Acquiring Edid
Acquiring EDID Acquiring EDID The VM-4Hxl initially operates with the default EDID. This means that you can turn ON the power before connecting any of the acceptors or the source. You can acquire the EDID by sending the: • EDID from a selected output to the input (see Section 7 •... -
Page 13: Technical Specifications
Technical Specifications Technical Specifications Table 2 includes the technical specifications: Table 2: Technical Specifications of the VM-4Hxl 1:4 HDMI Distributor INPUT: 1 HDMI Connector OUTPUTS: 4 HDMI Connectors BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel COMPLIANCE WITH Supports HDMI and HDCP... - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
