Summary of Contents for Kramer VM-4HDx1
-
Page 1: User Manual
K R A ME R E LE CTR O N IC S L TD . USER MANUAL MODEL VM-4HDxl 3G HD/SD – SDI Distributor P/N: 2900-000327 Rev 4... -
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the VM-4HDxl Connecting the VM-4HDxl Technical Specifications Figures Figure 1: VM-4HDxl 3G HD/SD – SDI Distributor Figure 2: Connecting to the VM-4HDxl VM-4HDxl – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
300m for SD signals; 200m for 1.5GHz HD signals; 100m for 3GHz HD signals Features LEDs to indicate the SDI resolution (SD or HD) The VM-4HDxl is housed in a Kramer DigiTOOLS® enclosure and is 5V DC fed. VM-4HDxl - Overview... -
Page 8: Defining The Vm-4Hdxl

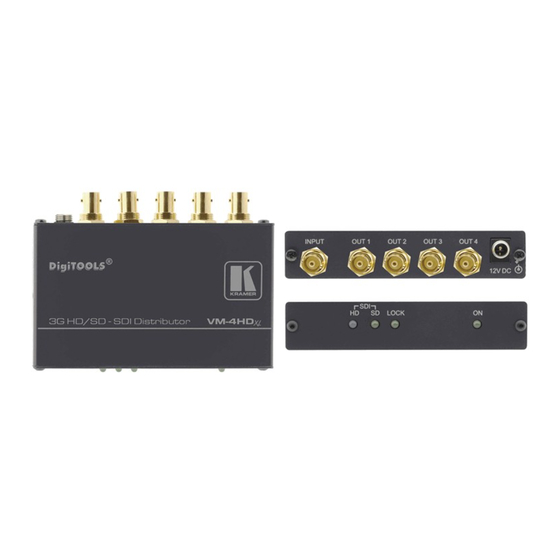

Defining the VM-4HDxl This section defines the VM-4HDxl. Figure 1: VM-4HDxl 3G HD/SD – SDI Distributor Feature Function 5V DC +5V DC connector for powering the unit OUT BNC connectors Connect to the SDI acceptors (from 1 to 4) INPUT BNC connector Connect to the SDI source HD LED (Blue) Lights when the SDI signal is HD... -
Page 9: Connecting The Vm-4Hdxl
Connecting the VM-4HDxl Always switch off the power to each device before connecting it to your VM-4HDxl. After connecting your VM-4HDxl, connect its power and then switch on the power to each device. To connect the VM-4HDxl as illustrated in the example in Figure 2, do the following:... -
Page 10: Technical Specifications
Technical Specifications 1 SMPTE-259M / 292M / 424M serial video, 75Ω on a INPUT: BNC connector OUTPUTS: 4 equalized and reclocked SMPTE-259M / 292M / 424M outputs, 75Ω on BNC connectors MAXIMUM DATA RATE (-3dB): 3Gbps 800mVpp /75Ω MAX. OUTPUT LEVEL: COUPLING: POWER SOURCE: 5V DC, 330mA... - Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
