  • Page 1 PDF provided by Conference Room AV Kramer VM-50AN 1x5 (U or B) (B) & 1 x 5 (U) Audio Distribution Amplifier...

  • Page 2: User Manual

    K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VM-50AN 1:5 Audio Distributor P/N: 2900-000050 Rev 4...

  • Page 4: Table Of Contents

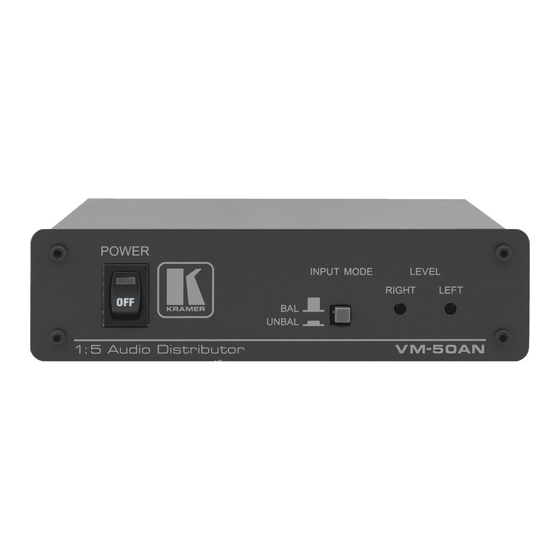

    Figures Figure 1: VM-50AN 1:5 Audio Distributor Figure 2: Connecting the VM-50AN as a Balanced Stereo 1:5 Audio Distributor Figure 3: Connecting the VM-50AN as an Unbalanced Stereo 1:5 Audio Distributor Figure 4: Connecting the VM-50AN as a 1:10 Audio Distributor...

  • Page 5: Introduction

    Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VM-50AN 1:5 Audio Distributor, which is ideal for the following typical applications: ...

  • Page 6: Getting Started

    Avoid interference from neighboring electrical appliances that may adversely influence signal quality  Position your Kramer VM-50AN away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

  • Page 7: Safety Instructions

    Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

  • Page 8: Overview

    Operation as a stand-alone distributor, or as a companion to other Kramer “50” series products like the VM-50V video DA, or the VM-50YC s-Video DA The VM-50AN is housed in a desktop sized enclosure. Two units can be rack mounted side-by-side with the optional RK-1 adapter in a 1U rack space.
  • Page 9 OUT 3.5mm Mini Plug Connector Connects to the unbalanced audio acceptor (from 1 to 5) OUT Terminal Block Connector Connects to the balanced audio acceptor (from 1 to 12 VDC 200mA +12V DC connector for powering the unit VM-50AN - Overview...

  • Page 10: Using Your Vm-50An 1:5 Audio Distributor

    Connecting the VM-50AN as a Balanced Stereo 1:5 Audio Distributor To connect and operate the VM-50AN as a balanced stereo 1:5 audio distributor, as the example in Figure 2 illustrates, do the following: 1. Connect a balanced stereo audio source (for example, a balanced stereo player) to the INPUT terminal block connector.

  • Page 11: Connecting The Vm-50An As An Unbalanced Stereo 1:5 Audio Distributor

    Connecting the VM-50AN as an Unbalanced Stereo 1:5 Audio Distributor To connect the VM-50AN as an unbalanced stereo 1:5 audio distributor, as the example in Figure 3 illustrates, do the following: 1. Connect the unbalanced stereo audio source (for example, a PC sound card) to the INPUT mini 3.5mm socket.

  • Page 12: Connecting The Vm-50An As A 1:10 Audio Distributor

    Figure 3: Connecting the VM-50AN as an Unbalanced Stereo 1:5 Audio Distributor Connecting the VM-50AN as a 1:10 Audio Distributor To connect the VM-50AN as a 1:10 audio distributor, as the example in Figure 4 illustrates, do the following: Warning:...

  • Page 13: Figure 4: Connecting The Vm-50An As A 1:10 Audio Distributor

    4. Adjust the right and/or left output signal level, if required. Insert a screwdriver into the hole and carefully rotate it, to trim the level. Figure 4: Connecting the VM-50AN as a 1:10 Audio Distributor VM-50AN - Using Your VM-50AN 1:5 Audio Distributor...

  • Page 14: Technical Specifications

    10% to 90%, RHL non-condensing 16.5cm x 12cm x 4.5cm (6.5” x 4.7” x 1.7”, W, D, H) DIMENSIONS: WEIGHT: 0.6kg (1.3lbs) approx. ACCESSORIES: Power supply OPTIONS: RK-1 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VM-50AN - Technical Specifications...
  • Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
