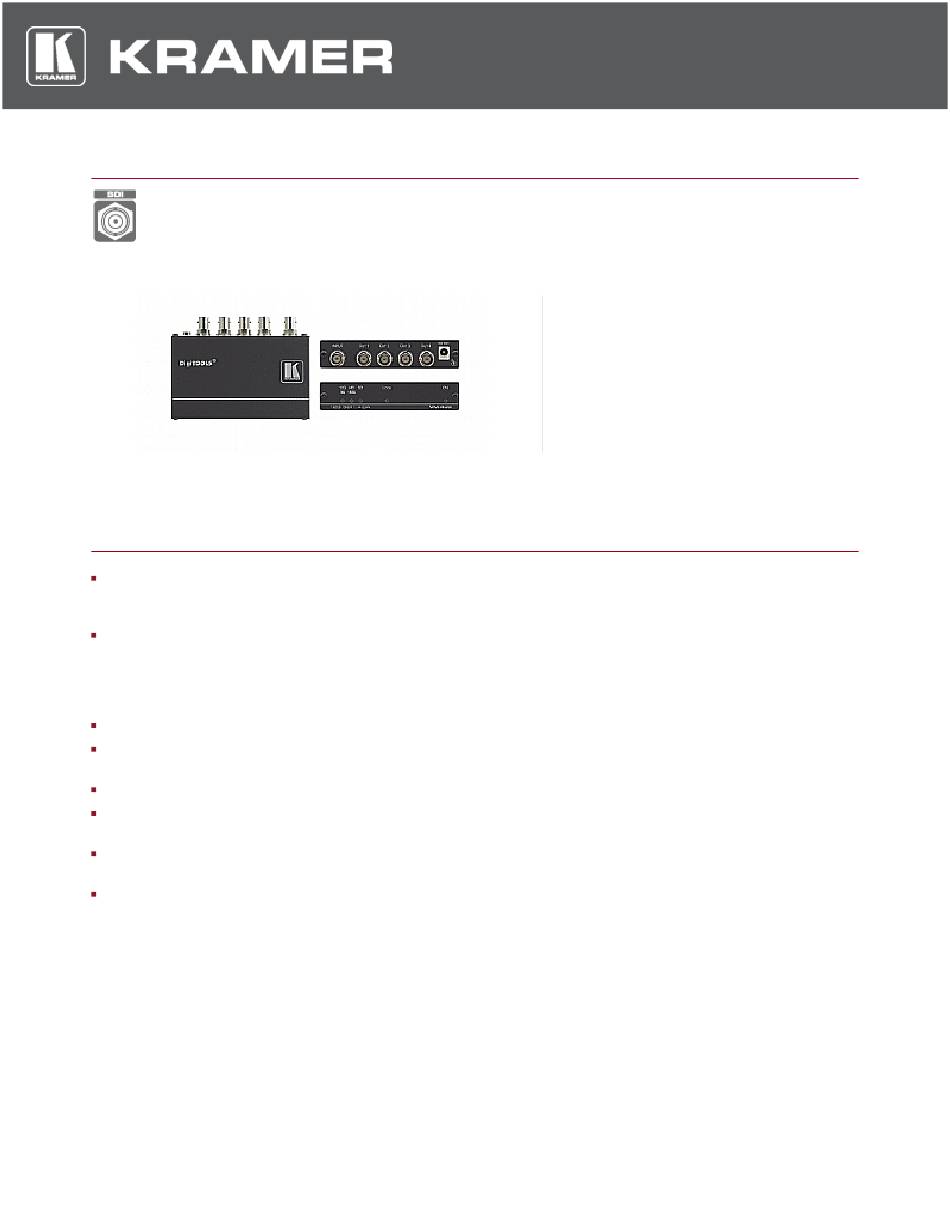

Kramer VM-4UX Quick Start Manual

VM-4UX
1:4 4K 12G SDI DA
FEATURES
Reliable Wire Connectivity
preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals
distribution deployments.
Extended-reach Input Extension
signal extension. Using Kramer high−quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD
signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals.
Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary
while using non−Kramer coaxial cables.
Transmitted Data Rate - Auto−adapting from 270Mbps to 12Gbps data rates.
Compliance - Complies with SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI),
ST−2081 (6G−SDI) and ST−2082 (12G−SDI) standards.
Max. Resolution - 4K@60Hz (4:2:2) 30bpp.
SDI Signal Transmission
of standard embedded audio channels with ancillary ID and metadata information.
LED Indicators - Status indicators for transmitted SDI data rate of input and output connected signals, and power
indicator, for ease of maintenance and troubleshooting.
Easy Installation - Compact DigiTOOLS™ fan−less enclosure for small footprint spaces and over−ceiling mounting,
or side−by−side rack mounting.
- Coaxial broadcast−grade cables are reliably connected via lockable BNC connectors,
- Input signal equalization and output signals reclocking to gain extended−reach
- SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass−through
The VM−4UX is a compact and high
performance 1:4 4K distributor for standard
broadcast−grade SDI signals of up to 12G
transmitted data rate. It auto−adapts to the
data rate of one SDI input signal, equalizes
and re−clocks the signal
transmitted signal reach, and distributes the
signal to four identical SDI outputs.
to improve
