Page 1: User Manual
USER MANUAL MODEL: VM-400HDCPxl 1:4 DVI Distributor P/N: 2900-300612 Rev 1 www.kramerAV.com... -
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining VM-400HDCPxl 1:4 DVI Distributor Mounting VM-400HDCPxl Connecting VM-400HDCPxl Acquiring and Setting Current EDID Forcing RGB Mode Upgrading Firmware Technical Specifications Default EDID Protocol 3000 Understanding Protocol 3000 Protocol 3000 Commands Result and Error Codes VM-400HDCPxl –... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Overview
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling. -
Page 5: Typical Applications
Medical market operation rooms and other critical multimedia applications. • Governmental market secured AV applications. • Rental and staging. Controlling your VM-400HDCPxl Control your VM-400HDCPxl via front panel push buttons or mini-USB serial commands transmitted by a laptop or PC. -

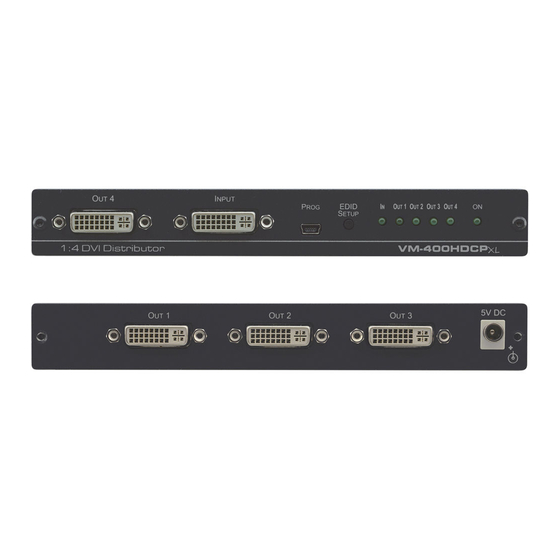

Page 6: Defining Vm-400Hdcpxl 1:4 Dvi Distributor
(via K-Upload) and work with the EDID Designer. K-Upload and EDID Designer can be downloaded from our website at: www.kramerav.com/manual/VM-400HDCPxl. To use the mini USB port, you need to download and install the Kramer USB driver from our website: www.kramerav.com/support/product_downloads.asp. -
Page 7: Mounting Vm-400Hdcpxl
Kramer Electronics Ltd. Mounting VM-400HDCPxl This section provides instructions for mounting VM-400HDCPxl. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F). -
Page 8: Connecting Vm-400Hdcpxl
Kramer Electronics Ltd. Connecting VM-400HDCPxl Always switch off the power to each device before connecting it to your VM-400HDCPxl. After connecting your VM-400HDCPxl, connect its power and then switch on the power to each device. Figure 2: Connecting to the... -
Page 9: Acquiring And Setting Current Edid
VM-400HDCPxl loads the default EDID. Acquiring a Custom EDID You can acquire a custom EDID, using the Kramer EDID designer, via the mini USB port on the front panel. To acquire a custom EDID: 1. Download EDID Designer to your PC from our website at Kramer EDID Designer. -
Page 10: Forcing Rgb Mode
Continue to acquire the desired EDID. View the force RGB Power cycle the unit. activation status: All output LEDs flash together once when in normal EDID mode, and four times when in Force RGB mode. VM-400HDCPxl – Connecting VM-400HDCPxl... -
Page 11: Upgrading Firmware
The latest version of K-UPLOAD and installation instructions can be downloaded from our website at: www.kramerav.com/support/product_downloads.asp. Note that in order to use the micro USB port, you need to install the Kramer USB driver, available at: www.kramerav.com/support/product_downloads.asp. VM-400HDCPxl – Upgrading Firmware... -
Page 12: Technical Specifications
34.5cm x 16.5cm x 5.2cm (13.6" x 6.5" x 2.1") W, D, H Net Weight 0.5kg (1.0lbs) approx. Shipping Weight 1.0kg (2.2lbs) approx. Accessories Included Power adapter Specifications are subject to change without notice at www.kramerav.com VM-400HDCPxl – Technical Specifications... -
Page 13: Default Edid
Front left/right center.. No Rear left/right center... No Rear LFE....No Report information Date generated... 19-Jan-12 Software revision..2.60.0.972 Data source....File Operating system..5.1.2600.2.Service Pack 3 Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,00,04,01,01,01,01,0A,13,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26, 10,50,54,A5,4B,00,81,80,A9,40,71,4F,01,01,01,01,01,01,01,01,01,01,01,1D,00,72,51,D0,1E,20,6E,28, 55,00,07,44,21,00,00,1E,00,00,00,FF,00,35,30,35,2D,37,30,37,34,35,35,30,31,30,00,00,00,FC,00,56, 4D,34,30,30,48,44,43,50,20,20,20,0A,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,01,74, 02,03,1B,F1,48,10,05,84,03,02,07,16,01,23,09,07,07,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47 VM-400HDCPxl – Technical Specifications... -
Page 14: Protocol 3000
Kramer Electronics Ltd. Protocol 3000 Kramer devices can be operated using Kramer Protocol 3000 commands sent via serial or Ethernet ports. Understanding Protocol 3000 Protocol 3000 commands are a sequence of ASCII letters, structured according to the following. • Command format:... -
Page 15: Protocol 3000 Commands
HDCP signal status of the 3 – OUT 3 HDMI source device connected 4 – OUT 4 HDMI to the specified input. status – Signal encryption status - valid values On/Off 0 – HDCP Off 1 – HDCP On VM-400HDCPxl – Protocol 3000... - Page 16 – Signal status according to #SIGNAL?1<CR> status FEEDBACK signal validation: ~nn@SIGNALinp_id,status<CR><LF> 0 – Off 1 – On – 14 decimal serial_number Get device serial COMMAND Get the device serial number: number. #SN?<CR> digits, factory assigned #SN?<CR> FEEDBACK ~nn@SNserial_number<CR><LF> VM-400HDCPxl – Protocol 3000...
-
Page 17: Result And Error Codes
(Reserved) ERR_RESERVED_8 (Reserved) ERR_RESERVED_9 (Reserved) ERR_RESERVED_10 (Reserved) ERR_RESERVED_11 (Reserved) ERR_RESERVED_12 (Reserved) ERR_EDID_CORRUPTED EDID corrupted ERR_NON_LISTED Device specific errors File has the same CRC – no changed ERR_SAME_CRC ERR_WRONG_MODE Wrong operation mode ERR_NOT_CONFIGURED Device/chip was not initialized VM-400HDCPxl – Protocol 3000... - Page 18 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 19 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
