Summary of Contents for Kramer VM-4HDCPxl
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VM-4HDCPxl 1:4 DVI Distributor... -
Page 2: Table Of Contents
Connecting a PC to the RS-232 Port for Programming Technical Specifications Figures Figure 1: VM-4HDCPxl 1:4 DVI Distributor Figure 2: Connecting a VM-4HDCPxl 1:4 DVI Distributor Figure 3: EDID Modes Figure 4: RS-232 Crossed Cable Connection Tables Table 1: VM-4HDCPxl 1:4 DVI Distributor Features... -
Page 3: Introduction
2 We recommend that you use only the power cord supplied with this device 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation: KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
) is a data-structure, provided by a display, to describe its capabilities to an HDCP source. The EDID enables the VM-4HDCPxl to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data. -
Page 6: Recommendations For Best Performance
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances and position your VM-4HDCPxl away from moisture, excessive sunlight and dust Your VM-4HDCPxl 1:4 DVI Distributor define the VM-4HDCPxl. -
Page 7: Figure 1: Vm-4Hdcpxl 1:4 Dvi Distributor

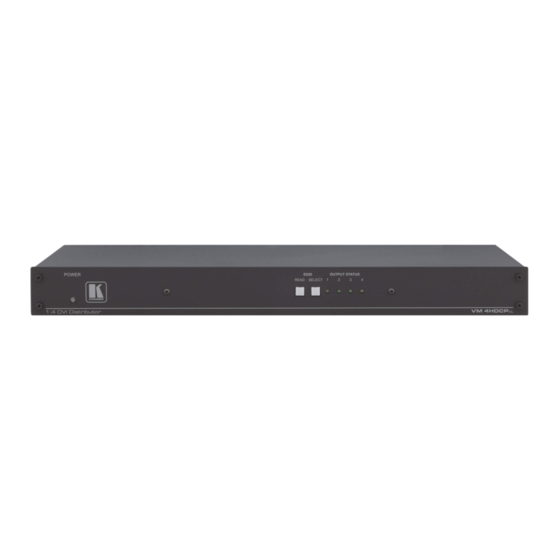

Your VM-4HDCPxl 1:4 DVI Distributor Figure 1: VM-4HDCPxl 1:4 DVI Distributor... -
Page 8: Installing In A Rack
Installing in a Rack Installing in a Rack This section provides instructions for rack mounting the unit. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Connecting The Vm-4Hdcpxl
4. Turn on the power and as needed, acquire the EDID (see section 7). Figure 2: Connecting a VM-4HDCPxl 1:4 DVI Distributor 1 Switch OFF the power on each device before connecting it to your VM-4HDCPxl. After connecting your VM-4HDCPxl, switch on its power and then switch on the power on each device... -
Page 10: Acquiring The Edid
Acquiring/Changing the EDID from One Output To acquire or change the EDID of one new output display: 1. Turn on the VM-4HDCPxl. 2. Connect the new output display device. 3. Press the EDID SELECT button to enter the ONE OUTPUT mode as... -
Page 11: Acquiring The Default Edid
This procedure should be performed by qualified personnel only. To use the RS-232 port for programming 1. Turn off the power and disconnect the power cord from the VM-4HDCPxl and then open the cover. 2. Locate the 3-pin jumper on the board 1 For firmware upgrade procedure go to our Web site at http://www.kramerelectronics.com... -
Page 12: Technical Specifications
Technical Specifications of the VM-4HDCPxl: Table 2 includes the technical specifications Table 2: VM-4HDCPxl Technical Specifications INPUT: 1 DVI, 1.2Vpp on a DVI Molex 24-pin (F) connector; DDC signal 5Vpp (TTL) OUTPUTS: 4 DVI, 1.2Vpp on DVI Molex 24-pin (F) connectors; DDC signal 5Vpp (TTL) BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel... - Page 13 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
