Kramer VM-4DT Quick Start Manual

VM-4DT Quick Start Guide
This guide helps you install and use your VM-4DT for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
VM-4DT 1:4 HDBT Distributor
4 Rubber feet

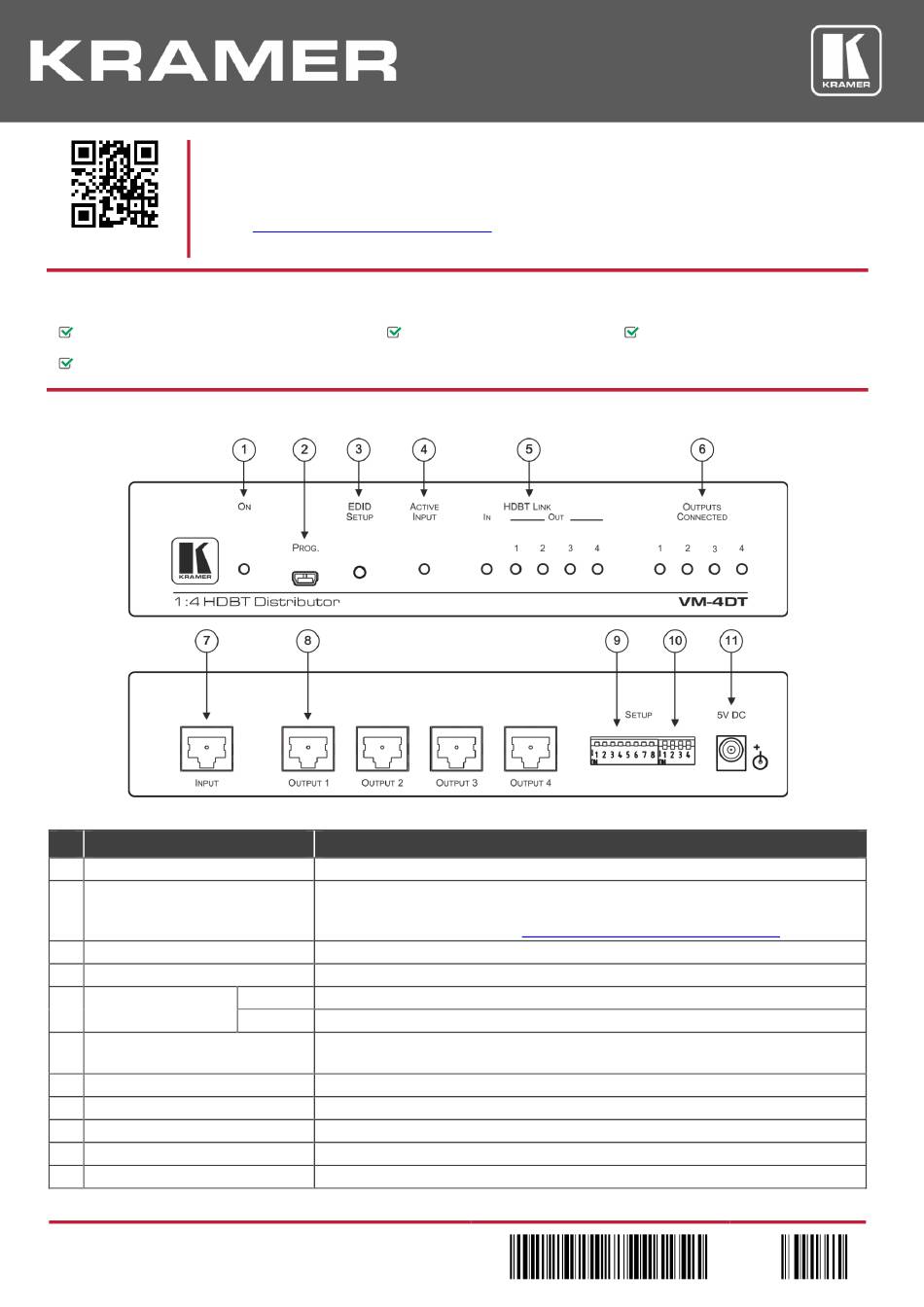

Step 2: Get to know your VM-4DT

# Feature
1 ON LED
2 PROGRAM Mini USB Connector
3 EDID SETUP Button
4 ACTIVE INPUT LED
HDBT LINK LEDs
5
6 OUTPUTS CONNECTED LEDs
7 INPUT HDBT Connector
8 HDBT OUT Connectors
9 SETUP 8-way DIP-switches
10 SETUP 4-way DIP-switch
11 5V DC
VM-4DT Quick Start (P/N: 2900-300799QS REV 1)
www.kramerav.com/downloads/VM-4DT
Function
Lights green when the unit receives power
Use to send RS-232 commands. Connect to a PC to perform firmware upgrades (via
K-Upload) and work with the EDID Designer. K-Upload and EDID Designer can be
downloaded from our Web site
Press to capture the input EDID, force RGB mode or select the default EDID
Lights green when an HDMI signal is embedded on the HDBaseT input
IN Lights green when a link is established with the HDBaseT transmitter
OUT Lights green when a link is established with the HDBaseT receiver (from 1 to 4)
Lights green when an acceptor (sink) is detected on the HDBaseT receiver connected to
the output (from 1 to 4)
Connects to an HDBaseT source, for example TP-580T
Connect to an HDBaseT acceptor (from 1 to 4), for example TP-580R
Use to set IR (DIP-switches 1-4) and RS-232 (DIP-switches 5-8) command behavior
For future use
+5V DC connector for powering the unit
to download the latest user manual and check if firmware
1 Power supply (5V DC)
at:www.kramerav.com/manual/EDID Designer
P/N:
2900- 300799QS
1 Quick start guide
Rev:
1
