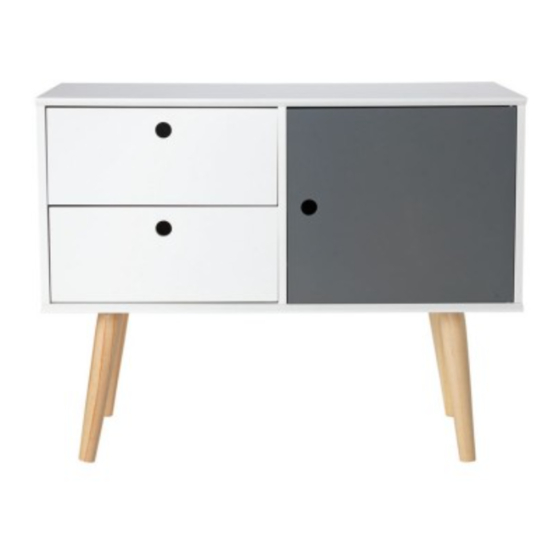

Alto Sideboard
Assembly lnstructions - Please keep for future reference
385/9715
hygena
Dimensions
Width - 90cm
Depth - 38cm
Height -70cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Issue 1-22-05-15
Advertisement
Related Manuals for Argos hygena 385/9715
Summary of Contents for Argos hygena 385/9715
- Page 1 Alto Sideboard Assembly lnstructions - Please keep for future reference 385/9715 hygena Dimensions Width - 90cm Depth - 38cm Height -70cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1-22-05-15...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not components and tools listed on to its final position (in the same recommend the pages 2 and 3. room) as possible. use of power Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 underside inside Side panel (left) Top panel Side panel (right) (37x37x1.5cm) (90x38x1.5cm) (37x37x1.5cm) underside Leg x 4 Divider Base panel (4.5/3x3cm) (37x36.6x1.5cm) (90x38x1.5cm) inside Drawer back panel x 2 Door... - Page 4 Components - Fittings 0345 6400 800 Wooden dowel x 12 (6X30mm) Small locking nut x 8 (15x9.5mm) Metal dowel x 20 Large locking nut x 12 (15x12mm) Screw x 23 (3x12mm) Drawer runner x 2 sets (L300mm) Screw x 20 (3x12mm) Wood screw x 8 (4x30mm) Metal bracket x4 Screw x 2 (2.5x14mm)
- Page 5 Assembly Instructions Preparing panels Place top panel , base panel , and drawer front panels flat onto the floor with the fixing holes facing up. Screw metal dowels into each panel as shown. Screw metal dowels as far as shown. Do not overtighten. Insert plastic hinge plugs into top panel and base...
- Page 6 Assembly Instructions Assembling door Fit door hinges to the top and bottom of door using screws as show. Fit metal plate onto door panel using screws Carefully locate door between left side panel divider , by inserting door hinge into plastic hinge plug on base panel Assembling top panel...
- Page 7 Assembly Instructions Assembling drawer runners Attach one half of drawer runners onto side panel and divider shown. Secure with screws Note: the correct fixing hole positions are shown on the drawings. Assembling back panel With help, carefully turn the unit onto it’s front. Place back panel into the recess around the back of the...
- Page 8 Assembly Instructions Preparing base Secure metal brackets base panel using screws Attaching legs Screw legs onto metal brackets until they are secure. Do not overtighten.
- Page 9 Assembly Instructions align grooves Assembling drawers Locate drawer side panels onto drawer front panel Note: Ensure all grooves are correctly located at the bottom. Insert small locking nuts into drawer side panels . Turn locking nuts clockwise to secure. Slide drawer base panel into the groove.
