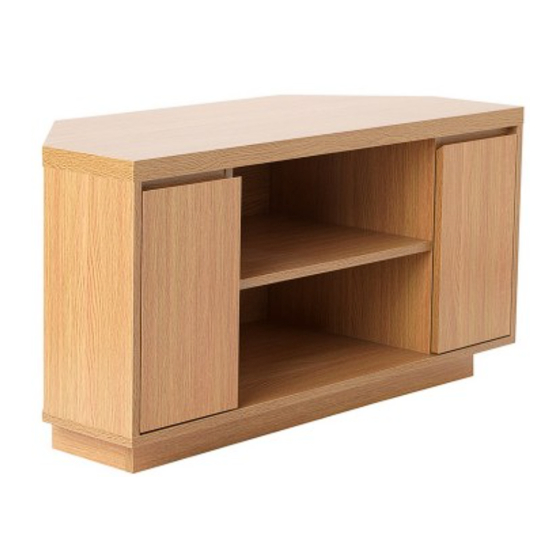

Corner TV Unit with 2 Doors
Assembly Instructions
Dimensions
Width - 92cm
Depth - 39.5cm
Height - 48cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Please keep for future reference
-
-
389/6039
Version 1 Date: 27/04/15
Advertisement
Related Manuals for Argos 389/6039
Summary of Contents for Argos 389/6039
- Page 1 Width - 92cm Depth - 39.5cm Height - 48cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 1 Date: 27/04/15...
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages. - Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Finished front edge Top panel (92 x 39cm) Middle shelf panel (48 x 37cm)
-
Page 4: Tools Required
Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 30mm Dowel x 6 50mm Screw x 14 40mm Screw x 4 (This screw is included in... - Page 5 Assembly Instructions Step 1 Attaching the middle shelf panel Unfinished back edge Insert Dowels into the Middle left panel and Middle right panel Use Screws to fix the Middle left panel Middle right panel onto the Middle shelf panel Step 2 Attaching top panel Screw Locking pins into the Top panel...
- Page 6 Assembly Instructions Step 3 Attaching left and right panels Use Screws to fix the Door hinges ‘back plates’ onto the Right panel and Left panel Carefully locate the Right panel and Left panel onto the unit. Insert 4 Locking nuts into the unit.
- Page 7 Assembly Instructions Step 4 Finished front surface Attaching small back panels Slide small back panels into the unit. Step 5 Attaching bottom panel Use Screws to fix Plastic supports onto the Front panel Insert Dowels into Right side support Left side support Carefully locate the Right side support Left side support...
- Page 8 Assembly Instructions Step continued Use Screws to fix the Bottom panel onto the Right side support and Left side support Use Screws to fix Front panel onto the Bottom panel Use Screws to fix Foot onto the Bottom panel Use Screws to fix the Bottom panel onto the unit.
- Page 9 Assembly Instructions Step 6 Unfinished back Fixing large back panel surface Attach large back panel using nails Important: The unit MUST be ‘square’ when back is attached. Step 7 Attaching shelf panels With help, carefully stand the unit upright. Warning: The unit is heavy.
- Page 10 Assembly Instructions Step 8 Attaching hinges to doors Fix 4 Door hinges Left door panel Right door panel using Screws Tear off the protective backing from the Door Pads Carefully stick the Door pads onto the Left door panel and Right door panel Step 9 Hanging doors...
- Page 11 Assembly Instructions Step 10 Hinge adjustment To move doors up or down: loosen screws shown and move doors to suit. Once doors are aligned, re-tighten Screws Door To move doors in or out: loosen screw shown and move doors to suit. Re-tighten screws.
- Page 12 Note: to ask someone to help you at this stage. With help, place the unit in the intended position. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
