5. 12. 2019

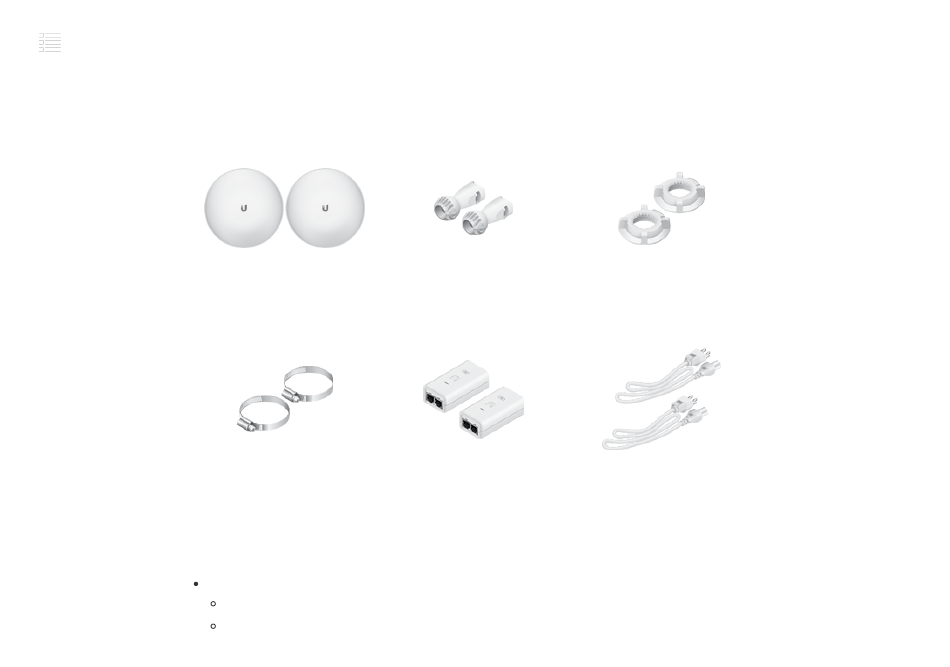

Package Contents
System Requirements
https://dl.ubnt.com/qsg/UBB/UBB_EN.html
UBB (Qty. 2)
Metal Strap (Qty. 2)
Gigabit PoE (48V, 0.32A) with
One of the following:
UniFi Cloud Key (1.0.5 or newer) or UniFi Dream Machine (1.0.1 or newer)
Linux, Mac OS X, or Microsoft Windows 7/8/10
UBB Quick Start Guide
UBB Quick Start Guide
Ball Joint Mount (Qty. 2)
Mounting Bracket (Qty. 2)
Lock Ring (Qty. 2)
Power Cord (Qty. 2)
1/33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniFi UBB and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UniFi UBB

Summary of Contents for Ubiquiti UniFi UBB

  • Page 1 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Package Contents UBB (Qty. 2) Ball Joint Mount (Qty. 2) Lock Ring (Qty. 2) Metal Strap (Qty. 2) Gigabit PoE (48V, 0.32A) with Power Cord (Qty. 2) Mounting Bracket (Qty. 2) System Requirements One of the following: UniFi Cloud Key (1.0.5 or newer) or UniFi Dream Machine (1.0.1 or newer)

  • Page 2: Installation Requirements

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP-G2, one near the device and the other at the entry point to the building.

  • Page 3: Hardware Overview

    5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Hardware Overview https://dl.ubnt.com/qsg/UBB/UBB_EN.html 3/33...
  • Page 4 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide System LED https://dl.ubnt.com/qsg/UBB/UBB_EN.html 4/33...
  • Page 5 5. 12. 2019 UBB Quick Start Guide Flashing White Initializing. UBB Quick Start Guide White Factory defaults, waiting for integration. Device is busy; do not touch or unplug it. This usually Alternating White/Blue indicates that a process such as a firmware upgrade is taking place.
  • Page 6 5. 12. 2019 UBB Quick Start Guide DHCP server via the wireless link to the local UBB radio. UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 6/33...
  • Page 7 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 7/33...

  • Page 8: Hardware Installation

    5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Hardware Installation For each UBB radio, go to the appropriate mounting instructions: Pole Mounting or “Wall Mounting”. Pole-Mounting https://dl.ubnt.com/qsg/UBB/UBB_EN.html 8/33...
  • Page 9 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 9/33...
  • Page 10 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 10/33...

  • Page 11: Wall Mounting

    5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Wall Mounting The device must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam®...
  • Page 12 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 12/33...
  • Page 13 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 13/33...
  • Page 14 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide NanoBeam Wall Mount Kit Fastener (not included) https://dl.ubnt.com/qsg/UBB/UBB_EN.html 14/33...
  • Page 15 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Aiming Visually aim the UBB radios at each other: https://dl.ubnt.com/qsg/UBB/UBB_EN.html 15/33...
  • Page 16 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 16/33...

  • Page 17: Connecting Power

    5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Connecting Power For each UBB radio: https://dl.ubnt.com/qsg/UBB/UBB_EN.html 17/33...
  • Page 18 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 18/33...
  • Page 19 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 19/33...
  • Page 20 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide WARNING: The switch port must comply with the power specifications listed in the Specifications section of this Quick Start Guide. https://dl.ubnt.com/qsg/UBB/UBB_EN.html 20/33...
  • Page 21 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Optional https://dl.ubnt.com/qsg/UBB/UBB_EN.html 21/33...
  • Page 22 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Adopting the UBB The UBB radios are pre-paired. For each UBB radio, you have the following options: “Using the UniFi Network App” “Using the UniFi Network Software” Note: If a link is lost due to configuration changes, you can reset both UBB radios to re-establish the link.
  • Page 23 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 23/33...
  • Page 24 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide https://dl.ubnt.com/qsg/UBB/UBB_EN.html 24/33...
  • Page 25 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide 5. The System LED will turn blue to confirm that it has been successfully adopted. Using the UniFi Network Software 1. From the UniFi Network Controller dashboard, click Devices in the left menu bar. https://dl.ubnt.com/qsg/UBB/UBB_EN.html 25/33...
  • Page 26 5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide 2. On the Devices screen, locate the UBB in the list of devices under the Model column. To adopt the UBB, click Adopt. https://dl.ubnt.com/qsg/UBB/UBB_EN.html 26/33...

  • Page 27: Specifications

    5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide 3. The System LED will turn blue to confirm that it has been successfully adopted. Specifications Dimensions 140 x 140 x 90 mm (5.51 x 5.51 x 3.54") Weight 376 g (13.3 oz) Antenna Gain 2.4 GHz (BLE)

  • Page 28: Safety Notices

    5. 12. 2019 UBB Quick Start Guide UBB Quick Start Guide Power Method 802.3af Supported Passive Power over Ethernet (48V) Power Supply UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included) Max. Power Consumption Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) Mounting...

  • Page 29: Electrical Safety Information

    5. 12. 2019 UBB Quick Start Guide 1. Read, follow, and keep these instructions. UBB Quick Start Guide 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 30 5. 12. 2019 UBB Quick Start Guide ui.com/support/warranty UBB Quick Start Guide The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 31: Important Note

    5. 12. 2019 UBB Quick Start Guide This radio transmitter has been approved by ISED Canada. UBB Quick Start Guide The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence.

  • Page 32: Australia And New Zealand

    5. 12. 2019 UBB Quick Start Guide Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait UBB Quick Start Guide une distance minimale de 20 cm entre l’élément rayonnant et vous. Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur, et ne doit être utilisé...

  • Page 33: Weee Compliance Statement

    All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm. Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Online Resources © 2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/UBB/UBB_EN.html 33/33...
