Summary of Contents for Ubiquiti UniFi UAP-AC-LITE

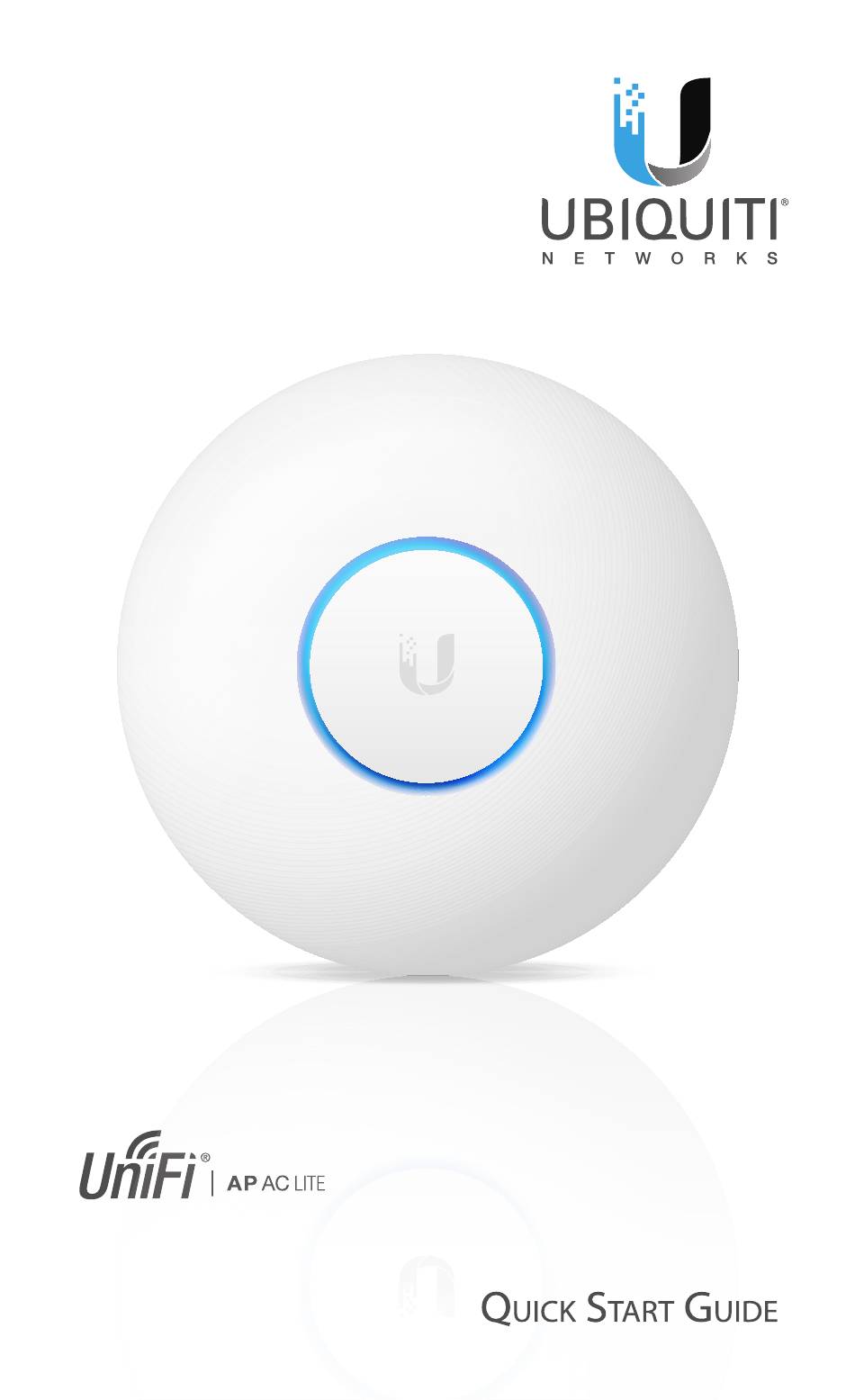

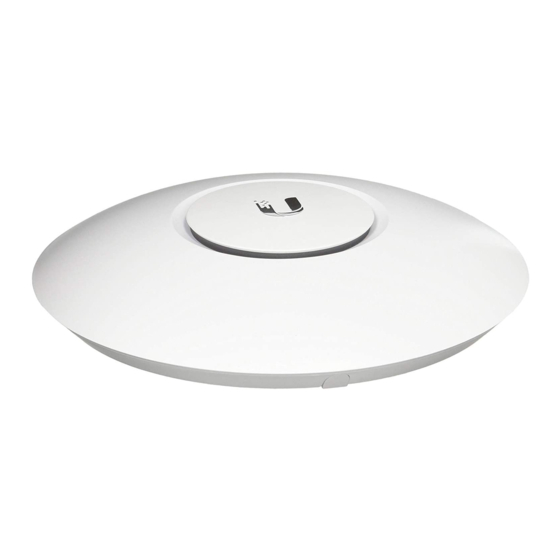

- Page 1 802.11ac Dual Radio Access Point Model: UAP-AC-LITE...
-
Page 2: Package Contents
• Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed) • Cat5/6 UTP cable for indoor installations TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™... -
Page 3: System Requirements
System Requirements • Linux, Mac OS X, or Microsoft Windows 7/8/10 • Java Runtime Environment 1.8 (or above) • Web Browser: Google Chrome (Other browsers may have limited functionality). • UniFi Controller software v5.4 or newer (available at: www.ubnt.com/download/unifi) Network Topology Requirements •... -
Page 4: Hardware Overview
Hardware Overview LED Color Status Factory default, waiting to be integrated. White Initializing. Flashing White Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Indicates the device has been successfully Blue integrated into a network and is working... - Page 5 This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by a Ubiquiti Networks UniFi Switch with PoE or Gigabit PoE adapter (included with single-pack only).
-
Page 6: Mounting Bracket
Mounting Bracket Locking Tab Mounting Bracket Locking Tab During installation, the Locking Tab on the Mounting Bracket moves from the Initial Position to the Final Position, where the Locking Tab fits securely into the Locking Notch on the UniFi AP to help prevent theft. Initial Position Final Position Slot... -
Page 7: Hardware Installation
Hardware Installation The UniFi AP can be mounted on the wall or ceiling. Perform the steps for the appropriate installation: Wall Mount 1. Position the Mounting Bracket at the desired location on the wall with the arrow pointing up. 2. Use a pencil to mark the four mounting holes. Use a 6 mm drill bit to drill the mounting holes. - Page 8 4. Insert the Screw Anchors into the 6 mm holes. Secure the Mounting Bracket to the wall by inserting the Screws into the anchors. 5. If the Ethernet cable runs along the mounting surface, remove the Cable Feed Plug.
- Page 9 6. Connect the Ethernet cable to the Ethernet port. 7. Align the arrow on the UniFi AP with the arrow on the Locking Tab of the Mounting Bracket. Locking Tab Arrow...
- Page 10 8. Ensure that the UniFi AP is firmly seated on the Mounting Bracket. Turn the UniFi AP clockwise until it locks into place and the Locking Tab fits securely into the Locking Notch.
-
Page 11: Ceiling Mount
Ceiling Mount 1. Remove the ceiling tile. 2. Place the Ceiling Backing Plate in the center of the ceiling tile. Mark the four mounting screw holes. 3. Mark a hole approximately 18 mm in diameter for the Ethernet cable feed. 25 mm Note: 25 mm is the distance from the center of the... - Page 12 5. Insert the Flat Head Screws through the Mounting Bracket, ceiling tile, and Ceiling Backing Plate. Fasten the screws using the Keps Nuts. Then feed the Ethernet cable through the 18 mm hole.
- Page 13 6. Connect the Ethernet cable to the Ethernet port. 7. Align the arrow on the UniFi AP with the arrow on the Locking Tab of the Mounting Bracket. Locking Tab Arrow...
- Page 14 8. Ensure that the UniFi AP is firmly seated on the Mounting Bracket. Turn the UniFi AP clockwise until it locks into place and the Locking Tab fits securely into the Locking Notch. 9. Set the ceiling tile back into place. Powering the UniFi AP Use a UniFi Switch with PoE or a Gigabit PoE adapter for power.
-
Page 15: Connecting Power Over Ethernet
Connecting Power over Ethernet The single-pack of the UAP-AC-LITE includes one Gigabit PoE adapter. For multi-pack units, we recommend using a UniFi Switch with PoE. 1. Connect the Ethernet cable from the device to the adapter’s POE port. 2. Connect an Ethernet cable from your LAN to the adapter’s LAN port. -
Page 16: Software Installation
UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide. Mobile App Installation Ubiquiti Networks also offers the UniFi mobile app, which is available from the App Store (iOS) or Google Play Store ™... -
Page 17: Specifications
Specifications UniFi AP AC Lite Dimensions 160 x 160 x 31.45 mm (6.3 x 6.3 x 1.24") Weight 170 g (6.0 oz) With Mounting Kits 185 g (6.5 oz) Networking Interface (1) 10/100/1000 Ethernet Port Buttons (1) Reset to Defaults Power Method Passive PoE (Pairs 4, 5+;... -
Page 18: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 19: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 20: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 21 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
- Page 22 ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A-UAPACL) has been approved by ISED Canada.
-
Page 23: Australia And New Zealand
Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Brazil Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. - Page 24 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 25 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 26: Declaration Of Conformity
Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að UAP-AC-LITE er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance... - Page 27 UAP-AC-LITE atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: www.ubnt.com/compliance Malti [Maltese] B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju UAP-AC- LITE huwa konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn www.ubnt.com/compliance Norsk [Norwegian] UBIQUITI NETWORKS erklærer herved at utstyret UAP-AC-LITE er i...
- Page 28 . u b n t . c o m ©2016-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc.
