Ubiquiti UniFi UAP-AC-LR Quick Start Manual
  1. Manuals
  2. Brands
  3. Ubiquiti Manuals
  4. Wireless Access Point
  5. UniFi UAP-AC-LR
  6. Quick start manual

Ubiquiti UniFi UAP-AC-LR Quick Start Manual

Hide thumbs Also See for UniFi UAP-AC-LR:
Table of Contents

Advertisement

Quick Links

4/15/2021

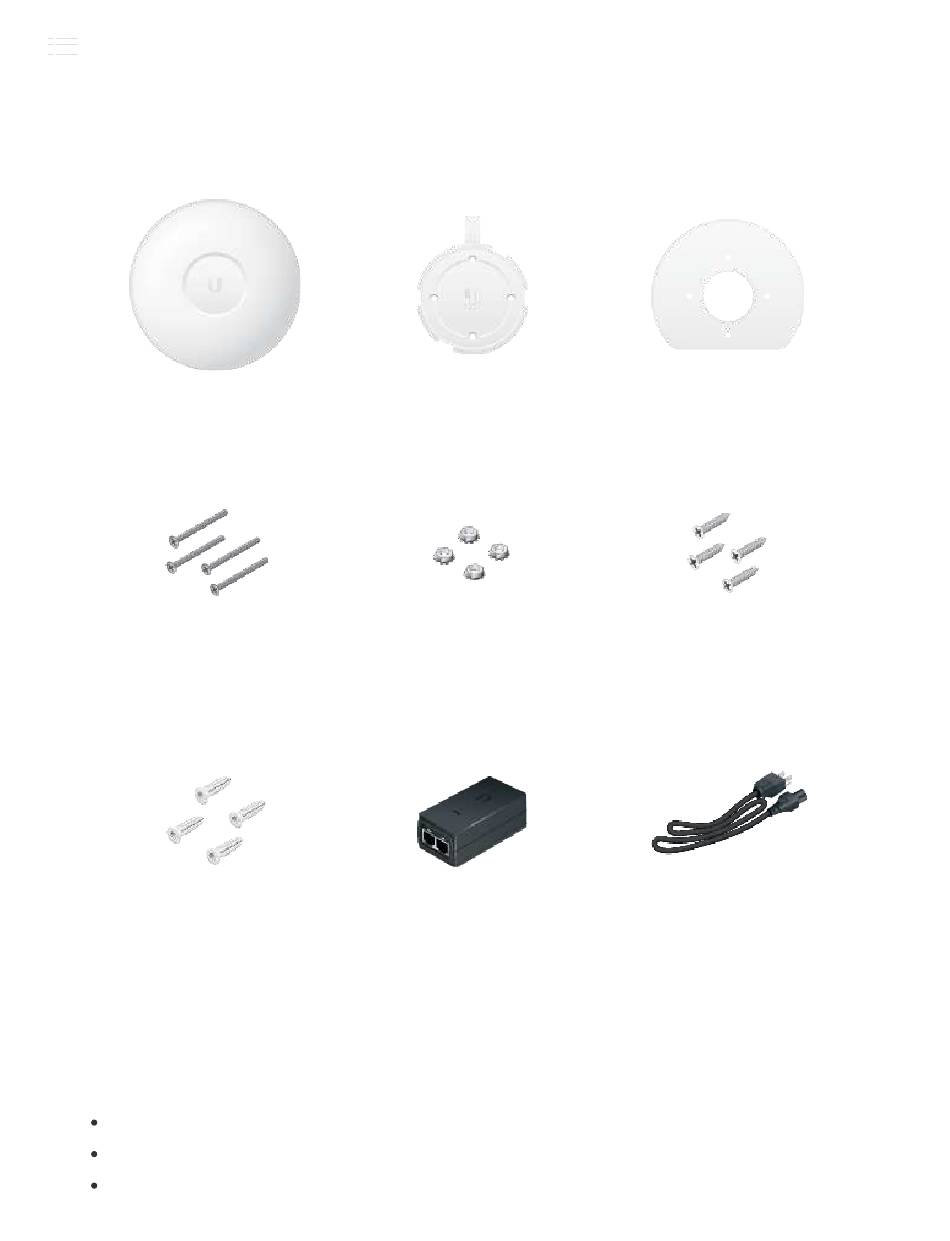

Package Contents
UniFi AP AC LR
Flat Head Screws (Qty. 4)
Screw Anchors (Qty. 4)
* Included only in the single-pack of the UAP-AC-LR.
Installation Requirements
CAT5/6 cable
Phillips screwdriver
Drill and drill bit (6 mm for wall-mounting or 3 mm for ceiling-mounting)
https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html
UAP-AC-LR Quick Start Guide
UAP-AC-LR Quick Start Guide
Mounting Bracket
Keps Nuts (Qty. 4)
Gigabit PoE* (24V, 0.5A) with
Mounting Bracket
Ceiling Backing Plate
Screws (Qty. 4)
Power Cord*
1/25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniFi UAP-AC-LR and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UniFi UAP-AC-LR

Summary of Contents for Ubiquiti UniFi UAP-AC-LR

  • Page 1 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide Package Contents UniFi AP AC LR Mounting Bracket Ceiling Backing Plate Flat Head Screws (Qty. 4) Keps Nuts (Qty. 4) Screws (Qty. 4) Screw Anchors (Qty. 4) Gigabit PoE* (24V, 0.5A) with Power Cord* Mounting Bracket * Included only in the single-pack of the UAP-AC-LR.

  • Page 2: System Requirements

    4/15/2021 UAP-AC-LR Quick Start Guide Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed) UAP-AC-LR Quick Start Guide IMPORTANT: The UAP-AC-LR requires the UniFi Controller v4.7 or higher, available at: ui.com/download/unifi System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Google Chrome (Other browsers may have limited functionality.) UniFi Controller software v4.7 or higher (available at: ui.com/download/unifi)

  • Page 3: Mounting Bracket

    4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide The Locking Notch will be used with the Mounting Bracket to help secure the UniFi AP. (This is described further in the Mounting Bracket section.) Ethernet This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server.

  • Page 4: Hardware Installation

    4/15/2021 UAP-AC-LR Quick Start Guide During installation, the Locking Tab on the Mounting Bracket moves from the UAP-AC-LR Quick Start Guide Initial Position to the Final Position, where the Locking Tab fits securely into the Locking Notch on the UniFi AP to help prevent theft. Initial Position Final Position Note:...
  • Page 5 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 5/25...
  • Page 6 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide Optional https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 6/25...
  • Page 7 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 7/25...
  • Page 8 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 8/25...
  • Page 9 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 9/25...
  • Page 10 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide Optional https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 10/25...
  • Page 11 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 11/25...

  • Page 12: Ceiling Mount

    4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide Ceiling Mount https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 12/25...
  • Page 13 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 13/25...
  • Page 14 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 14/25...
  • Page 15 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 15/25...
  • Page 16 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 16/25...
  • Page 17 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 17/25...
  • Page 18 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide Powering the UniFi AP Use a UniFi Switch with PoE or a Gigabit PoE adapter for power. Connecting to a UniFi Switch with PoE Connect the Ethernet cable from the UniFi AP directly to a PoE port on the UniFi Switch with PoE.
  • Page 19 4/15/2021 UAP-AC-LR Quick Start Guide UAP-AC-LR Quick Start Guide UniFi Switch with PoE Power Connection Diagram Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the PoE adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the PoE adapter. 3.

  • Page 20: Software Installation

    Controller software, refer to the User Guide. Mobile App Installation Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google Play™ Store (Android). You can use it to provision a UniFi AP for basic functionality without configuring a UniFi Controller.

  • Page 21: Specifications

    4/15/2021 UAP-AC-LR Quick Start Guide provisioning of APs for remote controllers (controllers not on the same Layer 2 UAP-AC-LR Quick Start Guide network) and easy access to local controllers and those monitored on unifi.ui.com Specifications UAP-AC-LR Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") Weight 240 g (8.5 oz)

  • Page 22: Safety Notices

    4/15/2021 UAP-AC-LR Quick Start Guide Operating Frequency (MHz) Operating Frequency (MHz) UAP-AC-LR Quick Start Guide US/CA 2400 - 2483.5 U-NII-1 5150 - 5250 U-NII-2A 5250 - 5350 U-NII-2C 5470 - 5725 U-NII-3 5725 - 5850 Worldwide 2400 - 2483.5 5150 - 5875 Safety Notices 1.

  • Page 23: Limited Warranty

    4/15/2021 UAP-AC-LR Quick Start Guide Limited Warranty UAP-AC-LR Quick Start Guide ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 24 4/15/2021 UAP-AC-LR Quick Start Guide 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est UAP-AC-LR Quick Start Guide susceptible d’en compromettre le fonctionnement. Le présent émetteur radio a été approuvé par ISDE Canada. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à...

  • Page 25: Weee Compliance Statement

    Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/UAP-AC-LR/UAP-AC-LR_EN.html 25/25...
