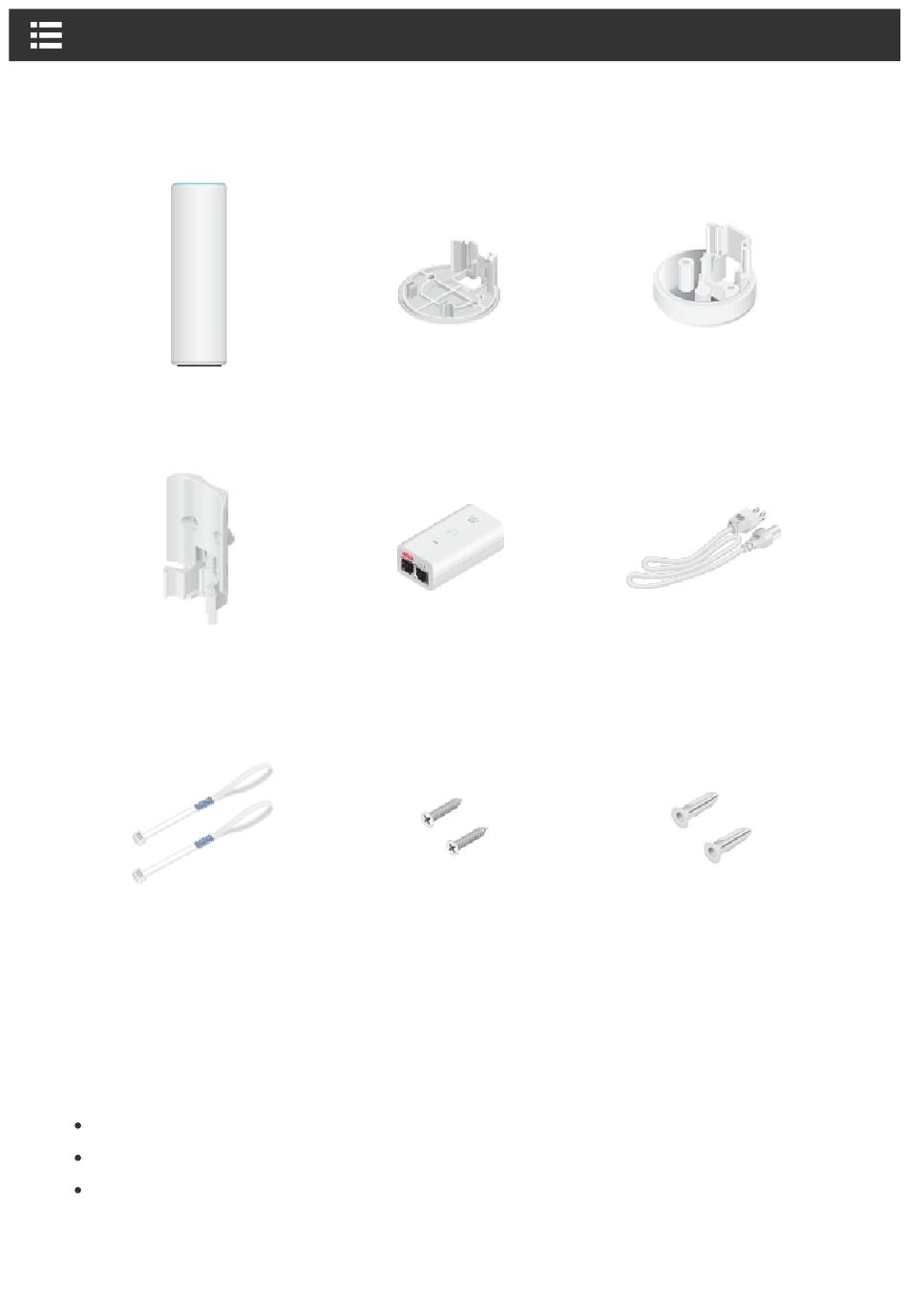

Package Contents
UniFi AP FlexHD
Wall/Pole Mount
Zip Ties (Qty. 2)
* Included only in the single-pack of the UAP-FlexHD
Installation Requirements
Phillips screwdriver
Cat5/6 UTP cable for indoor installations
Shielded Category 5 (or above) cabling should be used for all outdoor wired
Ethernet connections and should be grounded through the AC ground of the
PoE.
System Requirements
UAP-FlexHD Quick Start Guide
Base Mount
PoE Adapter* (48V, 0.32A)
Screws (Qty. 2)
Outdoor Mount
Power Cord
Screw Anchors (Qty. 2)
