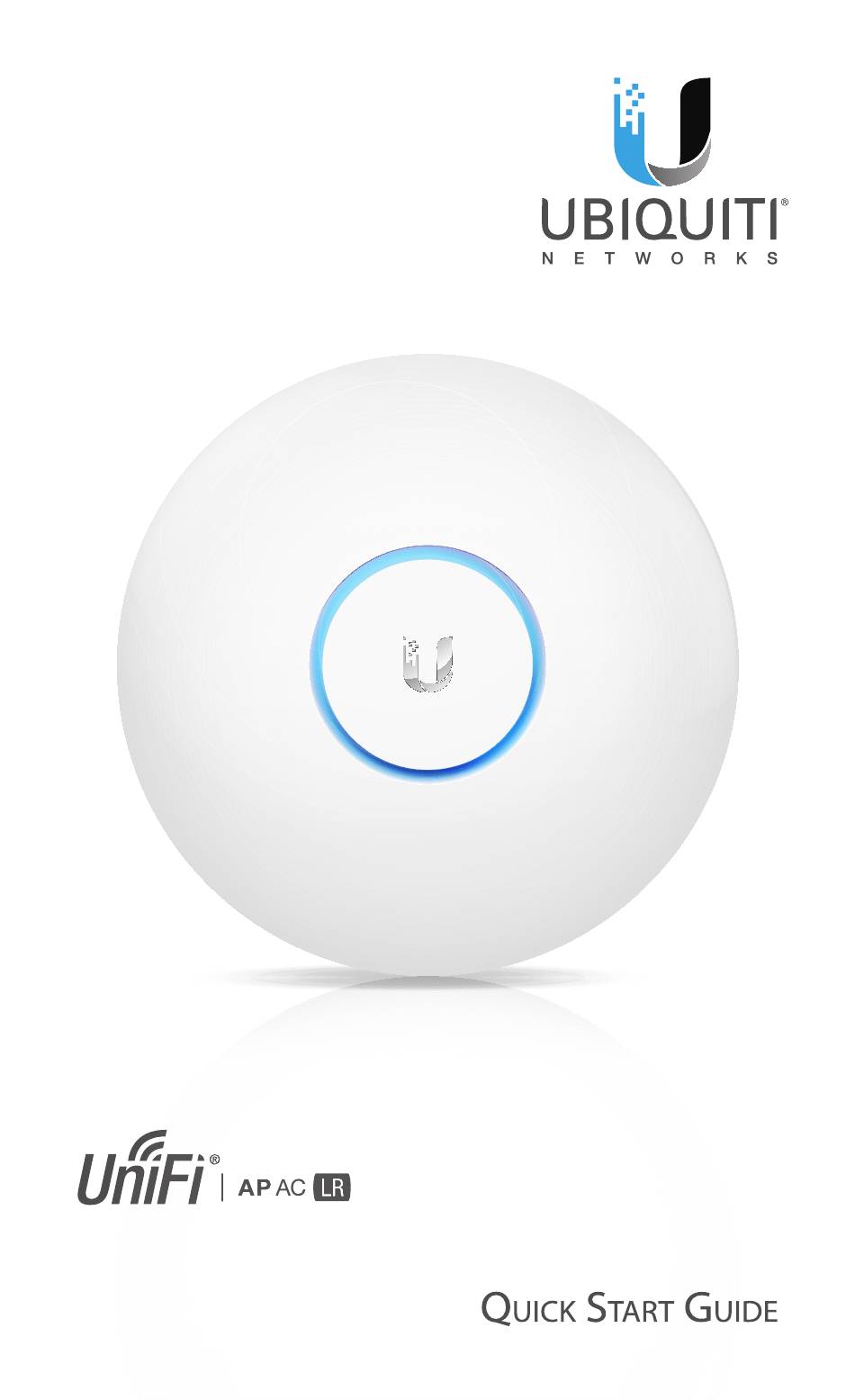

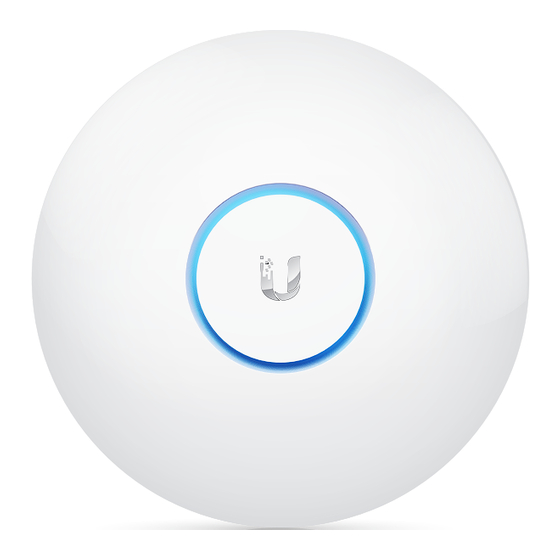

- Page 1 802.11ac Dual-Radio Long Range Access Point Model: UAP-AC-LR...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® AP. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. IMPORTANT: The UAP-AC-LR requires the UniFi Controller v4.7 or higher, available at: downloads.ubnt.com/unifi Package Contents... -
Page 3: System Requirements
0.6 Mbps msec 0.4 Mbps msec 0.2 Mbps Mbps msec 24 HRS 12 HRS DEVICES CLIENTS DEEP PACKET INSPECTION Ubiquiti Streaming Media 6.49 GB NestLabs Network Protocols 3.44 GB 13.2 GB Google Web / Web 2.0 921 MB Desktop/Laptop Security Update... -
Page 4: Hardware Overview
Hardware Overview LED Color Status Factory default, waiting to be integrated. White Initializing. Flashing White Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Indicates the device has been successfully Blue integrated into a network and is working... - Page 5 Ethernet This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by a Ubiquiti Networks UniFi Switch with PoE or Gigabit PoE adapter (included with single-pack only).
-
Page 6: Mounting Bracket
Mounting Bracket Locking Tab Mounting Bracket Locking Tab During installation, the Locking Tab on the Mounting Bracket moves from the Initial Position to the Final Position, where the Locking Tab fits securely into the Locking Notch on the UniFi AP to help prevent theft. Initial Position Final Position Slot... -
Page 7: Hardware Installation
Hardware Installation The UniFi AP can be mounted on the wall or ceiling. Perform the steps for the appropriate installation: Wall Mount 1. Position the Mounting Bracket at the desired location on the wall with the arrow pointing up. 2. Use a pencil to mark the four mounting holes. Use a 6 mm drill bit to drill the mounting holes. - Page 8 4. Insert the Screw Anchors into the 6 mm holes. Secure the Mounting Bracket to the wall by inserting the Screws into the anchors. 5. If the Ethernet cable runs along the mounting surface, then remove the Cable Feed Plug.
- Page 9 6. Connect the Ethernet cable to the Ethernet port. 7. Align the arrow on the UniFi AP with the arrow on the Locking Tab of the Mounting Bracket. Locking Tab Arrow...
- Page 10 8. Ensure that the UniFi AP is firmly seated on the Mounting Bracket. Turn the UniFi AP clockwise until it locks into place and the Locking Tab fits securely into the Locking Notch.
-
Page 11: Ceiling Mount
Ceiling Mount 1. Remove the ceiling tile. 2. Place the Ceiling Backing Plate in the center of the ceiling tile. Mark the four mounting screw holes. 3. Mark a hole approximately 18 mm in diameter for the Ethernet cable feed. 25 mm Note: 25 mm is the distance from the center of the... - Page 12 5. Insert the Flat Head Screws through the Mounting Bracket, ceiling tile, and Ceiling Backing Plate. Fasten the screws using the Keps Nuts. Then feed the Ethernet cable through the 18 mm hole.
- Page 13 6. Connect the Ethernet cable to the Ethernet port. 7. Align the arrow on the UniFi AP with the arrow on the Locking Tab of the Mounting Bracket. Locking Tab Arrow...
- Page 14 8. Ensure that the UniFi AP is firmly seated on the Mounting Bracket. Turn the UniFi AP clockwise until it locks into place and the Locking Tab fits securely into the Locking Notch. 9. Set the ceiling tile back into place. Powering the UniFi AP Use a UniFi Switch with PoE or a Gigabit PoE adapter for power.
-
Page 15: Connecting Power Over Ethernet
Connecting Power over Ethernet The single-pack of the UAP-AC-LR includes one Gigabit PoE adapter. For multi-pack units, we recommend using a UniFi Switch. 1. Connect the Ethernet cable from the UniFi AP to the adapter’s POE port. 2. Connect an Ethernet cable from your LAN to the adapter’s LAN port. -
Page 16: Software Installation
Software Installation Download and install the latest version of the UniFi Controller software at: downloads.ubnt.com/unifi Launch the software and follow the on-screen instructions. Step-by-step instructions are available in the User Guide located on our website: documentation.ubnt.com/unifi After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. -
Page 17: Specifications
Specifications UAP-AC-LR Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") Weight 240 g (8.5 oz) With Mounting Kits 315 g (11.1 oz) Networking Interface (1) 10/100/1000 Ethernet Port Buttons Reset Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Power Supply 24V, 0.5A PoE Gigabit Adapter Max. -
Page 18: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 19: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 20: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 21 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 22: Industry Canada
This radio transmitter FCC ID: SWX-UAPACLR has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. -
Page 23: Rf Exposure Warning
Cet émetteur radio (IC: 6545A-UAPACLR) a été approuvée par Industrie Canada pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué... - Page 24 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 25 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 26: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. - Page 27 NETWORKS zariadenie, je v súlade so základnými požiadavkami a [Slovak] ďalšími relevantnými ustanoveniami smernice 1999/5/ES. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
- Page 28 . u b n t . c o m ©2015-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
