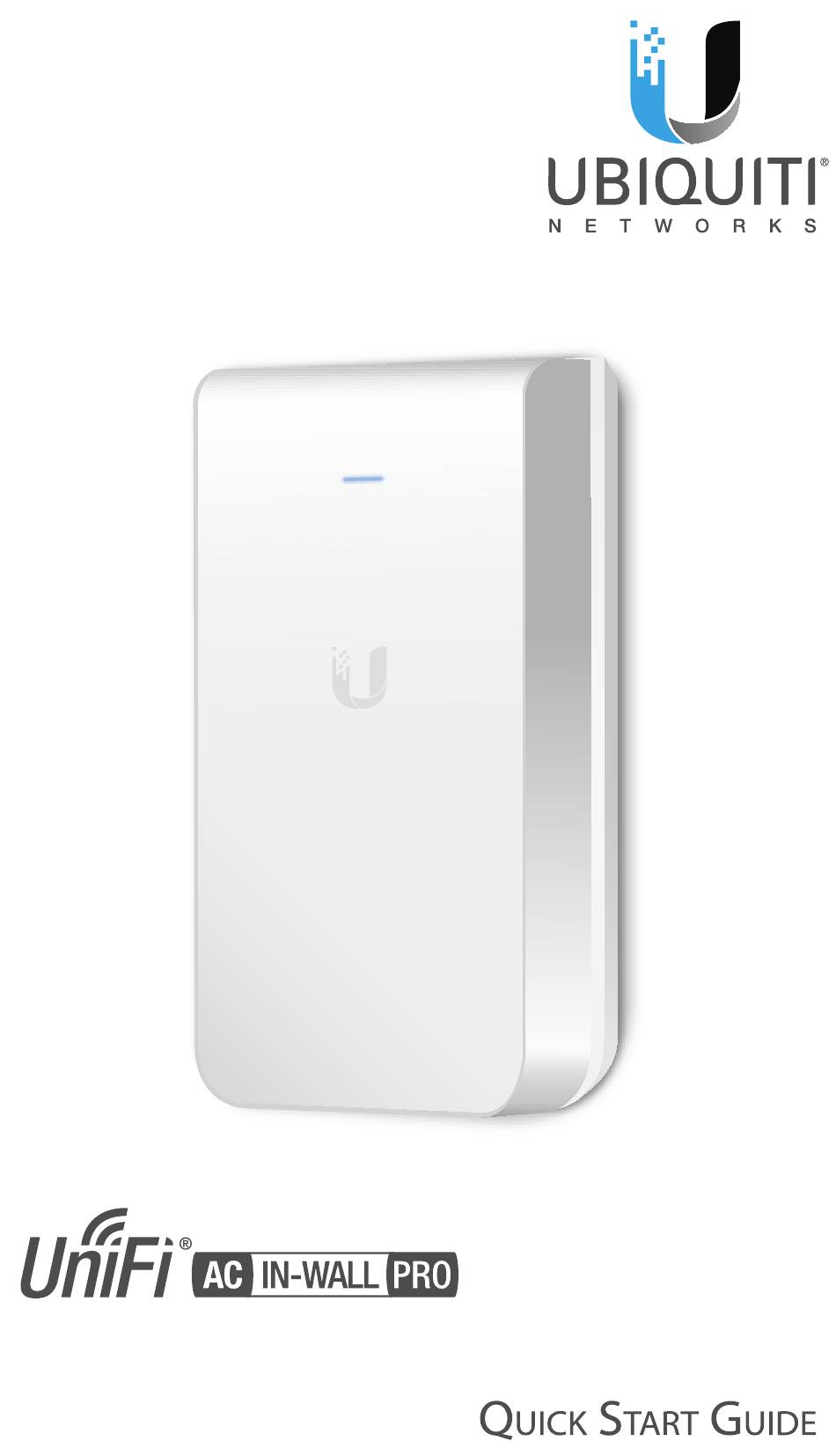

- Page 1 In-Wall 802.11ac Pro Wi-Fi Access Point Model: UAP-AC-IW-PRO...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® AC In‑Wall Pro Wi‑Fi Access Point. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. IMPORTANT: UniFi Controller v5.4 is recommended for managing the UAP‑AC‑IW‑PRO and is available for download at: www.ubnt.com/download/unifi... -
Page 3: System Requirements
System Requirements • Linux, Mac OS X, or Microsoft Windows 7/8/10 • Java Runtime Environment 1.6 (1.8 or newer recommended) • Web Browser: Google Chrome (Other browsers may have limited functionality.) • UniFi Controller software v5.4 or newer (available at: www.ubnt.com/download/unifi) Network Topology Requirements •... -
Page 4: Hardware Overview
Hardware Overview Back Panel PoE In + Data PoE In + Data 10/100/1000 Ethernet port supports data and 802.3at PoE+ input. The UAP‑AC‑IW‑PRO itself requires 10W. 802.3at PoE+ input is required to use PoE passthrough. Connect this port to a UniFi Switch with PoE that is connected to your LAN and DHCP server. -
Page 5: Bottom Panel
Bottom Panel PoE Out Data + Data Security Screw Reset PoE Out + Data 10/100/1000 Ethernet port supports data and PoE passthrough (requires 802.3at PoE+ input). The maximum PoE passthrough output is 12W. Note: To power and connect an 802.3af device to the LAN, you must use 802.3at PoE+ input. - Page 6 Color State Status Flashing Initializing. White Steady Factory defaults, waiting for integration. White/ Alternating Device is busy; do not touch or Blue unplug it. This usually indicates that a process such as a firmware upgrade is taking place. Steady Successfully integrated into a network and working properly.
-
Page 7: Security Tab
Security Tab In addition to the optional Security Screw, the Security Tab helps to secure the Cover Plate after installation. If you need to remove it, use a flathead screwdriver to depress the Security Tab while detaching the Cover Plate: Security Tab... -
Page 8: Back Plate
Back Plate The Back Plate offers a variety of mounting holes for use with different wall boxes. Here are a few examples with the appropriate mounting holes outlined in blue: USA or China Europe... -
Page 9: Hardware Installation
Hardware Installation An electrical wall box should be pre‑installed with an Ethernet cable running from the box to a UniFi Switch with PoE. 1. Detach the UAP‑AC‑IW‑PRO from the Back Plate. 2. Pull the Ethernet cable through the Back Plate, and attach the Back Plate to the wall box using the Wall‑Mount Screws. - Page 10 3. Connect the Ethernet cable in the wall box to the port labeled PoE IN + DATA. 4. Attach the UAP‑AC‑IW‑PRO to the Back Plate using the two Torx or Phillips Screws.
- Page 11 5. Attach the Cover Plate to the bottom of the UAP-AC-IW-PRO. Then press the Cover Plate into position until the Security and mounting tabs snap into place. 6. Optional: Secure the Cover Plate to the UAP-AC-IW-PRO using the included Torx or Phillips Security Screw.
-
Page 12: Software Installation
UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide. Mobile App Installation Ubiquiti Networks also offers the UniFi mobile app, which is available from the App Store (iOS) or Google Play Store ™... -
Page 13: Specifications
Specifications UAP‑AC‑IW‑PRO Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01") Weight 210 g (7.41 oz) Networking Interface (3) 10/100/1000 Ethernet Ports Button(s) Reset Power Method 802.3at PoE+ Supported Power Supply UniFi Switch (PoE) Power Save Supported PoE Out 48V Passthrough (Pins 1, 2+;... -
Page 14: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 15: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 16 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 17: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 18 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
-
Page 19: Industry Canada
Industry Canada CAN ICES‑3(A)/NMB‑3(A) This Class A digital apparatus complies with Canadian CAN ICES‑003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. -
Page 20: Professional Installation Instruction
20cm from nearby person in normal opera tion condition to meet regulatory RF exposure requirement. 3. External antenna Use only the antennas which have been approved by Ubiquiti Networks, Inc. The non-approved antenna(s) may produce un wanted spurious or excessive RF transmitting power which may lead to the violation of FCC / IC limit and is prohibited. - Page 21 Ce produit est destine a un usage specifique et doit etre installe par un personnel qualifie maitrisant les radiofrequences et les regles s'y rapportant. L'installation et les reglages ne doivent pas etre modifies par l'utilisateur final. 2. Emplacement d'installation En usage normal, afin de respecter les exigences reglementaires concernant l'exposition aux radiofrequences, ce produit doit etre installe de facon a respecter une distance de 20 cm entre l'antenne emettrice et les personnes.
-
Page 22: Rf Exposure Warning
RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé... - Page 23 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 24 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 25: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. - Page 26 ©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. App Store is a service mark of Apple, Inc.
