61019 / 01
Required Tools
Additional Tools (depending on application)
Installation Guide
Use and programming
instructions are located on the
reverse side of this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smartcode 910 and is the answer not in the manual?

Questions and answers

Related Manuals for Kwikset Smartcode 910

Summary of Contents for Kwikset Smartcode 910

  • Page 1 61019 / 01 Installation Guide Required Tools Use and programming instructions are located on the Additional Tools (depending on application) reverse side of this document.

  • Page 2: Parts In The Box

    Parts in the Box Latch and Strike Exterior Assembly Interior Assembly If needed, please contact Kwikset to order a drive-in latch for your lock.

  • Page 3: Check Dimensions

    1-1/2" 2-1/8" 1" 38 mm 54 mm 25 mm Additional door preparation may be *Service kits for 2-1/4" required for doors with 1-1/2" (57 mm) thick doors are (38 mm) holes. Consult the drilling available through Kwikset. instructions at www.kwikset.com...
  • Page 4 Extend latch bolt A / A2...
  • Page 5 Adjust the backset of latch (if needed) Hold the latch in front of the If the latch holes are door hole, with the latch face centered in the door hole, no flush against the door edge. adjustment is required. Proceed to step 4. If the latch holes are NOT centered, adjust latch.

  • Page 6: Install Latch

    Install Latch For doors with chiseled edge For doors without chiseled edge C (2x) wood block...
  • Page 7 Prepare exterior keypad For doors with 2-1/8" (54 mm) holes 2-1/8" 54 mm For doors with 1-1/2" (38 mm) holes 1-1/2" 38 mm...
  • Page 8 Install keypad and mounting plate Route cable through center hole, then push cable into side hole. center hole Cable goes underneath latch side hole Keep parallel to edge of door Insert key and test latch. If latch does not extend or retract smoothly, adjust screws (R).
  • Page 9 Disassemble interior assembly Do not install Make sure turnpiece is in the batteries yet. vertical position.

  • Page 10: Install Interior Assembly

    Install interior assembly Lay cable flat against the interior housing. Ensure tight cable connection. P (2x)
  • Page 11 Perform door handing procedure This step will teach your lock the orientation of your door and is crucial to lock operation. Press and hold the Lock button Did the latch bolt retract and while installing battery pack (L). extend on its own when the Hold button until the latch bolt battery pack was installed? starts moving on its own.

  • Page 12: Install Strike

    Install strike D (2x)

  • Page 13: Program The Lock

    Program the lock Programming instructions are located on the reverse side of this document.
  • Page 14 Install the battery cover and re-key the lock ball Q (3x) If needed, re-key the lock to work with your existing key. See the supplied SmartKey Keep “S” in a safe place, as you will Re-key instructions for more need it to access the back panel for information.
  • Page 15 Template If your door requires drilling, cut out the template and place it on the exterior side of the door. Complete door drilling instructions are available on the SmartCode deadbolt page of www.kwikset.com. Edge Face Fold Centerline 2-3/8" (60 mm) 2-3/4"...
  • Page 16 61019 / 01 User Guide Kwikset North America: 1-866-863-6584 Australia: 1800 623 118 New Zealand: 0800 736 776 www.kwikset.com Troubleshooting and FAQs Installation instructions are are available online at located on the reverse side www.kwikset.com. of this document.

  • Page 17: Smartcode At A Glance

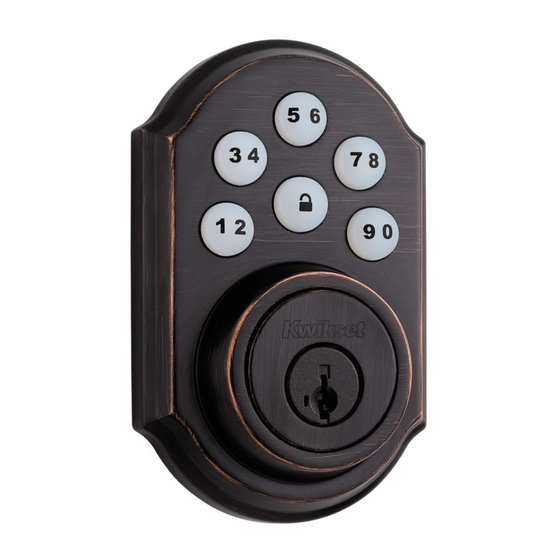

    SmartCode at a Glance Exterior Interior Note: Although the arched 910 (cover removed) model is illustrated, instructions are the same for all 910 models. Back panel Button “A” Button “B” Program button Switches Keypad Lock button Status LED Turnpiece SmartKey Keyway tool hole...

  • Page 18: Normal Operation

    Normal Operation Unlocking the Door Enter user code. Tip: You can press the Lock button before entering your user code to light up the keypad at night. If three incorrect codes are entered consecutively or if three time outs occur within one minute, the keypad will lockout for 60 seconds, after which you may try the code again.
  • Page 19 Switches, Status LED Colors and Keypad Warnings Switches Keypad ON OFF Status LED Switch Function Warning Reason Solution Color Lock Status Door lock status LED blinks every Blinking green Unlocked Low battery Replace batteries Keypad fl ashes red 6 seconds with fast beeping Door not locked Relock door...
  • Page 20 Z-Wave & ZigBee Systems Lock Inclusion Lock Exclusion “Inclusion” refers to the process in which the lock is “Exclusion” refers to the process in which the lock is added to a Z-Wave or ZigBee controller. Initiate the removed from a Z-Wave or ZigBee controller. Initiate the Inclusion process at your Z-Wave or ZigBee controller.

  • Page 21: Programming Codes

    Programming Codes It is recommended that you add and delete all user codes through your Z-Wave or ZigBee control system. If your system does not allow this, the sections below will provide instructions for how to add and delete codes at the lock. User Codes Requirements Each user code must be a unique code between 4 and 8 digits, depending on your control system.
  • Page 22 How the Keypad Works Each button represents two numbers (i.e. 1 and 2 for the fi rst button). You only need to push the button once to get either 1 or 2. For example: If your code is 1-2-5-6-8, Disabling the Mastercode Press and HOLD Press Lock button once.
  • Page 23 Adding User Codes Programming with a mastercode: Perform steps 1–6. Programming WITHOUT a mastercode: Perform steps 4–6. Press Program Enter MASTERCODE. Press Lock button once. button once. The keypad will flash green and you will hear three beeps. This is a reminder that the mastercode is enabled.

  • Page 24: Regulatory Compliance

    Regulatory Compliance This product complies with standards determined by turning the equipment off and established by the following regulatory bodies: on, the user is encouraged to try to correct the interference by one or more of the following • Federal Communications Commission measures: (FCC) •...

  • Page 25: Troubleshooting

    Reason: The door handing process was not executed during installation, and the lock does not know the orientation of the door. Solution: Perform the door handing process, step 9 in the installation guide. For more troubleshooting, download the online Troubleshooting Guide, available at www.kwikset.com.

  • Page 26: Factory Reset

    Factory Reset A factory reset will delete all codes associated with the lock. Remove battery pack. Press and HOLD the Program button while reinserting the battery pack. Keep holding the button for 30 seconds until the lock beeps status LED and the status LED flashes red.

  • Page 27: Warranty

    Warranty North America For warranty information, please visit www.kwikset.com. Australia Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

  • Page 28: Important Safeguards

    Builder’s hardware is available in multiple performance grades to suit the application. In order to enhance security and reduce risk, you should consult a qualifi ed locksmith or other security professional. ©2014 Kwikset Corporation...
