SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, OPC UA
Server and SNMP Manager.
By Pressing the "Set Communication" button from the main window for SW67B47
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "OPC UA Server" are:
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field "DNS" the DNS address is defined. This field is required if the
server address is define by URL and not IP Address.
In the field "Port" the port used for OPC UA communication is defined.
The means of the fields for "SNMP Manager" are:
In the field "IP ADDRESS" the IP address that you want to give to the SNMP
side is defined;
In the field "SUBNET Mask" the SubNet Mask of the SNMP side is defined;
In the field "GATEWAY" the default gateway that you want to use is defined.
This feature can be enabled or disabled pressing the Check Box field. This
feature is used for going out of the net;
In the field "Name of
node.
The means of the fields for "NTP (Network Time Protocol)" are:
In the field "Server URL" the URL or the IP Address of the NTP Server is
defined;
In the field "Poll
synchronization is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Station" it is possible to assign a name to the SNMP
Time (seconds)" the polling
User Manual OPC UA Server / SNMP Manager
Document code: MN67B47_ENG

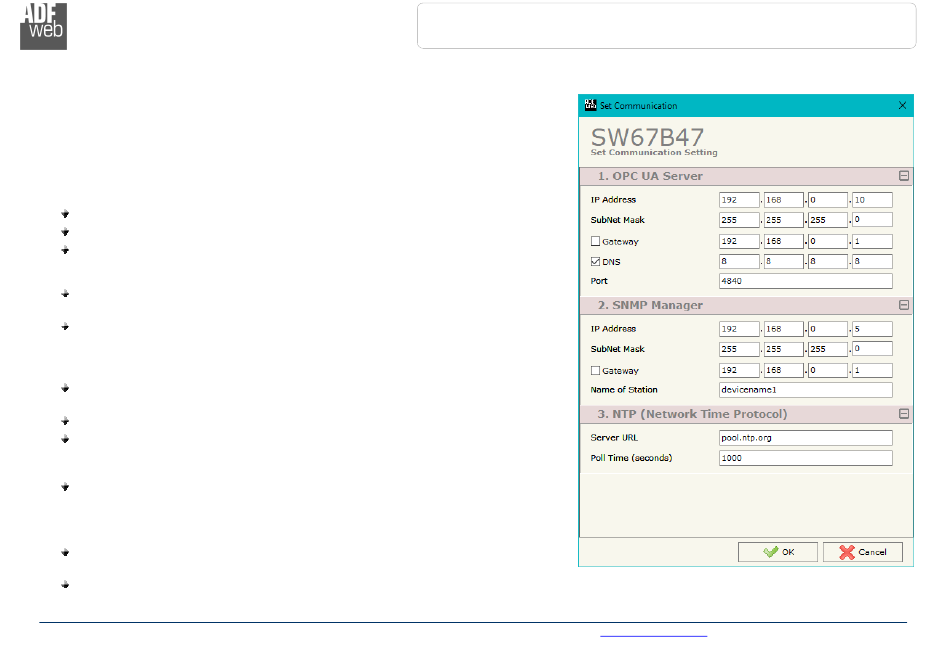

Figure 3: "Set Communication" window
time for the time
