SNMP SET ACCESS:

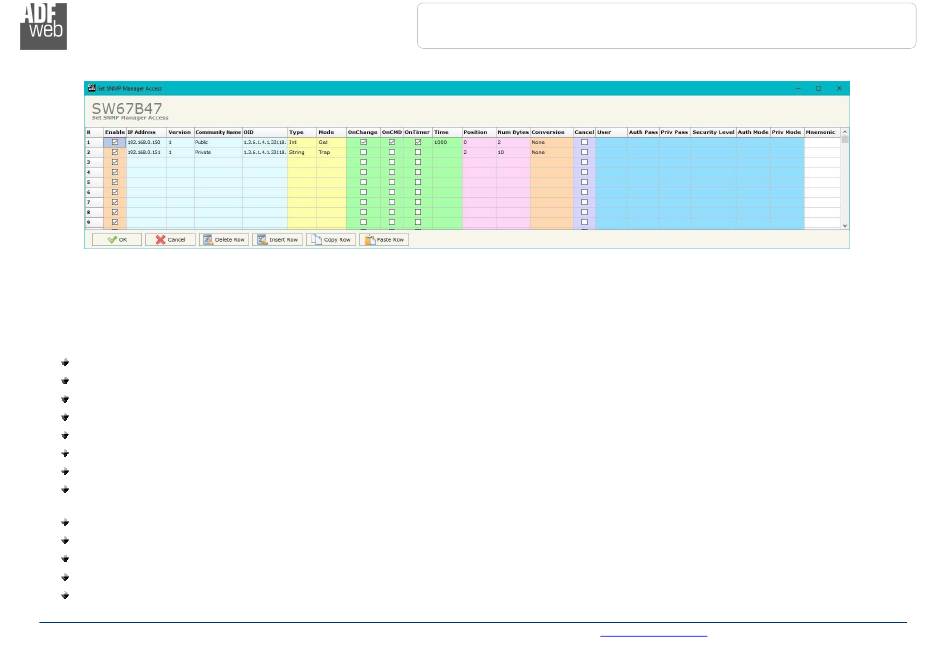

Figure 5: "Set SNMP Manager Access" window
By Pressing the "SNMP Manager" button from the main window for SW67B47 (Fig. 2) the window "Set SNMP Manager Access" appears
(Fig. 5).
The meaning of the fields in the window are the follows:
If the field "Enable" is checked, the SNMP request is enabled;
In the field "IP Address" the address of the SNMP Manager device to read/write is defined;
In the field "Version" the SNMP version used to send the SNMP request (1 or 2 is allowed) is defined;
In the field "Community
In the field "OID" the OID to read/write from/to the SNMP Agent device is defined;
In the field "Type" the type of data to read/write ('String' or 'Int') is defined;
In the field "Mode" the type of SNMP request used ('Get', 'Set' or 'Trap') is defined;
By checking the field "On
changed;
By checking the field "OnCMD" the SNMP request is sent only when a OPC UA command for the associated variable is received;
If the field "On Timer" is checked, the SNMP request is sent cyclically;
In the field "Time" the delay in ms between two SNMP requests is defined (if "On Timer" is checked);
In the field "Position" it is possible to select the position where take/save the data from/to the internal memory array;
In the field "Num Bytes" it is possible to select define the dimension of the SNMP data;
