Industrial Electronic Devices
User Manual
Revision 1.000
English

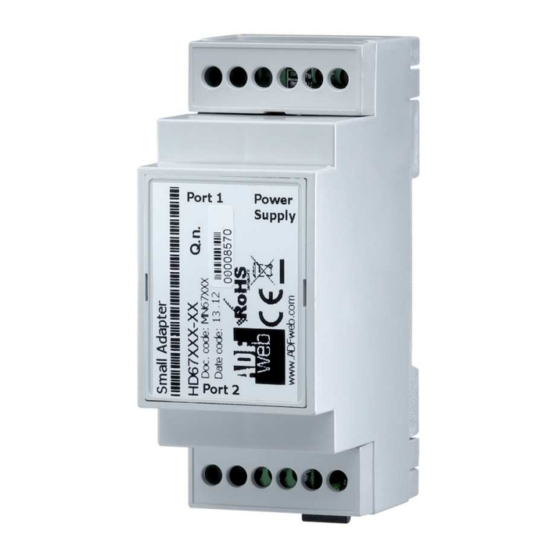

OPC UA Server / MQTT - Converter
(Order Code: HD67B42-B2)
for Website information:
http://www.adfweb.com/?Product=HD67B42
for Price information:
http://www.adfweb.com/?Price=HD67B42-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Server / MQTT
Document code: MN67B42_ENG
Revision 1.000
For others OPC UA Server devices, see also the following links:
OPC UA Server from/to ...
www.adfweb.com?Product=HD67B26
www.adfweb.com?Product=HD67B27
www.adfweb.com?Product=HD67B28
www.adfweb.com?Product=HD67B29
www.adfweb.com?Product=HD67B30
www.adfweb.com?Product=HD67B31
www.adfweb.com?Product=HD67B32
www.adfweb.com?Product=HD67B33
www.adfweb.com?Product=HD67B34
www.adfweb.com?Product=HD67B35
www.adfweb.com?Product=HD67B36
www.adfweb.com?Product=HD67B37
www.adfweb.com?Product=HD67B38
www.adfweb.com?Product=HD67B39
www.adfweb.com?Product=HD67B40
www.adfweb.com?Product=HD67B41
www.adfweb.com?Product=HD67B43
www.adfweb.com?Product=HD67B44
www.adfweb.com?Product=HD67B45
www.adfweb.com?Product=HD67B46
www.adfweb.com?Product=HD67B47
www.adfweb.com?Product=HD67B48
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Page 1 of 29
(Serial)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(Bacnet Master)
(Bacnet Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Master)
(EtherNet/IP Slave)
(J1939)
(KNX)
(NMEA0183)
(NMEA2000)
(PROFINET Master)
(PROFINET Slave)
(SNMP Manager)
(SNMP Agent)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67B42-B2
Summary of Contents for ADF Web HD67B42-B2
- Page 1 Industrial Electronic Devices User Manual Revision 1.000 English OPC UA Server / MQTT - Converter (Order Code: HD67B42-B2) for Website information: http://www.adfweb.com/?Product=HD67B42 For others OPC UA Server devices, see also the following links: OPC UA Server from/to … for Price information: www.adfweb.com?Product=HD67B26...
-
Page 2: Table Of Contents
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 2 of 29 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 3 of 29 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 4 of 29 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 5 of 29 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67B42-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Page 6 of 29 Industrial Electronic Devices CHARACTERISTICS: The HD67B42-B2 is a OPC UA Server / MQTT Slave converter. It allows the following characteristics: Up to 1500 bytes in reading and 1500 bytes in writing; Two-directional information between MQTT and OPC UA;... -
Page 7: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B42-B2 Consumption at 24V DC: Device W/VA HD67B42-B2 Caution: Not reverse the polarity power HD67B42-B2 ADFweb.com Srl –... -
Page 8: Function Modes
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 8 of 29 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. -
Page 9: Leds
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 9 of 29 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet
ETHERNET: The Ethernet connection must be made using Connector3 of HD67B42-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67B42
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 11 of 29 Industrial Electronic Devices USE OF COMPOSITOR SW67B42: To configure the Converter, use the available software that runs with Windows called SW67B42. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 12 of 29 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “OPC UA Server / MQTT - Converter”... -
Page 13: Software Options
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 13 of 29 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 14 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 14 of 29 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 15: Set Communication
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 15 of 29 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67B42 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: OPC UA Server... - Page 16 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 16 of 29 Industrial Electronic Devices OPC UA S ERVER This section is used to define the main parameters of OPC UA line. The means of the fields are: In the field “IP...
- Page 17 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 17 of 29 Industrial Electronic Devices MQTT: This section is used to define the main parameters of MQTT line. The means of the fields are: In the field “Server URL”...
- Page 18 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 18 of 29 Industrial Electronic Devices THERNET This section is used to define the general parameters of Ethernet. The means of the fields are: In the field “Ip Address”...
- Page 19 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 19 of 29 Industrial Electronic Devices If the field “Enable DHCP” is checked, the converter acts as DHCP Server for the Clients connected. If the option is enabled, in the fields “DHCP First IP Address”...
- Page 20 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 20 of 29 Industrial Electronic Devices TLS (T RANSPORT AYER ECURITY This section is used to define the parameters of TLS protocol. The means of the fields are: If the field “Enable TLS”...
-
Page 21: Opc Ua Access
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 21 of 29 Industrial Electronic Devices OPC UA ACCESS: By Pressing the “OPC UA Access” button from the main window for SW67B42 (Fig. 2) the window “OPC UA Server Access” appears (Fig. 4). This section is used to define the list of OPC UA variables to read/write. -
Page 22: Mqtt Set Topic
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 22 of 29 Industrial Electronic Devices MQTT SET TOPIC: By Pressing the “MQTT Set Topic” button from the main window for SW67B42 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 5). This section is used to define the MQTT topics where the converter will publish the data from OPC UA and the topic that the converter will subscribes for writing the data to OPC UA. - Page 23 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 23 of 29 Industrial Electronic Devices If the field “On Timer” is checked, the converter publishes the topic cyclically with the delay defined in the field “Time (ms)”;...
-
Page 24: Update Device
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 24 of 29 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 25 User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 25 of 29 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B42 device. Warning: If Fig.
-
Page 26: Mechanical Dimensions
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 26 of 29 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67B42-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 27: Ordering Informations
Enclosure Type B: Modulbox 2M, 35mm DIN Rail mounting Device Family HD67B42: OPC UA Server / MQTT - Converter Order Code: HD67B42-B2 OPC UA Server / MQTT - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 28: Disclaimer
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 28 of 29 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 29: Warranties And Technical Support
User Manual OPC UA Server / MQTT Document code: MN67B42_ENG Revision 1.000 Page 29 of 29 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
