User Manual OPC UA Server / SNMP Manager
Document code: MN67B47_ENG
Revision 1.000
Page 21 of 24
Industrial Electronic Devices

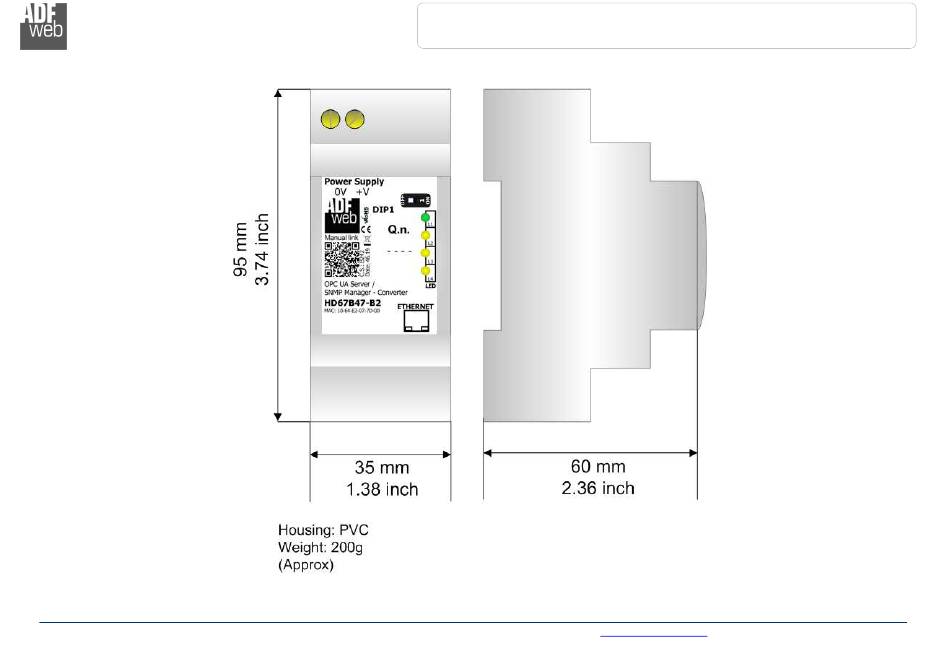

MECHANICAL DIMENSIONS:
Figure 8: Mechanical dimensions scheme for HD67B47-B2
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
