NPD Setup Sum m ary
To set up an NPD:

Disconnect the hydrogen and air lines at the NPD bulkhead.

•
• Adjust the hydrogen flow.
• Adjust the air flow.
Reconnect the hydrogen and air lines.
•
Disconnect the Hydrogen and Air Lines at the NPD Bulkhead
1. Open the detector cover.

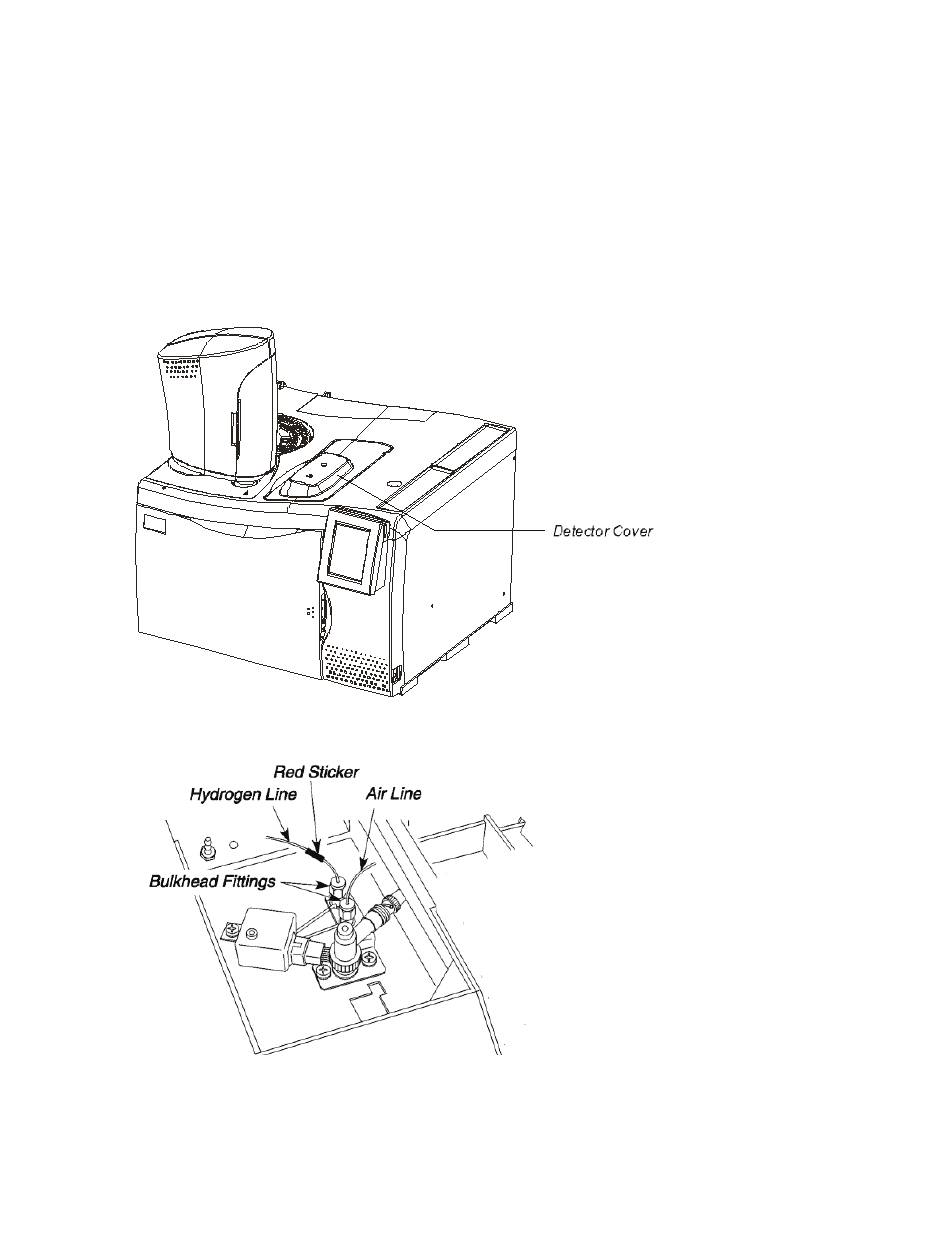

This exposes the NPD bulkhead fittings shown in the following figure.
NOTE: The hydrogen line is marked with a red sticker. The air line is unmarked.
2. Disconnect the hydrogen line by loosening the nut that connects the hydrogen line to the bulkhead
fitting with a 7/16-inch wrench.
