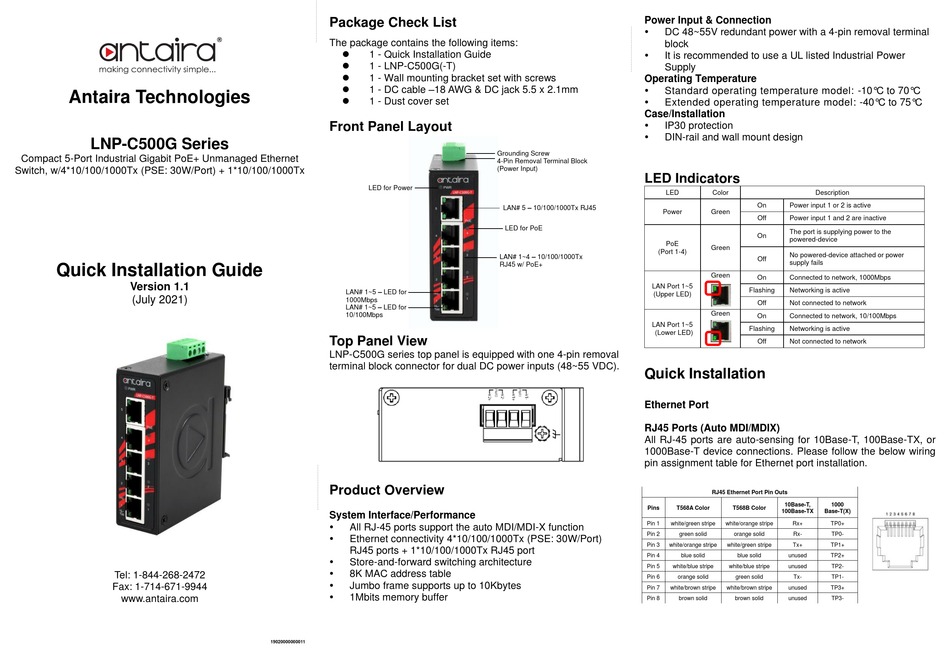

ANTAIRA LNP-C500G Series Quick Installation Manual

Antaira Technologies

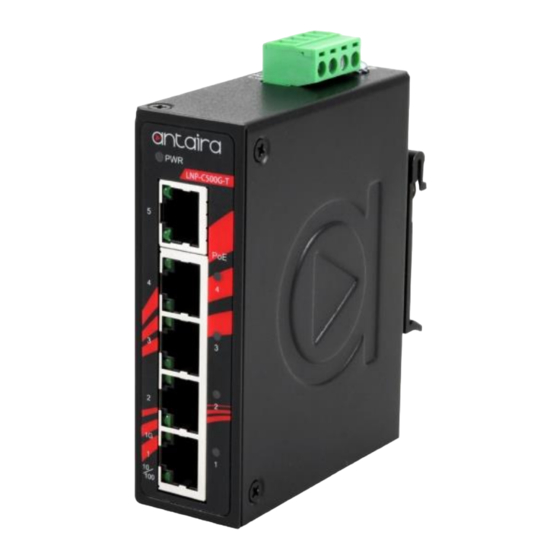

LNP-C500G Series
Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet
Switch, w/4*10/100/1000Tx (PSE: 30W/Port) + 1*10/100/1000Tx
Quick Installation Guide
Version 1.1
(July 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫
1 - Quick Installation Guide
⚫
1 - LNP-C500G(-T)
⚫
1 - Wall mounting bracket set with screws
⚫ 1 - DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫
1 - Dust cover set
Front Panel Layout
LED for Power
LAN# 1~5 – LED for
1000Mbps
LAN# 1~5 – LED for
10/100Mbps
Top Panel View
LNP-C500G series top panel is equipped with one 4-pin removal
terminal block connector for dual DC power inputs (48~55 VDC).
Product Overview
System Interface/Performance

All RJ-45 ports support the auto MDI/MDI-X function

Ethernet connectivity 4*10/100/1000Tx (PSE: 30W/Port)
RJ45 ports + 1*10/100/1000Tx RJ45 port

Store-and-forward switching architecture

8K MAC address table

Jumbo frame supports up to 10Kbytes

1Mbits memory buffer
19020000000011
Power Input & Connection

DC 48~55V redundant power with a 4-pin removal terminal
block

It is recommended to use a UL listed Industrial Power
Supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-rail and wall mount design
Grounding Screw
4-Pin Removal Terminal Block
(Power Input)
LED Indicators
LED
LAN# 5 – 10/100/1000Tx RJ45
Power
LED for PoE
PoE
(Port 1-4)
LAN# 1~4 – 10/100/1000Tx
RJ45 w/ PoE+
LAN Port 1~5
(Upper LED)
LAN Port 1~5
(Lower LED)
Quick Installation
Ethernet Port
RJ45 Ports (Auto MDI/MDIX)
All RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T device connections. Please follow the below wiring
pin assignment table for Ethernet port installation.
Pins T568A Color
Pin 1 white/green stripe
Pin 2
Pin 3 white/orange stripe
Pin 4
Pin 5 white/blue stripe
Pin 6
Pin 7 white/brown stripe
Pin 8
Color Description
On Power input 1 or 2 is active
Green
Off Power input 1 and 2 are inactive
The port is supplying power to the
On
powered-device
Green
No powered-device attached or power
Off
supply fails
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
RJ45 Ethernet Port Pin Outs
10Base-T, 1000
T568B Color
100Base-TX Base-T(X)
white/orange stripe Rx+ TP0+
green solid orange solid Rx- TP0-
white/green stripe Tx+ TP1+
blue solid blue solid unused TP2+
white/blue stripe unused TP2-
orange solid green solid Tx- TP1-
white/brown stripe unused TP3+
brown solid brown solid unused TP3-
