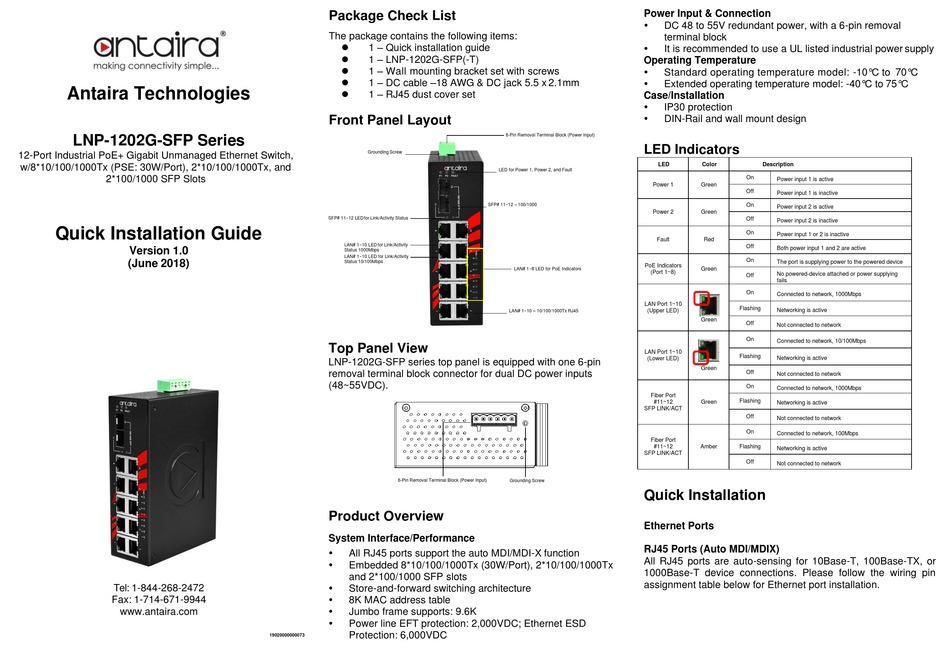

ANTAIRA LNP-1202G-SFP Series Quick Installation Manual

Antaira Technologies
LNP-1202G-SFP Series
12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch,
w/8*10/100/1000Tx (PSE: 30W/Port), 2*10/100/1000Tx, and
2*100/1000 SFP Slots
Quick Installation Guide
Version 1.0
(June 2018)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNP-1202G-SFP(-T)
1 – Wall mounting bracket set with screws
⚫
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set

Front Panel Layout

Grounding Screw
SFP# 11~12 LED for Link/Activity Status
LAN# 1~10 LED for Link/Activity
Status 1000Mbps
LAN# 1~10 LED for Link/Activity
Status 10/100Mbps
Top Panel View
LNP-1202G-SFP series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI/MDI-X function

Embedded 8*10/100/1000Tx (30W/Port), 2*10/100/1000Tx
and 2*100/1000 SFP slots

Store-and-forward switching architecture

8K MAC address table

Jumbo frame supports: 9.6K

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000073
Power Input & Connection



Operating Temperature


Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C

Case/Installation


IP30 protection

6-Pin Removal Terminal Block (Power Input)

LED Indicators

LED
LED for Power 1, Power 2, and Fault
Power 1
SFP# 11~12 – 100/1000
Power 2
Fault
PoE Indicators
LAN# 1~8 LED for PoE Indicators
(Port 1~8)
LAN Port 1~10
LAN# 1~10 – 10/100/1000Tx RJ45 (Upper LED)
LAN Port 1~10
(Lower LED)
Fiber Port
#11~12
SFP LINK/ACT
Fiber Port
#11~12
SFP LINK/ACT
Grounding Screw
Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI/MDIX)

All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
DC 48 to 55V redundant power, with a 6-pin removal
terminal block
It is recommended to use a UL listed industrial power supply
DIN-Rail and wall mount design
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
The port is supplying power to the powered device
Green
No powered-device attached or power supplying
Off
fails
On
Connected to network, 1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 1000Mbps
Flashing
Green
Networking is active
Off
Not connected to network
On
Connected to network, 100Mbps
Amber Flashing
Networking is active
Off
Not connected to network
