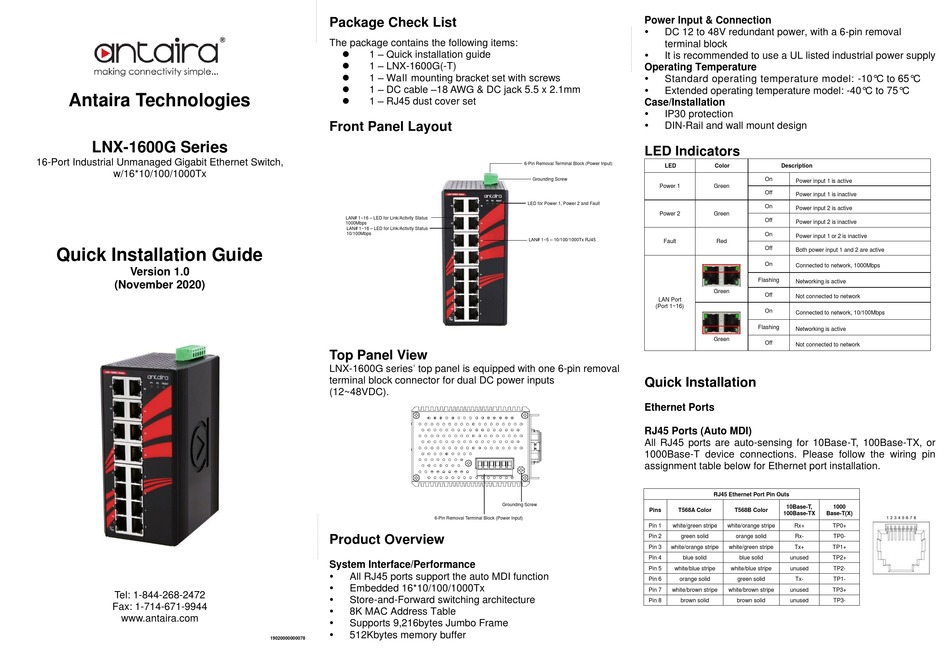

ANTAIRA LNX-1600G Series Quick Installation Manual

ANTAIRA LNX-1600G Series Quick Installation Manual

16-port industrial unmanaged gigabit ethernet switch, w/16*10/100/1000tx
Hide thumbs Also See for LNX-1600G Series:

Advertisement

Quick Links

Antaira Technologies

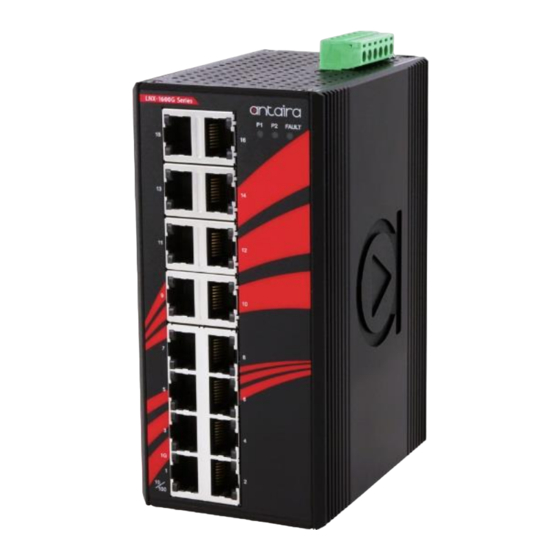

LNX-1600G Series
16-Port Industrial Unmanaged Gigabit Ethernet Switch,
w/16*10/100/1000Tx
Quick Installation Guide
Version 1.0
(November 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
1 – Quick installation guide
1 – LNX-1600G(-T)
1 – Wall mounting bracket set with screws
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
1 – RJ45 dust cover set
Front Panel Layout
LAN# 1~16 – LED for Link/Activity Status
1000Mbps
LAN# 1~16 – LED for Link/Activity Status
10/100Mbps
Top Panel View
LNX-1600G series' top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI function
Embedded 16*10/100/1000Tx
Store-and-Forward switching architecture
8K MAC Address Table
Supports 9,216bytes Jumbo Frame
512Kbytes memory buffer
19020000000078
Power Input & Connection
DC 12 to 48V redundant power, with a 6-pin removal
terminal block
It is recommended to use a UL listed industrial power supply
Operating Temperature
Standard operating temperature model: -10°C to 65°C
Extended operating temperature model: -40°C to 75°C
Case/Installation
IP30 protection
DIN-Rail and wall mount design
LED Indicators
6-Pin Removal Terminal Block (Power Input)
LED
Grounding Screw
Power 1
LED for Power 1, Power 2 and Fault
Power 2
LAN# 1~5 – 10/100/1000Tx RJ45
Fault
LAN Port
(Port 1~16)
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Grounding Screw
Pins
T568A Color
Pin 1
white/green stripe
Pin 2
green solid
Pin 3
white/orange stripe
Pin 4
Pin 5
white/blue stripe
Pin 6
orange solid
Pin 7
white/brown stripe
Pin 8
brown solid
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
RJ45 Ethernet Port Pin Outs
10Base-T,
1000
T568B Color
100Base-TX
Base-T(X)
white/orange stripe
Rx+
TP0+
orange solid
Rx-
TP0-
white/green stripe
Tx+
TP1+
blue solid
blue solid
unused
TP2+
white/blue stripe
unused
TP2-
green solid
Tx-
TP1-
white/brown stripe
unused
TP3+
brown solid
unused
TP3-
