ANTAIRA LNP-C500G-T User Manual

ANTAIRA LNP-C500G-T User Manual

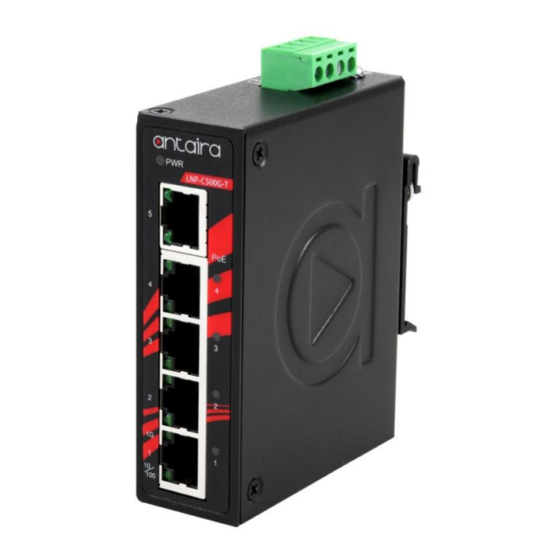

Lnp-c500g series compact 5-port industrial gigabit poe+ unmanaged ethernet switch, w/4*10/100/1000tx (pse: 30w/port) + 1*10/100/1000tx

Advertisement

Quick Links

Antaira Technologies

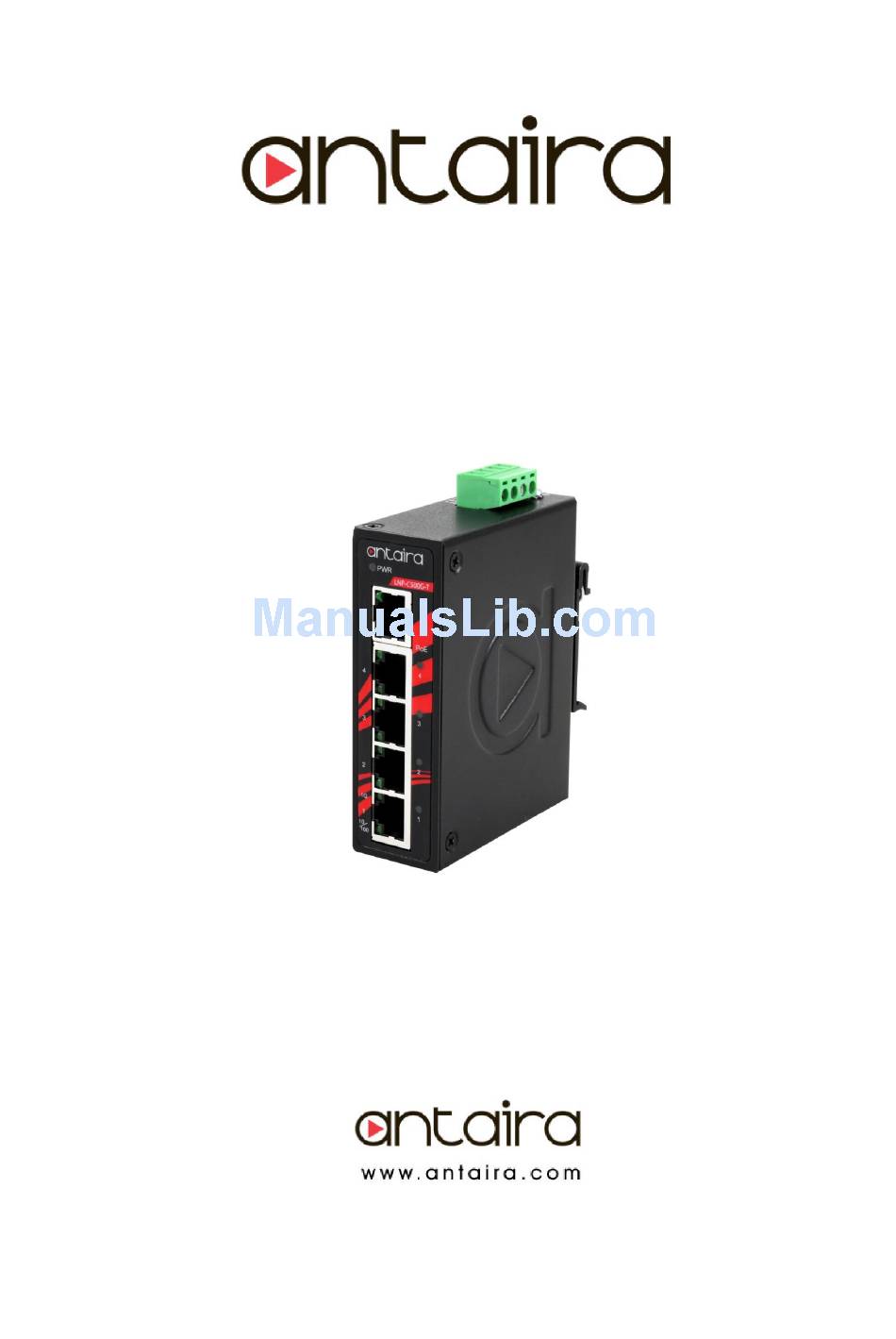

LNP-C500G Series User Manual V1.0
LNP-C500G Series
Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet
Switch, w/4*10/100/1000Tx (PSE: 30W/Port) + 1*10/100/1000Tx
Version 1.0
(October 2017)

User Manual

i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LNP-C500G-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ANTAIRA LNP-C500G-T

  • Page 1: User Manual

    Antaira Technologies LNP-C500G Series User Manual V1.0 LNP-C500G Series Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (PSE: 30W/Port) + 1*10/100/1000Tx Version 1.0 (October 2017) User Manual...
  • Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC. Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. All other brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 3: Fcc Notice

    This is a Class-A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Industrial Ethernet Switch User Manual This manual supports the following models: LNP-C500G   LNP-C500G-T Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
  • Page 4: Table Of Contents

    Antaira Technologies LNP-C500G Series User Manual V1.0 Table of Contents Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........1 Hardware Description .......... 2 2.1 Physical Dimensions .......... 2 2.2 Front Panel ............3 2.3 Top View ............
  • Page 5: Overview

    LNP-C500G Series User Manual V1.0 1. Overview Antaira Technologies’ LNP-C500G series is a compact 5-port industrial gigabit PoE+ unmanaged Ethernet switch. The small form factor of this metal IP30 rated design is 50% smaller which allows for a more versatile implementation. The LNP-C500G series is equipped with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx...
  • Page 6: Hardware Description

    Antaira Technologies LNP-C500G Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-C500G series: (W x H x D) is 30mm x 95mm x 75mm Figure 2.1 Physical Dimensions...
  • Page 7: Front Panel

    Antaira Technologies LNP-C500G Series User Manual V1.0 2.2 Front Panel The front panel of the LNP-C500G series can be seen below (Figure 2.2). Grounding Screw 4-Pin Removal Terminal Block (Power Input) LED for Power LAN# 5 – 10/100/1000Tx RJ45 LED for PoE LAN# 1~4 –...
  • Page 8: Led Indicators

    Antaira Technologies LNP-C500G Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel that displays the power and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
  • Page 9: Cabling

    Antaira Technologies LNP-C500G Series User Manual V1.0 Figure 2.5 Figure 2.6 Straight-Through Cables Schematic Crossover Cables Schematic 2.6 Cabling  Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) cable. The cable between the equipment and the link partner (media converter, switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
  • Page 10 Antaira Technologies LNP-C500G Series User Manual V1.0 2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.8. Figure 2.8 Power Terminal Block **Note: Only use copper conductors, 60/75°C, tighten to 5 lbs. ...
  • Page 11: Mounting Installation

    Antaira Technologies LNP-C500G Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch.
  • Page 12 Antaira Technologies LNP-C500G Series User Manual V1.0 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch. 2. To remove the DIN-Rail bracket, do the opposite from step 1.
  • Page 13: Wall Mounting

    Antaira Technologies LNP-C500G Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the switch by loosening the screws.
  • Page 14: Hardware Installation

    LNP-C500G Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ LNP-C500G series. Installation Steps 1. Unpack the switch from the original packing box. 2. Check if the DIN‐Rail bracket is screwed on the switch.
  • Page 15: Network Application

    Antaira Technologies LNP-C500G Series User Manual V1.0 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.1 Application Example...
  • Page 16: Trouble Shooting

    Check for loose power connections, power losses, or surges at the power outlet. Please contact Antaira for technical support if the problem cannot be resolved.  If the switch LED indicators are normal and the connected cables are correct but the packets...
  • Page 17: Technical Specifications

    Antaira Technologies LNP-C500G Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u 100Base-TX, Fast Ethernet Standards IEEE 802.3ab 1000Base-TX Gigabit Ethernet IEEE 802.3af Power-over-Ethernet IEEE 802.3at Power-over-Ethernet Plus (Enhanced)
