New England Arbors White Raised Planter Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

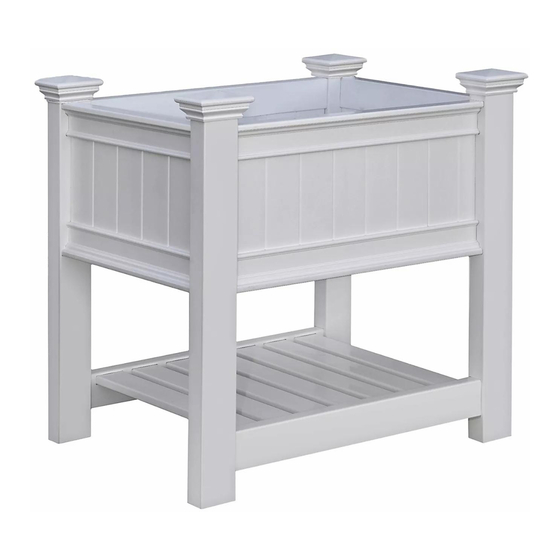

The 24"x36" White Raised Planter

Please read through before starting assembly.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).

1. Pre-Assembled Side Wall Panels with Posts Connected (2)

2. Floor Panels (4)

3. Floor Support (1)

4. Front and Back Wall Panels (2)

5. Shelf Boards (7)

6. Shelf Rails (2)

7. Post Caps (4)

8. 5/8" Stainless Steel Screws (12)

9. 1 1/2" Stainless Steel Screws (8)

• Read Instructions through carefully before beginning assembly.

• When assembling components, place on a non-abrasive surface

(i.e. shipping box) to avoid scratching.

• We recommend an area approx 4'x 8' for unobstructed assembling.

• You should not need to use excessive force when assembling components.

www.newenglandarbors.com

Not to Scale

Ver 3.1/NOV 2012

Table of Contents

Do you have a question about the White Raised Planter and is the answer not in the manual?

Page 1 A S S E M B LY I N S T R U C T I O N S The 24”x36” White Raised Planter www.newenglandarbors.com ¤ ¥ ¦ ¢ £ ¤ ¥ § ¤ ¢ £ ¨ © ¢ £...
Page 2 Note: Routed holes location The 24”x36” White Raised Planter S T E P O N E Assemble the seven Shelf Boards into the Shelf Rails. Push until the tabs lock into place. Note the orientation of the two Shelf rails;...
Page 3 The 24”x36” White Raised Planter S T E P O N E ( C O N T ’ D ) Fasten the wall panels together using 4 of the 5/8” screws provided through the pre-drilled holes on the posts as shown.
Page 4 The 24”x36” White Raised Planter Notch S T E P T W O ( C O N T ’ D ) Place the four floor panels onto the floor supports as shown. Note the notches on the one side of the end panels. The notches are to wrap around the posts.
