New England Arbors The Westwood Arbor Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

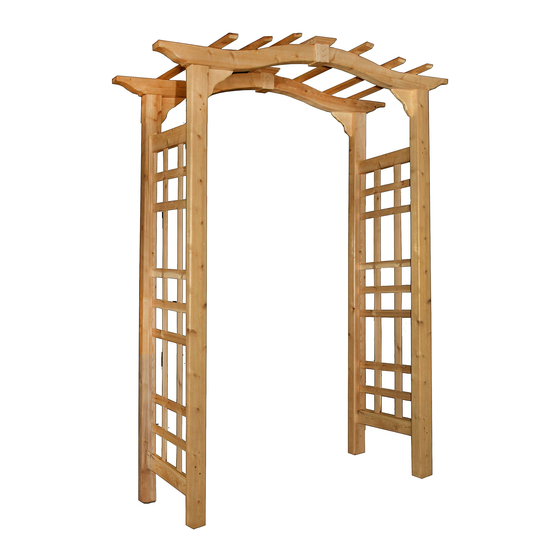

The Westwood Arbor / Arch
Please read through before starting assembly.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Preassembled Arch (2) -
2. Arch Rafters (6) -
12007
Braces (4) -
3. 12005
Preassembled Side Panels (2) -
4.
5.
Hardware:
1 1/2" (38 mm) Wood Screws (12)
a)
1 1/2" (38 mm) Wood Screws (8)
b)
2" (51 mm) Wood Screws (4)
c)
d) 3" (76 mm) Wood Screws (4)
e) 3 1/2" (89 mm) Wood Screws (8)
Ground Stakes (4) -
12006
6.

Tools You Will Need

• Cordless Drill
• Tape Measure
• Level
• Short Ladder
• Shovel

General Information

Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' (3 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
78.4 in
(199 cm)
12009
12008
To attach rafters to arch
To attach ground stakes to posts
To attach braces to arbor posts
To attach braces to swoop top arch
To attach swoop top arches to posts
5 a
b
Not to Scale
59 in
(150 cm)
82 in
(208 cm)
42 in
(107 cm)
47 in
(119 cm)
1
2
3
4
d e
c
6
www.newenglandarbors.com
www.newenglandarbors.co.uk
86 in
(218 cm)
59 in
(150 cm)
14 in
(36 cm)
5 in
18 in
(13 cm)
(46 cm)
V1.5/081517
3 in (8 cm)
3 in (8 cm)
1
