Cascade F Series Installation Instruction

Swing frame paper roll clamp
Hide thumbs Also See for F Series:

Advertisement

Quick Links

Download this manual

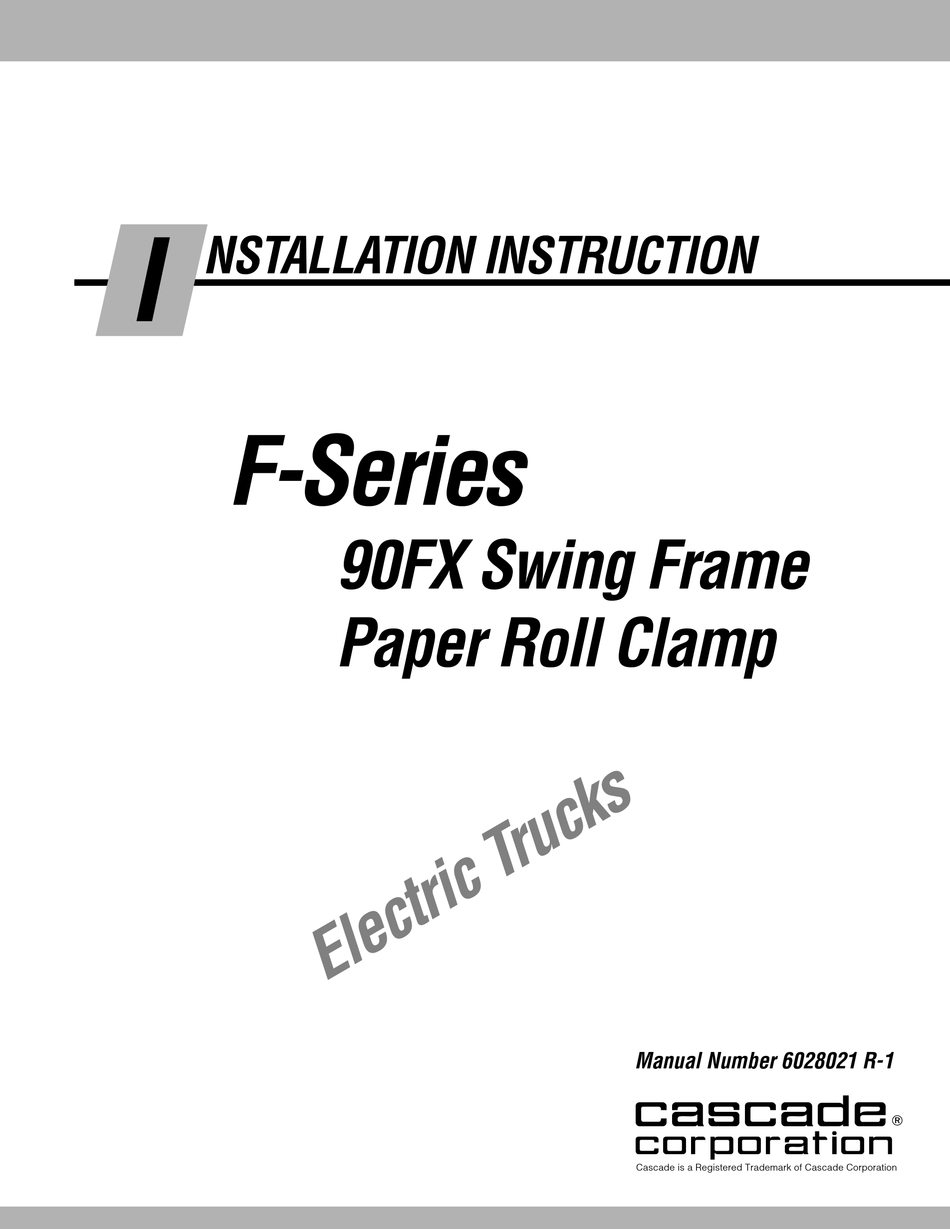

I
NSTALLATION INSTRUCTION
F-Series
90FX Swing Frame
Paper Roll Clamp
Manual Number 6028021 R-1
cascade
corporation
Cascade is a Registered Trademark of Cascade Corporation

Advertisement

loading
Need help?

Need help?

Do you have a question about the F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cascade F Series

Summary of Contents for Cascade F Series

  • Page 1 NSTALLATION INSTRUCTION F-Series 90FX Swing Frame Paper Roll Clamp Manual Number 6028021 R-1 cascade corporation Cascade is a Registered Trademark of Cascade Corporation...
  • Page 2 CLAMP, ROTATE and SWING on the Attachment. No solenoid adaption is required. Recommended hydraulic supply arrangement is A and B, or C. Refer to Cascade Hose and Cable Reel Selection Guide , Part No. 212199, to select the correct hose reel for the mast and truck. Hose and fitting requirements are: •...
  • Page 3 (45 L/min.) (56 L/min.) (75 L/min.) ➀ Cascade Roll Clamps are compatible with SAE 10W petroleum base hydraulic fluid meeting Mil. Spec. MIL-0-5606 or MIL-0- 2104B. Use of synthetic or aqueous base hydraulic fluid is not recommended. If fire resistant hydraulic fluid is required, special seals must be used.
  • Page 4 NSTALLATION Truck Preparation NOTE: Prior to installing the 90FX Paper Roll Clamp, install the following components on the truck: • Solenoid-operated 3N2 control valve in the CLAMP and ROTATE supply lines to the Attachment. • 'Tee' adapter in the truck tank main return line for return-to-tank from the 3N2 Control Valve.
  • Page 5 NSTALLATION Install tank return hose Install a hose from the 3N2 control valve TANK port to the 'tee' adapter installed in Step 1. Install clamp circuit hoses Measure and assemble hoses (user-supplied) for Control the clamp circuit. Install hoses using straight Valve fittings wherever possible.
  • Page 6 NSTALLATION RH 2-Port Install Rotate/Swing circuit hoses Hose Reel Measure and assemble hoses (user-supplied) for the rotate/swing circuit. Install hoses using straight fittings wherever possible. Use hose clamps as necessary to secure hoses and prevent chafing. The first set of rotate/swing function hoses run from truck auxiliary valve ports to the control valve ROTATE IN ports.
  • Page 7 NSTALLATION Install pushbutton switch for SWING function CONTROL LEVER with PUSHBUTTON SWITCH Mount the pushbutton switch on the ROTATE function control lever using double-sided foam tape. Apply heat-shrink tubing over Pushbutton Switch control lever and switch. Use cable ties as Cable Ties (for SWING function) necessary to secure wiring.

  • Page 8: Clamp Installation

    NSTALLATION Clamp Installation Attach overhead hoist WARNING: Make sure overhead Remove banding, set Roll Clamp upright hoist and related components on pallet. have a rated capacity of at least 3500 lbs. (1600 kg). Remove bolt-on lower mounting hooks. RC0938.ill Baseplate Remove lower mounting hooks RC0955.ill Lower Hook...
  • Page 9 NSTALLATION INSTALLATION USING RH & LH 2-PORT Prepare Hoses or Install Hose Kits THINLINE ™ HOSE REELS: Position truck carriage behind roll clamp. Determine hose lengths required. Cut hoses to length, install end fittings and Revolving connect hoses to truck supply terminals for Connection flushing.
  • Page 10 NSTALLATION Mount clamp on truck carriage Center truck behind the roll clamp. Tilt forward and raise carriage into position. Engage top mounting hooks with carriage. Make sure centering tab engages a notch on the top carriage bar. NOTE: Centering tab can be oriented to 4 different positions to center the Clamp (see illustration).
  • Page 11 NSTALLATION Connect hoses prepared in Step 3 to truck supply terminals. RC0910.ill RC0928 .ill Install stop block kit Purge air from hydraulic system • Assure that clamp is centered on carriage. IMPORTANT: All functions must be cycled to remove air trapped in the attachment hydraulic •...
  • Page 12 NSTALLATION Cycle attachment functions WARNING: Make sure all personnel are clear of the LONG ARM clamp during testing. (vertical & horizontal positions only) IMPORTANT: Make sure hydraulic system Release is purged of air before checking attachment functions outlined below (see Step 9). Clamp •...

  • Page 13: 2000-Hour Maintenance

    Lubricant should Access Plug for Assembly Capscrews run out of hole. If necessary, rotate Clamp 90 Faceplate-to-Bearing degrees and fill with Cascade Rotator Drive Lubricant, Assembly Capscrews Rotator Drive Upper Hook Part No. 656300, or SAE 90 wt. gear lube (AGMA...
  • Page 14 Do you have questions you need answered right now? Call your nearest Cascade Service Department. Visit us online at www.cascorp.com Cascade Corporation Cascade Canada Inc. Cascade GmbH Cascade Finland U.S. Headquarters 5570 Timberlea Blvd. Dahlener Strasse 570 A. Petreliuksenkatu 3...
