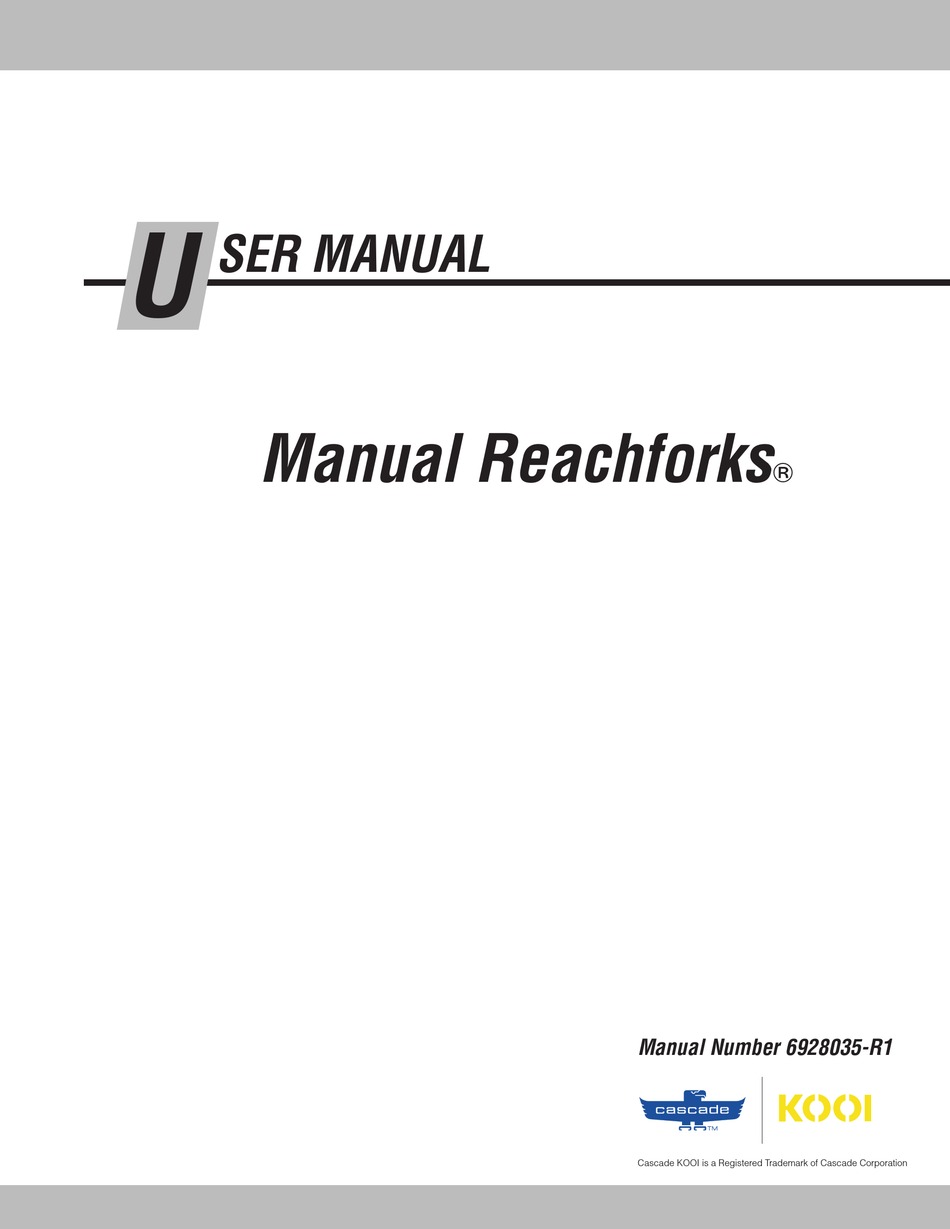

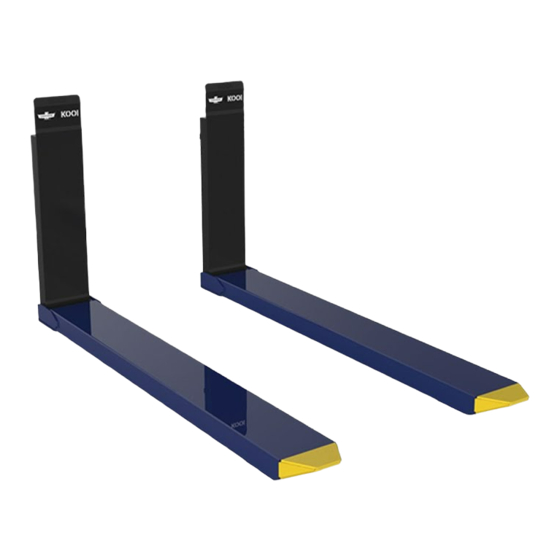

- Page 1 SER MANUAL Manual Reachforks Manual Number 6928035-R1 Cascade KOOI is a Registered Trademark of Cascade Corporation...
-
Page 2: Table Of Contents
Table of Contents ..............2 Definitions Note ................2 Quality Standards, Norms and Directives ..... 2 Safety ................3 Identification ..............4 Assembly............... 5 Extending ..............5 Working with Manual Reachforks ......... 6 Maintenance Schedule ..........6 Wear................7 Instructions for Replacement of Sleeve ......8 Troubleshooting ............ -
Page 3: Definitions
Information provided in this manual, including but not limited to illustrations and text, may not be reproduced without the prior written permission of Cascade KOOI. The information in this manual is provided without any form of guarantee. Under no circumstances shall Cascade KOOI be held liable for accidents or damages arising from the use of this manual. -
Page 4: Safety
Safety Warning: Caution: Do not ride on the Manual Reachforks or on the When leaving the forklift truck, the engine must load. be switched off and the handbrake applied. Warning: Caution: Do not walk or stand under the Manual Bear in mind the space above and below the Reachforks. -
Page 5: Identification
Identi cation Type plate legend: Type Description Weight Serial Number Max. Capacity on Retracted Load Center Retracted Center of Gravity Max. Capacity on Extended Load Center Extended Center of Gravity Retracted Load Center Production Year Extended Load Center Extra Information Warning: Never exceed the maximum truck capacity as seen on the truck type plate. -
Page 6: Assembly
Assembly Slide the Manual Reachforks onto the carriage plate. Make sure that locking pin (2) of each Manual Reachfork drops into one of the notches on the carriage plate. Use catch (1) before operating. Extending Unlock the fork by moving the catch to the right. Keep the catch in the right position and pull the fork out a few centimetres. -
Page 7: Working With Manual Reachforks
Working with Manual Reachforks To minimise wear, avoid as much as possible allowing the Manual Reachforks to come into contact with the ground during operation. In order to reduce wear: • The chains in the mast of the forklift truck can be shortened so that the Manual Reachforks cannot reach the ground. -
Page 8: Wear
Wear 100mm 100mm When surface A (dark grey) is worn to the extent that it is level with or below surface B (light grey), then the wear plate (2) must be replaced. If there are signs of wear on the lower side of the sleeve (2) then it must also be The inner fork is declared unfit for use and must be replaced when S1 is 5% thinner than S2. -
Page 9: Troubleshooting
Unlock the fork by moving the catch to the right and slide Slide the catch to the right, similar to the unlocking pro - the sleeve off the fork. cedure. Slide the sleeve back around the fork and replace the stop. Troubleshooting Observation Symptom... - Page 10 Do you have questions you need answered right now? Call your nearest Cascade KOOI Service Department. Visit us online at www.cascorp.com AMERICAS Cascade KOOI Cascade KOOI Canada Inc. Cascade KOOI do Brasil U.S. Headquarters 5570 Timberlea Blvd. Praça Salvador Rosa,...
