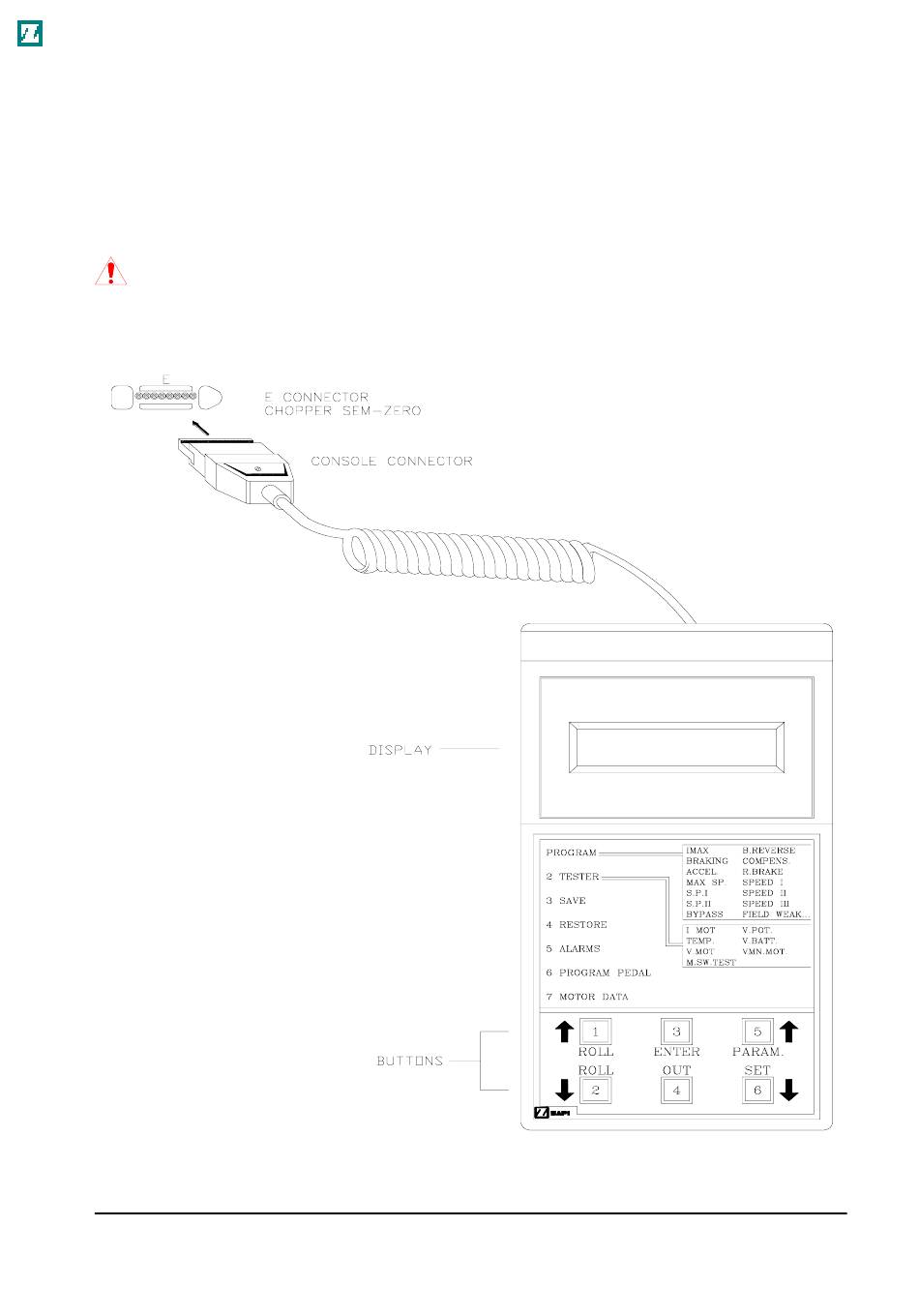

4 PROGRAMMING & ADJUSTMENTS USING DIGITAL CONSOLE
Adjustment of Parameters and changes to the chopper's configuration are made using
the Digital Console. The Console is connected to the "E" connector of the SEM-Zero
Chopper.
Pay attention to the polarity of the Console Connector when connecting to
the chopper. The bevel on the connector should be uppermost.
Digital Consoles used to communicate with SEM-Zero choppers must be fitted with
Eprom CK ULTRA.

4.1 ADJUSTMENTS VIA CONSOLE

4.2 DESCRIPTION OF CONSOLE & CONNECTION
Page 15
