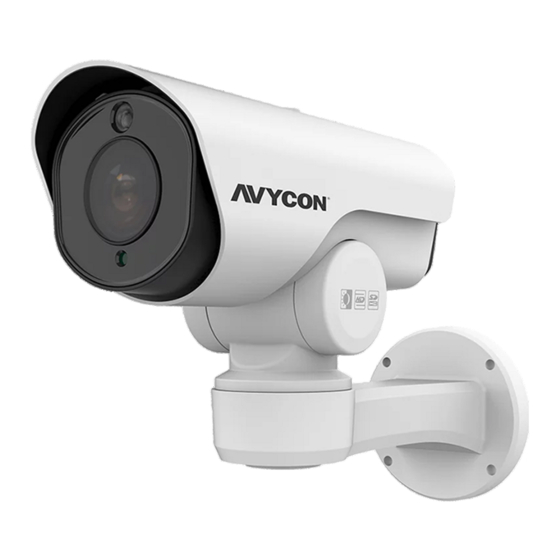

- Page 1 LHN21SVT-A1S QUICK START GUIDE 2MP AUTO-TRACKING PTZ BULLET CAMERA...
-
Page 2: Table Of Contents
TABLE OF CONTENT Package Contents........................Caution............................System Requirements....................... Hardware Overview........................- 12x Mini (PoE) PTZ Bullet Network Camera................- Camera Installation........................How to perform a Hardware Reset................... How to Connect to Alarm Interface..................How to Connect the Waterproof Connector................Accessing the Network Camera.................... -
Page 3: Package Contents
Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions on installing and accessing this IP Network Camera. For more details, please refer to the User Manual. Package Contents Before installation, please verify that all the necessary items are supplied in the box as the package contents listed below. -
Page 4: Hardware Overview
MINI PTZ BULLET MINI PoE PTZ BULLET NOTE: Only DC 12V is available for Mini PTZ Bullet Power Supply. DC 12V & PoE (802.3at) are available for Mini PoE PTZ Bullet Power Supply. 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S... -
Page 5: Camera Installation
Remove the tension disc on the rear cover, and cut an opening on the rubber plug and get cables through the opening then fasten the rear cover to the ceiling or the wall. 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S... - Page 6 Close the junction box and tighten screws as the last step. Please remember to plug the small rubber plug whenever the holes on the rubber plug are not in use. DIAGRAM 2 DIAGRAM 2: Remember to fix the setscrew tightly 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
- Page 7 Loosen screws on SD card cover to get access to the SD card slot. After inserting SD card, reattach SD card cover, tighten screws and then replace sun cover and make sure to tighten thumbscrew. 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
-
Page 8: How To Perform A Hardware Reset
Terminal Block PIN1: Alarm Output NC / NO 24V DC 1A PIN2: Alarm Output NC / NO 24V DC 1A PIN3: Alarm Input NC / NO ≤12V PIN4: Alarm Input NC / NO ≤12V 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S... -
Page 9: How To Connect The Waterproof Connector
NOTE: If placed in an extremely wet environment, for added protection you can wrap the connector in electrical tape to prevent standing water to accumulate on connector. Rubber Ring Network Port Connector Screw Bolt Screw Nut O-Ring 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S... -
Page 10: Accessing The Network Camera
1. Install the Tools utility (This can be downloaded from our website) 2. Start Tools, then click the IPC Tools icon, and then all AVYCON IP cameras on the local network you are connected to will be shown with information such as IP address, MAC address, Status, Port number, Netmask, and Gateway. - Page 11 4. If the selected camera shows "Active" in the status bar, you can directly type the User Name and Password you have previously assigned and then make any modifications to the IP address and click on Modify. 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
- Page 12 (2) You need to be using Tools version V2.4.0.1 or above to activate the camera. 5. After activation, you can change the IP address or other network values, and then click “Modify” button to change the IP address successfully; 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
- Page 13 1. Change the IP address of computer to 192.168.10.0 segment, here are two ways as below: A. Start > Control Panel > Network and Internet Connection > Network Connection > Local Area Connection, and double click it. 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
- Page 14 B. Click “Advanced”, and then click “IP settings” > “IP address” > “Add”. In the pop-up window, enter an IP address that is in the same segment with your Avycon IP camera (e.g. 192.168.10.200, but please confirm that the IP address you pick does not conflict with another address on the network);...
- Page 15 4. After login, please select “Configuration” > “Basic Settings” > “Network” > “TCP/IP”. The Network Settings page appears (Shown as below Figure); 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
- Page 16 3. If this is the first time logging into your IP camera, the browser will prompt you to install the plugin. Please click on link that the window displays to start the download. 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
- Page 17 After the plugin has successfully installed, you can refresh the browser and you should be able to see video. If IE9 or higher version browser is used, it is suggested that the Avycon camera web link should be added as a trusted site. See the instructions as follows: 1.
- Page 18 3. Enter the IP address of the camera in the blank and click “Add”; 4. Enter the IP address into your browser's address bar. After logging into your AVYCON IP camera successfully, you should see live video. 2MP AUTO-TRACKING PTZ BULLET CAMERA | AVC-LHN21SVT-A1S...
- Page 19 Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice. phone: 949-752-7606 email: info@avycon.com social: @avycon_aivo website: avycon.com...
