AVYCON AVC-ELN41FT 2.8 Quick Start Manual

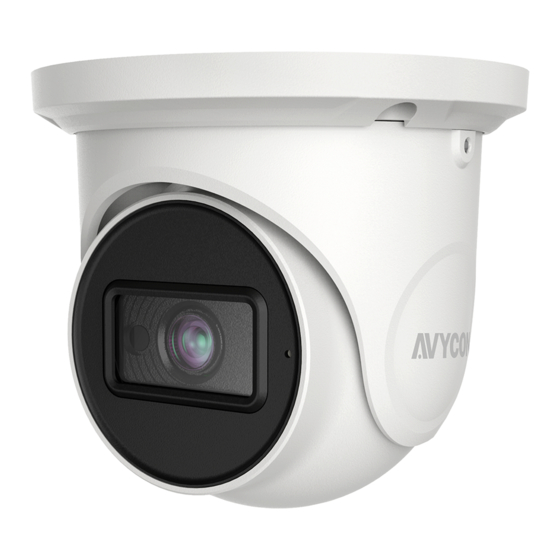

4mp water-proof turret network camera
Hide thumbs

Advertisement

Table of Contents

AVC
ELN41FT_2.8
QUICK START GUIDE
4MP WATER-PROOF TURRET NETWORK CAMERA
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVC-ELN41FT 2.8 and is the answer not in the manual?

Questions and answers

Related Manuals for AVYCON AVC-ELN41FT 2.8

Summary of Contents for AVYCON AVC-ELN41FT 2.8

  • Page 1 ELN41FT_2.8 QUICK START GUIDE 4MP WATER-PROOF TURRET NETWORK CAMERA...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Warning and Caution....................... Package Content..........................Overview........................... Overview: Connecting Network Cable .................. Camera Installation ........................5 Network Connection.........................

  • Page 3: Warning And Caution

    Please read this instruction carefully before operating the unit and keep it for further reference. All the examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. Warning and Caution If the product does not work properly, please contact your dealer or the nearest service center.

  • Page 4: Package Content

    Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions on installing and accessing this IP Network Camera. For more details, please refer to the User Manual. Package Contents AVC-ELN41FT_2.8 Camera Quick Start Guide Plastic plug x 3 Drill template Rubber plug...

  • Page 5: Overview

    Overview AVC-ELN41FT_2.8 Ethernet connector Fixed screw Audio input connector Microphone Power connector Micro SD card slot Mounting base Reset 4MP WATER-PROOF TURRENT NETWORK CAMERA| AVC-ELN41FT_2.8...

  • Page 6: Overview: Connecting Network Cable

    DC12V * 1,It is recommended to install the security cap for outdoor installation. * 2, If the PoE switch is used to power the camera that supports PoE power supply, DC12V power supply is not required. Overview - Connecting Network Cable AVC-ELN41FT_2.8 Step 1: Loosen the nut from the main element.

  • Page 7: Camera Installation

    Camera Installation AVC-ELN41FT_2.8 Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. Please install the camera under dry environment. Step 1: Loosen the fixed screw to disassemble the camera. Then remove the cover of the dome and then insert a micro SD card.
  • Page 8 Step 3: Route and connect the cables and then secure the camera to the ceiling or wall with the screws. Rubber Plug Step 4: Adjust the camera to obtain an optimum angle by loosening the fixed screws. Before adjustment, preview the image of the camera on a monitor. Fixed Screw Step 5: Tighten the fixed screws after you finish adjusting the view angle of the camera.

  • Page 9: Network Connection

    Network Connection AVC-ELN41FT_2.8 Here we take accessing IP camera via LAN for example. Access through IP-Tool Switch Network Cable Network Cable MENU Computer Router Step 1: Make sure that the camera and the PC are well connected to the local network. Step 2: Install IP-Tool from the CD and run it after installation.
  • Page 10 Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice. phone: 949-752-7606 email: info@avycon.com social: @avycon_aivo website: avycon.com...
