Summary of Contents for AVYCON AVC-BLN41FT 2.8

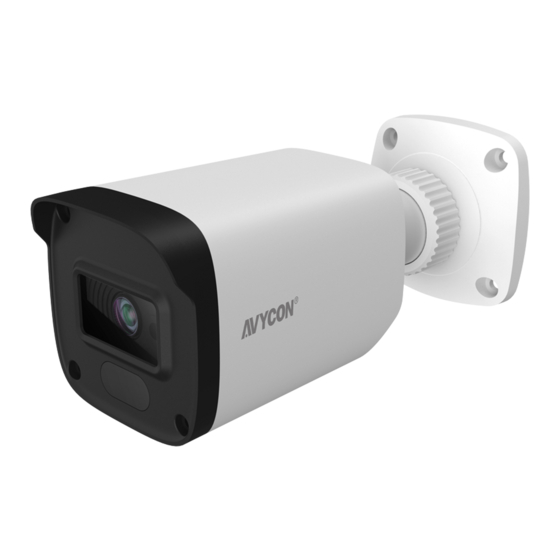

- Page 1 BLN41FT_2.8 QUICK START GUIDE 4MP WATER-PROOF BULLET NETWORK CAMERA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warning and Caution....................... Package Content..........................Overview........................... Overview: Connecting Network Cable .................. Camera Installation ........................5 Network Connection......................... -
Page 3: Warning And Caution
Please read this instruction carefully before operating the unit and keep it for further reference. All the examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. Warning and Caution If the product does not work properly, please contact your dealer or the nearest service center. -
Page 4: Package Content
Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions on installing and accessing this IP Network Camera. For more details, please refer to the User Manual. Package Contents AVC-BLN41FT_2.8 Camera Quick Start Guide Plastic plug x4... -
Page 5: Overview
Overview AVC-BLN41FT_2.8 Fixed Ring Power Connector* Mounting Base Reset Ethernet Connector Micro SD card slot Audio Input 4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41FT_2.8... -
Page 6: Overview: Connecting Network Cable
DC12V * 1, It is recommended to install the security cap for outdoor installation. * 2, DC12V power supply is not required if a PoE switch is used to power the camera. Overview - Connecting Network Cable AVC-BLN41FT_2.8 Step 1: Loosen the nut from the main element. Step 2: Run the network cable (without RJ 45 connector) through the both elements. -
Page 7: Camera Installation
Camera Installation AVC-BLN41FT_2.8 Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. Please install and use the camera in the dry environment. Step 1: Install a micro SD card. Remove the memory slot cover from the camera by loosening the two screws and then install a micro SD card. - Page 8 Step 5: Bracket adjustment. Before adjustment, preview the image of the camera on a moni- tor and then loosen the fixed ring to adjust the view angle of the camera. Fixed Ring Tilt 80° Pan 360° Step 6: Tighten the fixed ring after the adjustment. 4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41FT_2.8...
-
Page 9: Network Connection
Network Connection AVC-BLN41FT_2.8 Here we take accessing IP camera via LAN for example. * Access the camera through IP-Tool Switch Network Cable Network Cable MENU Computer Router Step 1: Make sure that the camera and the PC are well connected via LAN. Step 2: Find the IP-Tool from the CD and then install it in the computer. - Page 10 Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice. phone: 949-752-7606 email: info@avycon.com social: @avycon_aivo website: avycon.com...
