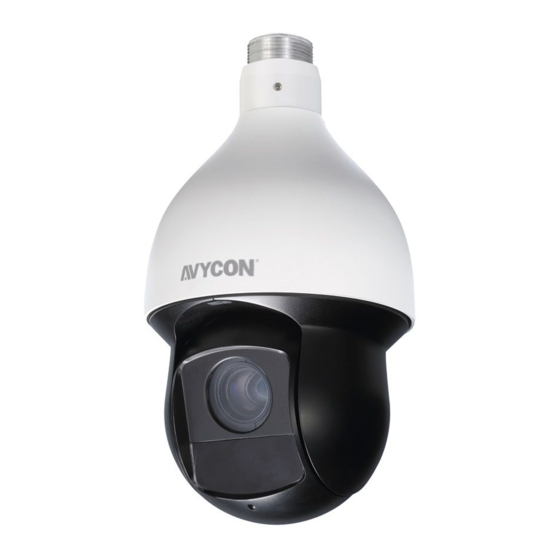

- Page 1 PT91X25LW INSTALLATION MANUAL Network Speed Dome & PTZ Camera...
- Page 2 Foreword General This manual introduces the precautions, installation preparations and cables of the Speed Dome & PTZ Camera (hereinafter referred to as "the Device"). Some specifications and metrics might not apply to all models, and the actual product shall prevail. Safety Instructions The following categorized signal words with defined meaning might appear in the manual.
- Page 3 All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or errors in print.
- Page 4 Important Safeguards and Warnings The manual will help you to use the Device properly. Read the manual carefully before using the Device, and keep it well for future reference. Operating Requirements Do not press hard, violently vibrate, and soak the Device when transporting and storing it.
- Page 5 Contact your local retailer or customer service center if the Device is abnormal. Do not disassemble or repair the product by yourself. We will assume no responsibility for any problems caused by unauthorized modifications, disassembly or repair, incorrect installation or use, and overuse of certain components.
- Page 6 Requirements for Lifting the Device Select appropriate tools to lift the Device. Make sure that the selected tools reach the installation height. Make sure that the selected tools have high safety performance.
-
Page 7: Table Of Contents
Table of Contents Installation Preparation..................1 Basic Requirements....................Installation Check....................Cable Preparation....................1.3.1 Video Cable Requirements................1.3.2 RS-485 Cable Requirements................ 1.3.3 Selecting Power Cable................... 1.3.3.1 Power Cable....................1.3.3.2 PoE Power Cable..................Cables........................4 Cable Description ....................Cable Connection ....................2.2.1 Alarm Cable Connection................ -
Page 8: Installation Preparation
1 Installation Preparation 1.1 Basic Requirements All installation and operations shall conform to your local electrical safety regulations, fire protection regulations, and other relevant regulations. Make sure that the application scenario conforms to installation requirements. Contact your local retailer or customer service center if there is any problem. -
Page 9: Rs-485 Cable Requirements
Installation Preparation Table 1-1 Cables and maximum transmission distance (network) Model Maximum Transmission Distance (ft/m) RG59/U 750ft/229m RG6/U 1,000ft/305m RG11/U 1,500ft/457m Table 1-2 Cables and maximum transmission distance (HD Analog) Model Maximum Transmission Distance (ft/m) 720P (25 fps/30 fps): 1,640ft/500m SYV-75-3 720P (50 fps/60 fps): 984ft/300m 1080P (25 fps/30 fps): 984ft/300m... -
Page 10: Poe Power Cable
Installation Preparation 1.3.3.2 PoE Power Cable Table 1-4 PoE Power Cable POE Specification Network Cable Specification CAT5E and network cables with higher standard. HiPoE or BT... -
Page 11: Cables
2 Cables 2.1 Cable Description The Device is equipped with a multi-functional combination cable by default, including power cord, video cable, audio cable, RS-485 control cable, alarm cable, network cable, and optical fiber cable. For details, see Figure 2-1. The cables of different models vary, and the actual product shall prevail. The manual will introduce the cables as complete as possible. -
Page 12: Cable Connection
Cables Description 24V AC power input ● Red: V+ ● – Black: V ● Yellow-green: Grounding cable RS-485 ● Yellow: A+ ● – Orange: B Video output port Ethernet port ● White: Audio input ● Red: Audio output ● Black: Audio grounding cable ●... -
Page 13: Thunder-Proof Cable Connection
Cables 2.2.2 Thunder-Proof Cable Connection The following installation figures are for reference only, and the actual product shall prevail. This chapter takes PTZ camera as an example. 2.2.2.1 Outdoor Transient voltage suppressor (TVS) is applied to protect the Device against voltage spikes and overvoltage below 6000V. - Page 14 Cables Figure 2-2 Installing lightning protection devices outdoors Table 2-2 Installing lightning protection devices outdoors Description Video lightning conductor. Communication lightning conductor. Power supply lighting conductor. Impedance of the cable connected to the grounding wire should be less than 4Ω. The radius is 60 m.
-
Page 15: Indoor
Cables Figure 2-3 Installing lightning protection devices outdoors (2) R: The radius of the circle, and R=60 m. L1: The length of the pole that holds the lightning conductor. L2: The length of the rail that holds the Device. H: The length of the lightning conductor. To get the value of L1, you need to use the formula: 2.2.2.2 Indoor You shall use multiple copper cables whose cross-sectional area is not less than... - Page 16 Cables Figure 2-4 Installing lightning protection devices indoors Table 2-3 Installing lightning protection devices indoors Name Yellow-green grounding cable Indoor equipotential grounding terminal...
-
Page 17: Rs-485 Cable
3 RS-485 Cable 3.1 Basic Features TRS-485 industrial buses are half-duplex communication buses whose characteristic impedance is 120Ω. Its maximum load is 32 payloads (including controller devices and controlled devices). 3.2 Common Issues in Use Users tend to connect devices as the way displayed in Figure 3-1. In this case, the terminal resistance must be connected to the two devices whose cable length is the longest among all the devices (in Figure 3-1, cable length between 1# and 15# is the longest). -
Page 18: Faq On Rs-485 Cable
RS-485 Cable Figure 3-2 Connecting method with RS-485 distributors 3.3 FAQ on RS-485 Cable Malfunction Possible Reason Solution Baud rate/address of the Modify the baud host and Device are not rate/address of the host or matched. Device to be matched. The Device can perform Positive electrode and Connect cables to the... -
Page 19: Wi-Fi Performance
4 Wi-Fi Performance Figure 4-1 Wi-Fi performance description Performance Description Frequency band supported 2.4G; 5G CH1–CH13 (the actual working 2.4G channel shall prevail). Working channel (consistent with AP) The actual working channel shall prevail. ● At open places without interference, if the Device is installed at least 1.5 m above the ground, the effective communication distance is 100 m. -
Page 20: Cable Diameter (24V Ac) And Transmission Distance
5 Cable Diameter (24V AC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 24V AC power source voltage loss rate is below 10%. -
Page 21: Cable Diameter (12V Dc) And Transmission Distance
6 Cable Diameter (12V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 12V DC power source voltage loss rate is below 10%. -
Page 22: Cable Diameter (24V Dc) And Transmission Distance
7 Cable Diameter (24V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 24V DC power source voltage loss rate is below 10%. -
Page 23: Cable Diameter (30V Dc) And Transmission Distance
8 Cable Diameter (30V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 30V DC power source voltage loss rate is below 20%. - Page 24 Cable Diameter (30V DC) and Transmission Distance Transmission Transmission Transmission Transmission Transmission Distance Distance Distance Distance Power (W) (Diameter: (Diameter: (Diameter: (Diameter: 0.80) 1.00) 1.25) 2.00) 57 (17) 88 (27) 138 (42) 353 (108) 52 (16) 82 (25) 127 (39) 326 (99) 48 (15) 76 (23)
-
Page 25: Cable Diameter (36V Dc) And Transmission Distance
9 Cable Diameter (36V DC) and Transmission Distance The recommended transmission distances are for reference only, and the actual conditions shall prevail. The following table shows the maximum transmission distance of cables with certain diameter when the 36V DC power source voltage loss rate is below 25%. - Page 26 Cable Diameter (36V DC) and Transmission Distance Transmission Transmission Transmission Transmission Transmission Distance Distance Distance Distance Power (W) (Diameter: (Diameter: (Diameter: (Diameter: 0.80) 1.00) 1.25) 2.00) 88 (27) 138 (42) 215 (66) 550 (168) 82 (25) 128 (39) 200 (61) 511 (156) 76 (23) 119 (36)
-
Page 27: Wire Gauge Reference Sheet
10 Wire Gauge Reference Sheet Metric Bare Wire Bare Wire Cross Diameter (mm) Section Area (mm 0.050 0.00196 0.060 0.00283 0.070 0.00385 0.080 0.00503 0.090 0.00636 0.100 0.00785 0.110 0.00950 0.130 0.01327 0.140 0.01539 0.160 0.02011 0.180 0.02545 0.200 0.03142 0.230 0.04115 0.250... -
Page 28: Appendix 1 Cybersecurity Recommendations
Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. - Page 29 Cybersecurity Recommendations 4. Enable Account Lock The account lock feature is enabled by default, and we recommend you to keep it on to guarantee the account security. If an attacker attempts to log in with the wrong password several times, the corresponding account and the source IP address will be locked.
- Page 30 Cybersecurity Recommendations you need to save the log for a long time, it is recommended that you enable the network log function to ensure that the critical logs are synchronized to the network log server for tracing. 14. Construct a Safe Network Environment In order to better ensure the safety of equipment and reduce potential cyber risks, we recommend: Disable the port mapping function of the router to avoid direct access to...
- Page 31 Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice. phone: 949-752-7606 email: info@avycon.com social: @avycon_aivo website: avycon.com...
