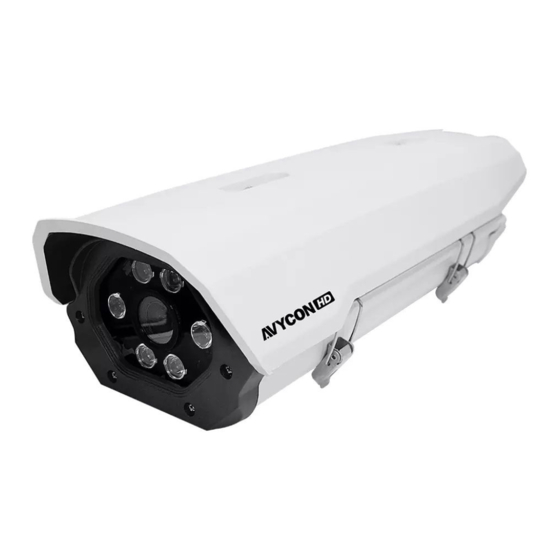

AVYCON AVC-LA92VT Owner's Manual

2. Features
1
High Power IR LED x 6PCS
4. Installation Guide
1. Remove 2 bolts and detach bracket-shoulder
from wall mount arm.
5. Cables
Full HD 1080P TVI/HD-SDI
MEGAPIXEL CCTV CAMERA
Owner's
Manual
● 1/2.9" 2.4MEGAPIXEL CMOS SONY Sensor
● 2.8~12mm Megapixel Lens
(ICR)
Ultra High Resolution
●
6 High Power IR LED's
●
● UTC
3
Waterproof
2
Split glasses
2. Align bracket-shoulder to the camera body
and tighten 2 bolts. (Included)
Dual Voltage Socket
(DC 12V/AC 24V )
Video output
(HD-SDI)
Video output
(TVI)
1. Dimensions
3. Contents
1 2
1.L-Wrench x1 2. DC JACK
5
5. Washer-Spring x2
3. Re-attach the wall mount arm and tighten
6. Settings
MENU
IRIS
IRIS ALC
EXPOSURE
EXPOSURE
BACKLIGHT OFF
BACKLIGHT
DAY&NIGHT EXTERN
COLOR DAY&NIGHT
DNR MIDDLE
COLOR
MOTION OFF
DNR
SYSTEM
EXIT
MOTION
SYSTEM
* Push the SET button > menu open
* Icon has sub menus.
EXIT
Press the set buttom to enter sub menus
1. Up and Down : Move Cusor
2. Left and Right : Value
* UTC control is available on supported recording devices
3. Left and Right > Push > Menu > Value
4. END : Push > Return
Unit : mm (Inch)
163.8
457.9
4
3
4. Washer x2
3. Bolt x2
6 7
6. SCREW-TX x2 7 .
2 bolts to secure the position.
· ALC · ELC
· BRIGHTNESS · SHUTTER · SENS-UP · AGC · RETURN
· OFF · WDR · BLC · HLC
· EXTERN · AUTO · COLOR · B&W
· AWB · COLOR GAIN · MAIN OUTPUT · RETURN
· OFF · LOW · MIDDLE · HIGH
· SHARPNESS · GAMMA · MIRROR · FLIP · ACE · DEFOG · PRIVACY · RETURN
· OFF · ON
· COM. · IMAGE RANGE · COLOR SPACE · FRAME RATE · FREQ · EX-SDI
· OUTPUT · TVI · COLORBAR · LANGUAGE · CAM TITLE · RESET · RETURN
· SAVE · CANCLE
