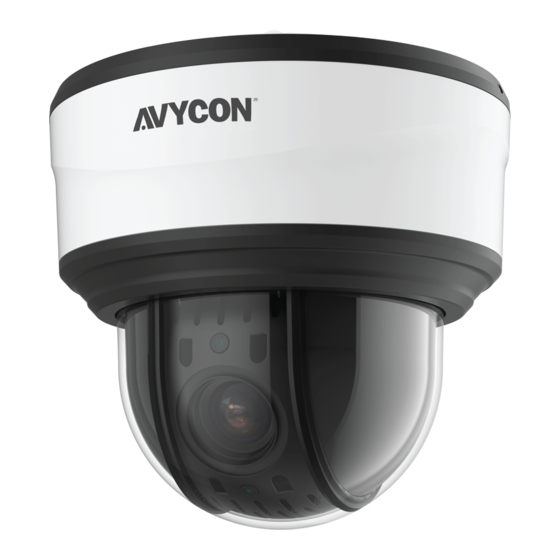

- Page 1 NPTZ51X12L QUICK START GUIDE 5MP MINI PTZ DOME NETWORK CAMERA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents........................Caution............................System Requirements....................... Hardware Overview........................- 12x Mini (PoE) PTZ Dome Network Camera................- Camera Installation........................How to perform a Hardware Reset................... How to Connect to Alarm Interface..................How to Connect the Waterproof Connector................Accessing the Network Camera.................... -
Page 3: Package Contents
Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions on installing and accessing this IP Network Camera. For more details, please refer to the User Manual. Package Contents Before installation, please verify that all the necessary items are supplied in the box as the package contents listed below. -
Page 4: Hardware Overview
1) Reset Button: Hold “Reset” button for 5 seconds, and the device will be restored to factory default 2) DC 12V & PoE (802.3at) are available for Mini PoE PTZ Dome Power Supply. 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L... -
Page 5: Camera Installation
fix the bracket in. Next, connect all necessary cables. Finally, rotate and secure camera onto the mounting bracket and tighten the set screw when the camera is in position. Mounting Bracket Mounting Screws Set Screw 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L... - Page 6 2. Assemble the recessed mount by taking the support plate up and screwing the fixation plate onto the support. Then position the camera onto the recessed mount and set the screws in. Lock Screws Fixation Plate Recessed Mount 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 7 3. Place the camera with the recessed mount attached through the drilled hole until fitted properly. Using mounting screws, attach the camera securely to the ceiling. Lock Screws 4. Attach the cover of the recessed mount and installation is completed. Mount Cover 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 8 Finally, rotate and secure camera onto the mounting bracket and tighten the set screw when the camera is in position. Mounting Bracket Wall Mount Ceiling Mount Set Screw Lock Screws 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 9 4. Loosen the screws of the dome cover to take it off. IF necessary, loosen the screws on the dome camera body to access the SD Card slot. Dome Cover SD Card Slot 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
-
Page 10: How To Perform A Hardware Reset
PIN1: Alarm Output NC / NO 24V DC 1A PIN2: Alarm Output NC / NO 24V DC 1A PIN3: Alarm Input NC / NO ≤12V PIN4: Alarm Input NC / NO ≤12V 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L... -
Page 11: How To Connect The Waterproof Connector
NOTE: If placed in an extremely wet environment, for added protection you can wrap the connector in electrical tape to prevent standing water to accumulate on connector. Rubber Ring Network Port Connector Screw Bolt Screw Nut O-Ring 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L... -
Page 12: Accessing The Network Camera
1. Install the Tools utility (This can be downloaded from our website) 2. Start Tools, then click the IPC Tools icon, and then all AVYCON IP cameras on the local network you are connected to will be shown with information such as IP address, MAC address, Status, Port number, Netmask, and Gateway. - Page 13 4. If the selected camera shows "Active" in the status bar, you can directly type the User Name and Password you have previously assigned and then make any modifications to the IP address and click on Modify. 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 14 (2) You need to be using Tools version V2.4.0.1 or above to activate the camera. 5. After activation, you can change the IP address or other network values, and then click “Modify” button to change the IP address successfully; 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 15 1. Change the IP address of computer to 192.168.10.0 segment, here are two ways as below: A. Start > Control Panel > Network and Internet Connection > Network Connection > Local Area Connection, and double click it. 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 16 B. Click “Advanced”, and then click “IP settings” > “IP address” > “Add”. In the pop-up window, enter an IP address that is in the same segment with your Avycon IP camera (e.g. 192.168.10.200, but please confirm that the IP address you pick does not conflict with another address on the network);...
- Page 17 4. After login, please select “Configuration” > “Basic Settings” > “Network” > “TCP/IP”. The Network Settings page appears (Shown as below Figure); 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 18 3. If this is the first time logging into your IP camera, the browser will prompt you to install the plugin. Please click on link that the window displays to start the download. 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 19 After the plugin has successfully installed, you can refresh the browser and you should be able to see video. If IE9 or higher version browser is used, it is suggested that the Avycon camera web link should be added as a trusted site. See the instructions as follows: 1.
- Page 20 3. Enter the IP address of the camera in the blank and click “Add”; 4. Enter the IP address into your browser's address bar. After logging into your AVYCON IP camera successfully, you should see live video. 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X12L...
- Page 21 Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice. phone: 949-752-7606 email: info@avycon.com social: @avycon_aivo website: avycon.com...
