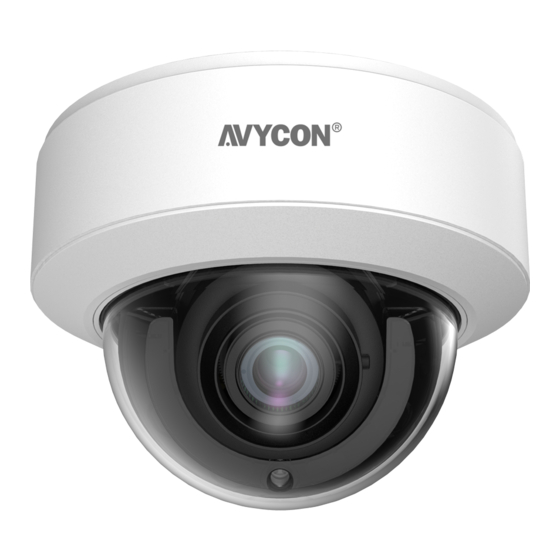

- Page 1 VNN41AVLT QUICK QUICK QUICK START GUIDE 4MP WATER-PROOF DOME NETWORK CAMERA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warning and Caution....................... Package Content..........................Overview........................... Overview: Connecting Network Cable .................. Installation ..........................5 Network Connection......................... -
Page 3: Warning And Caution
Please read this instruction carefully before operating the unit and keep it for further reference. All the examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. Warning and Caution If the product does not work properly, please contact your dealer or the nearest service center. -
Page 4: Package Content
Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions on installing and accessing this IP Network Camera. For more details, please refer to the User Manual. Package Contents AVC-VNN41AVLT 4 tapping screws PA 4×25 Camera... -
Page 5: Overview
Overview AVC-VNN41AVLT Type B: Manual Zoom Camera Lens cover IR light hood Type A: Motorized Zoom Camera 1--ALM-COM 2--ALM-OPEN 3--ALM-INA 4--ALM-GND DC12V Ethernet Connector Zoom+ (only available for type A) Audio Input (MIC) Focus Audio Output (HP) Zoom CVBS Video Output Micro SD Card Slot Alarm Input/Output Reset... -
Page 6: Overview: Connecting Network Cable
* If the PoE switch is used to power the camera, DC12V power supply is not required. * It is recommended to install the security cap for outdoor installation. Alarm Connection Alarm Input: Join the grounding ends of the sensor and the camera and then connect the signal cable of the sensor to the alarm input port (ALM-INA) of the camera. -
Page 7: Installation
Installation AVC-VNN41AVLT * Please make sure that the wall or ceiling is strong enough to withstand 3times the weight of the camera. * Please install the camera in the dry environment. You'd better install back the lower dome less than 4 hours after removing it. * Do not remove the protection film until finishing the installation. - Page 8 Figure 3 Rubber plug Install it when routing the cables through the ceiling. Lower dome Step 5: Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor (See Figure 5) and then adjust the camera according to the figure below to get an optimum angle.
-
Page 9: Network Connection
Network Connection AVC-VNN41AVLT Here we take accessing IP camera via LAN for example. Access through IP-Tool Switch Network Cable Network Cable MENU Computer Router Step 1: Make sure that the camera and the PC are well connected via LAN. Step 2: Find the IP-Tool from the CD and then install it in the computer. After that, run the IP-Tool as shown below. - Page 10 Figure 5 Figure 6 Lens cover Monitor Zoom- Zoom+ IR light hood Insert a micro SD card Zoom Foucs (Type A: Motorized zoom camera) (Type B: Manual zoom camera) Step 7: Install the lower dome back to the camera and fix it with screws. Then put the trim ring onto the lower dome and then rotate it clockwise until it is locked.
- Page 11 Step 4: Insert a micro SD card. Then adjust the view of angle and the image (See Figure 4, 5 and 6). Step 5: Install the lower dome back to the camera and fix it with screws. Then put the trim ring onto the lower dome and then rotate it clockwise until it is locked.
- Page 12 Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice. phone: 949-752-7606 email: info@avycon.com social: @avycon_aivo website: avycon.com...
