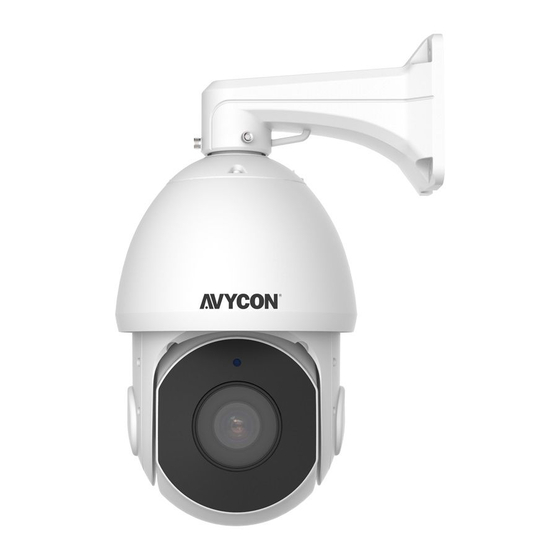

- Page 1 NPTZ51X30L QUICK START GUIDE 5MP MINI PTZ DOME NETWORK CAMERA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents........................Caution............................System Requirements....................... Hardware Overview........................Camera Installation........................- Mount Accessories......................... Outdoor Installation........................Accessing the Network Camera.................... -
Page 3: Package Contents
Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions on installing and accessing this IP Network Camera. For more details, please refer to the User Manual. Package Contents Before installation, please verify that all the necessary items are supplied in the box as the package contents listed below. -
Page 4: Hardware Overview
Hardware Overview - Speed Dome Network Camera AVC-NPTZ51X30L NOTE: 1) Only AC 24V is available for Speed Dome Network Camera power supply. AC 24V and PoE+ (802.3at) are available for PoE Speed Dome Network Camera power supply; 2) Built-in SD card slot can be seen after removing the 4 screws and open the front panel; 3) Speed Dome on AI Camera Series only support 30X/36X Optical Zoom Lens. -
Page 5: Camera Installation
Camera Installation AVC-NPTZ51X30L Step1: Check the wall or ceiling condition. Ensure that there is sufficient strength to avoid flaking. It should be able to bear the weight eight times larger than the camera’s; Step2: Use the wall or ceiling hanging holder to mark the holes. Drill 4 holes on the wall or ceiling;... - Page 6 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X30L...
-
Page 7: Mount Accessories
Camera Installation - Mount Accessories AVC-NPTZ51X30L The Junction Box is equipped for Wall Mount and Ceiling Mount in order to bring a rather flexible and easy installation of Speed Dome and Mini PTZ Dome Network Camera. Loosen the screws to open the front cover and rear cover, take out other parts from the box. Install on the Wall Mount / Ceiling Mount Step 1: Rotate to open the front cover over about 75°to conveniently take off it from the box;... - Page 8 Step 4: Install camera on wall/ceiling mount accessory, put the camera cables through them. The process would be easier if put the larger interface first; Step 5: Put the camera cables through screw nut, screw bolt and O-ring; Step 6: Take rubber ring circle over the cables and put it into screw bolt; Step 7: Rotate screw nut on screw bolt to tighten, then pass all the cables through the entry hole and rotate the whole weather-proof connector back on the front cover, and lock the accessory back on the front cover;...
- Page 9 Step 9: Carefully hold the front cover with wall/ceiling mount accessory and camera, put the front cover stick into the rear cover. The set screw will lock the body securely; Step 10: Connect camera cables with previous cables. Manage the cables well then close the front cover and lock the screws.
- Page 10 Install on the Pole Mount Step 1: Rotate to open the front cover over about 75°to conveniently take off it from the box; Step 2: Loosen the screws of the fix rings, put rings through the back of the box body; Step 3: Fix the rings with rear cover on the pole, fasten the screws;...
-
Page 11: Outdoor Installation
Outdoor Installation AVC-NPTZ51X30L The picture below shows an example of outdoor installation: The devices represented by numbers in the picture are explained as follows: ① Lightning rod ② Video surge arrester ③ Telecommunication surge arrester ④ Power surge arrester ⑤ Grounding conductor (resistance no more than 4 ohms) ⑥... -
Page 12: Accessing The Network Camera
1. Install the Tools utility (This can be downloaded from our website) 2. Start Tools, then click the IPC Tools icon, and then all AVYCON IP cameras on the local network you are connected to will be shown with information such as IP address, MAC address, Status, Port number, Netmask, and Gateway. - Page 13 3. Select a camera or multiple cameras according to the MAC addresses; the camera must be assigned an IP address to be accessible. SELECT SINGLE CAMERA SELECT MULTIPLE CAMERAS 4. If the selected camera shows "Active" in the status bar, you can directly type the User Name and Password you have previously assigned and then make any modifications to the IP address and click on Modify.
- Page 14 If the selected camera shows "Inactive" in the status bar (Camera with version V4x.7.0.69 or above), click to set the password when using it for the first time. You can also set the security questions when activating the camera in case that you forget the password (You can reset the password by answering three security questions correctly).
- Page 15 6. By double clicking on the selected camera's row or the browser icon of the camera, you can access the camera via a web browser directly with the browser window that will pop up. Assigning an IP Address via Browser If the network segment of the computer and that of the camera are different, please follow the steps to change the IP address: 1.
- Page 16 B. Click “Advanced”, and then click “IP settings” > “IP address” > “Add”. In the pop-up window, enter an IP address that is in the same segment with your Avycon IP camera (e.g. 192.168.10.200, but please confirm that the IP address you pick does not conflict with another address on the network);...
- Page 17 If this is the first time you are logging into the camera, you need to set a password first. If wanted, you can also set three security questions for your device after activation. You can now use this password to log into the camera. NOTE: 1.
- Page 18 5. Change the IP address or other network values as need, then click on the “Save” button; 6. You should now have completed changing the default IP address. Accessing from the Web Browser The camera can be used with the most standard operating systems and browsers. The recommended browsers are Internet Explorer, Firefox, Chrome, Safari.
- Page 19 After the plugin has successfully installed, you can refresh the browser and you should be able to see video. If IE9 or higher version browser is used, it is suggested that the Avycon camera web link should be added as a trusted site. See the instructions as follows: 1.
- Page 20 3. Enter the IP address of the camera in the blank and click “Add”; 4. Enter the IP address into your browser's address bar. After logging into your AVYCON IP camera successfully, you should see live video. 5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X30L...
- Page 21 Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice. phone: 949-752-7606 email: info@avycon.com social: @avycon_aivo website: avycon.com...
