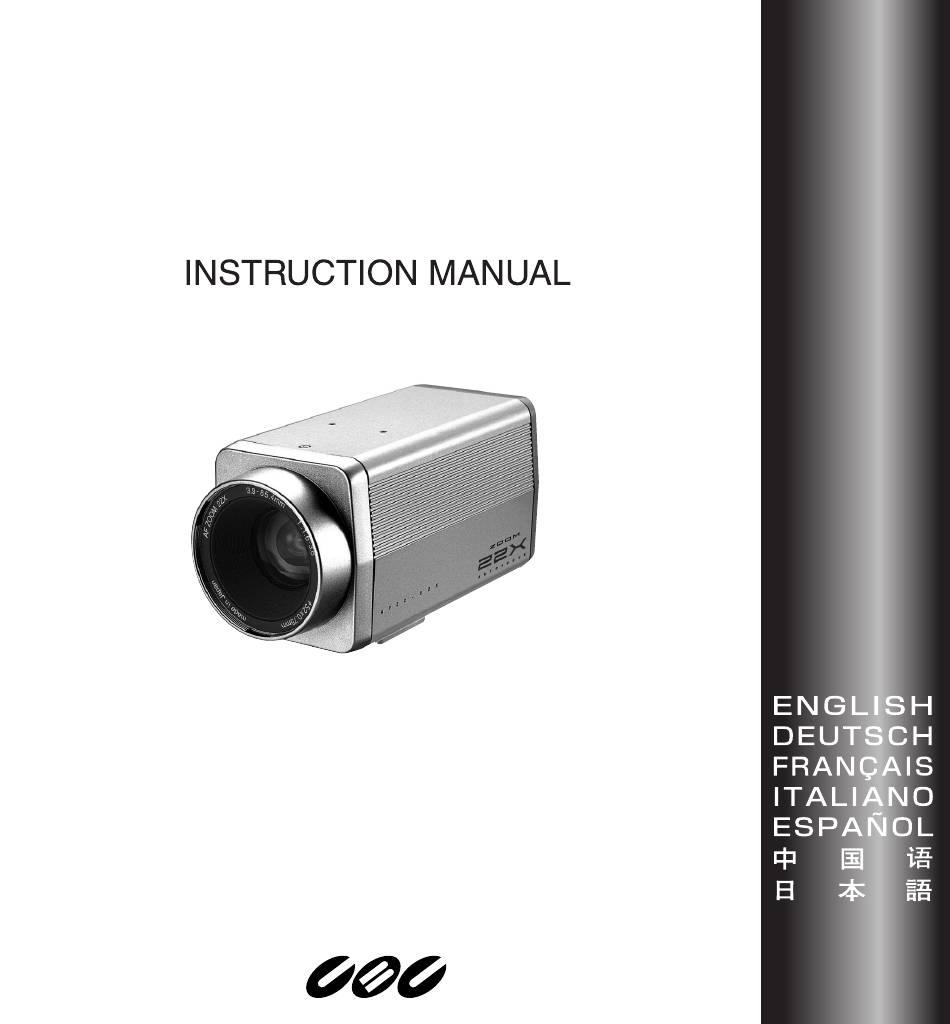

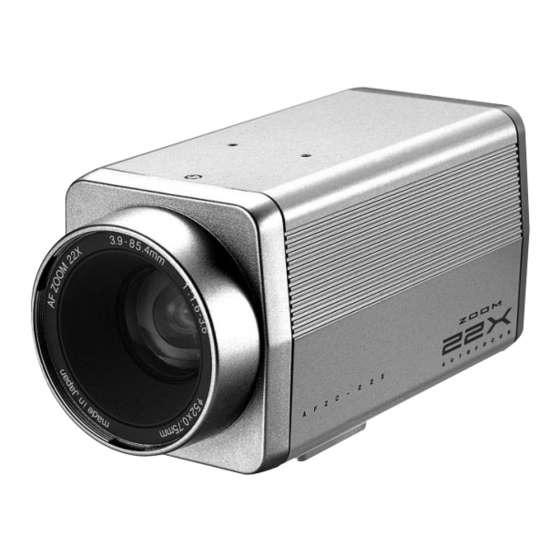

- Page 1 AF Zoom Camera AFZC-22X...
-
Page 2: Safety Precautions
Thank you for your purchase of this product. Before operating the product, please read this instruction manual carefully to ensure proper use of the product. Please store this instruction manual in a safe place for future reference. CONTENTS SAFETY PRECAUTIONS ....................EG-2 REAR PANEL ......................... -
Page 3: Power Supply
1. Power supply (1) Use only with a 24V AC power supply marked class 2 or +12V DC regulated power supply marked class 2. (2) To prevent fire or electrical shock, UL listed class 2 wiring should be used for the 12VDC or 24VAC input terminal. -
Page 4: Rear Panel
REAR PANEL Menu button: Displays and erases Menu Screen. Up button: Move the cursor up. Down button: Move the cursor down. Enter button: Select the mode. Cancel button: Exit to Main Menu. S-Video: Y/C output S-VIDEO AF button: One-push AF ENTER MENU CANCEL... -
Page 5: Osd (On Screen Display) Operation
b) RS-232C Interface: Pin No.2/3/5 Communication protocol: start/stop system, Communication Method: Full Duplex original process Communication Rate: 9600bps Error Recovery: No error detection, Transmission Method: bit serial (binary data) Re-transmission 8 bit fixed by PC start bit=1, stop bit=1 Flow Control: No parity bit OSD (On Screen Display) Operation 1) Menu button:... - Page 6 g) to Reset the particular Preset position back to factory setting. g-1) Select "PRESET", and push "Enter" twice. g-2) Select particular Preset Position (1 through 64) by "UP" or "DOWN" button, and push "Enter". g-3) Move the cursor down to "RESET" and push "Enter". g-4) Repeat g-1) to g-3) to reset other positions.
- Page 7 TELE/WIDE: setting by TELE/WIDE DIRECT: setting by input the number E.ZOOM: Digital Zoom ON (x 4, x 8) / OFF setup SPEED: speed of TELE/WIDE setup TELE/WIDE: TELE/WIDE setup POSITION: input a hexadecimal number (on DIRECT) 4) FOCUS: a) Select "FOCUS" in Main Menu by pushing "Enter" button. b) Select "AF, FAR/NEAR, DIRECT, ONE-PUSH, INFINITY".
-
Page 8: White Balance
5) WHITE BALANCE: Choose which white Select from:AUTO: 3200-6000K INDOOR: 3200K balance is used. OUTDOOR: 5800K AWB: one-push AWB R/B gain setting (on MANUAL) ATW: 2000-10000K MANUAL: R/B setting and push "Enter" to set. MANUAL: a) Push "Enter" button. b) Adjust "R" & "B" by "UP" or "DOWN" button. 6) AE: BRIGHT Select from:FULL AUTO... - Page 9 Please refer to the following table regarding the 2 digit data for IRIS/SHUTTER/GAIN/BRIGHT/EXP.COMP. Bright combination of IRIS IRIS Shutter and GAIN Step Data IRIS Step Data Shutter Step IRIS Gain CLOSE CLOSE 1/15 1/30 1/60 1/90 F9.6 1/100 F9.6 1/125 F6.8 1/180 F6.8...
- Page 10 9) ENHANCER: 7) EXP.COMP.: To select the level of Edge Enhancement To set up AGC level. (soft or sharp). a) Select "EXPCOMP" and push "Enter". a) Select "ENHANCER" and push "Enter". b) Select "ON". b) Adjust to Soft or Sharp by "UP" or c) Adjust the level by "UP"...
- Page 11 11) FREEZE: 13) TITLE: To freeze the picture. To set the title. a) Select "FREEZE" and push "Enter". a) Select "TITLE" and push "Enter". b) Choose "ON". b) Choose "ON". c) Choose "OFF" to go back to Live Mode. c) Set the title by "Enter" button, and "UP"/ "DOWN"...
-
Page 12: Specifications
SPECIFICATIONS Model AFZC-22X / NTSC AFZC-22X / PAL TV System NTSC Image Sensor 1/4” CCD ICX - 228AK 1/4” CCD ICX - 229AK Effective number of pixels 768(H) x 494(V) 752(H) x 582(V) Scanning System 2:1 Interlace Scanning Frequency 15.734 kHz(H) 59.94 Hz(V) 15.625 kHz(H) 50.0 Hz(V)
