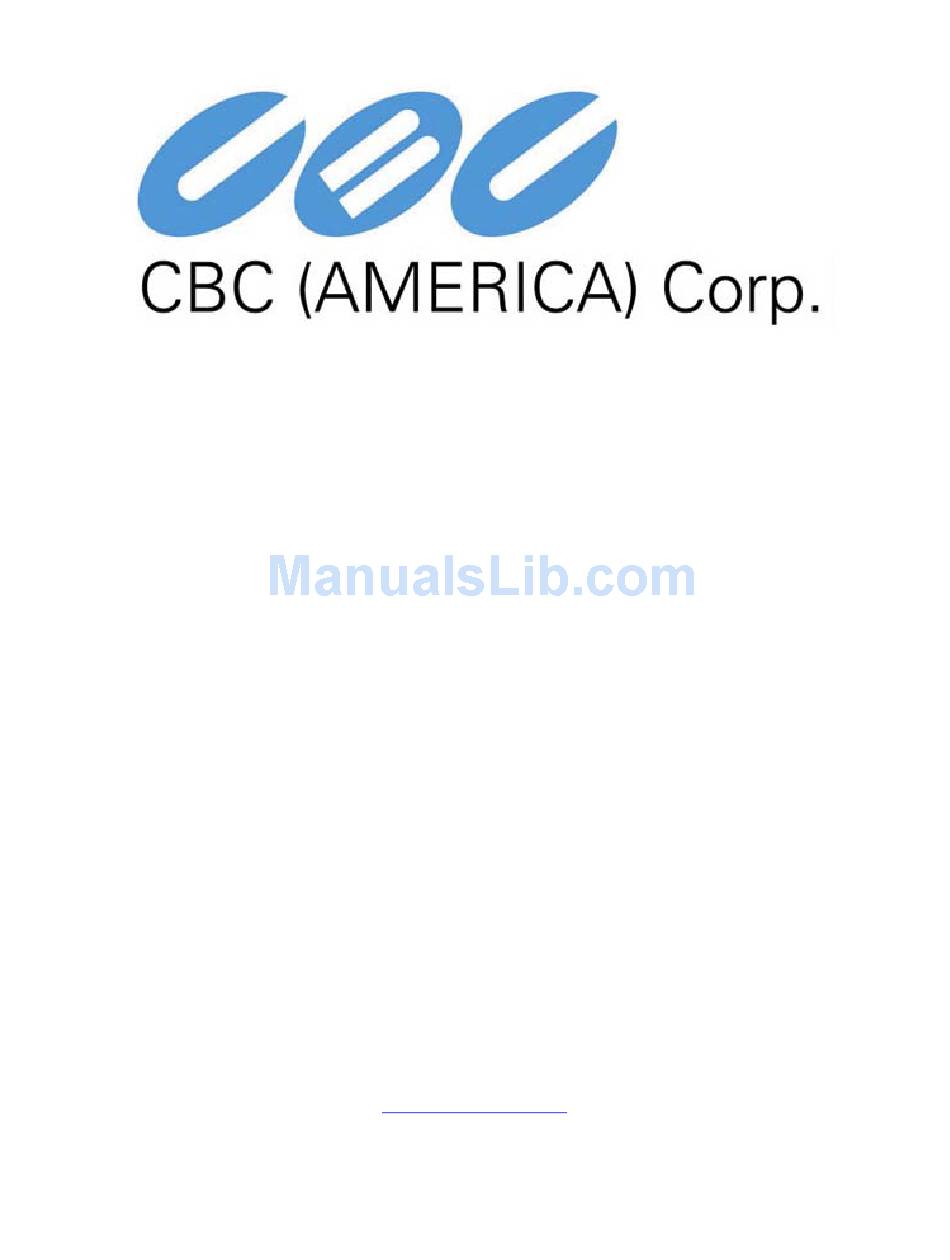

Page 1: User Manual
Megapixel Cameras and Surveillance Software User Manual Megapixel Cameras Surveillance Software User Manual August 22, 2006 www.cbcamerica.com CBC (America) Proprietary Information... - Page 2 DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CBC (AMERICA) CORP. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS,...
-
Page 3: Table Of Contents
Optics ...8 Manual Lenses...8 Using Manual Iris Lenses ...8 Auto-Iris Lenses ...8 Using Auto-Iris Lenses ...8 Monitoring Iris Status with CBC Video System ...8 Accessing CBC Cameras ...8 Supported Network Services ...9 VIDEO SURVEILLANCE SOFTWARE MPS...10 Software Installation ...10 Configure Firewall ...10 CBC Application Manager ...13... - Page 4 Megapixel Cameras and Surveillance Software User Manual Frequently Asked Questions...33 Regulatory Compliance ...41 FCC Compliance Statement ...41 CBC (America) Proprietary Information...
-
Page 5: Introduction
Megapixel Cameras and Surveillance Software Introduction Thank you for purchasing CBC mega-pixel IP video cameras. MP2, MP3DN, MP5, and MP8D are state-of-the-art IP cameras designed to deliver full-motion high definition digital video across local area networks. The CBC software system accommodates multiple cameras connected to a single video server and provides for a variety of display and digital archiving modes. -
Page 6: Recommended Accessories
0.01 lux. MP3DN typically delivers 20 FPS in day mode and over 30 FPS in night mode. MP5 is a 5-megapixel resolution camera. Its maximum resolution is 2592 by 1944. CBC (America) Proprietary Information User Manual... -
Page 7: Connectors
The cameras are to be installed according to the applicable code. The mounting means should be adequate for mounting a 1 lb camera (except MP8D that weighs 4lbs) Network Cabling Category 5 cabling or better is recommended. All network cabling must be installed according to applicable codes and regulations. CBC (America) Proprietary Information User Manual... -
Page 8: Optics
(<38mm). Manual Lenses A wide variety of C/CS mount lenses with megapixel resolution may be used with CBC cameras. Note that all C-mount lenses require a 5mm adaptor ring. Some lenses may also require 0.4mm-0.8mm adjustment spacers. -
Page 9: Supported Network Services
MP2, MP3DN and MP5 implements deliver video over TFTP and HTTP network protocols. TFTP protocol yields the highest frame rate. It is accessible to the user through CBC SDK. CBC Video software also utilizes TFTP protocol. HTTP protocol delivers lower frame rates but allows direct access to the cameras through Internet Explorer or other HTTP-based application. -
Page 10: Video Surveillance Software Mps
PC can display live video stream and browse archives using Internet Explorer. Note that when used with CBC Video System the remote PC does not connect to cameras directly, but rather to the CBC Video System server. - Page 11 Figure 4. If these applications are not in the list, click “Add Program” button. Find “CBC Installer” in the list of programs and click “Ok”. Repeat same for “CBC Video System”.
- Page 12 Figure 4. Verify "LocalMachine" or “CBC exceptions are allowed Video System”, “CBC Manager”, and “CBC Installer” are in the list of exceptions Figure 5. Add CBC Installer, CBC Application Manager, and CBC Video System to the list of exceptions CBC (America) Proprietary Information p.12...
-
Page 13: Cbc Application Manager
Camera Installer Camera Installer allows to find all CBC cameras that are present on the local area network, assign IP addresses to detected cameras and to verify that the cameras are accessible and operational. Camera Installer saves information about installed cameras into an .ini file used by CBC Video System. Camera Installer supports two modes of operation –... - Page 14 Megapixel Cameras and Surveillance Software Advanced Mode – In this mode the user can detect all CBC cameras present on the local • area network and choose one or more cameras for the installation. Furthermore, Advanced mode allows to set IP of the cameras either automatically (as in Basic mode) or manually, if specific values of IP addresses are required.
-
Page 15: Operating Cbc Video System Mps
Windows task bar. Toolbar The toolbar of the CBC Video System is located in the upper portion of the screen above the video display area. It contains the following icons: Turns on/off a drop-down list of the installed cameras. -
Page 16: Selecting Full / Reduced Resolution And Zoom
“photo”, “save”. The directory path to the snapshot folder is specified in the Settings menu (see Settings), or using the Right-Click menu under “Save To” (see Right- Click menu). By default, this is the directory C:/Program Files/CBC America/Video Surveillance/photo. Selecting Full / Reduced Resolution and Zoom In order to fit multiple video images on screen the images are displayed at a reduced resolution. -
Page 17: Settings
Settings menu (shown on the left) is the top level menu for all settings provided in the CBC Video System. Selecting one of the menu items opens up a lower level drop- down menu containing detailed settings and options. -
Page 18: Exposure
Auto exposure maintains the target image brightness under changing lighting conditions. CBC (America) Proprietary Information Exposure is a lower-level menu to adjust exposure related settings: “Illumination” is a group of options to adjust •... -
Page 19: Image Quality
Megapixel Cameras and Surveillance Software User Manual Image Quality CBC (America) Proprietary Information p.19... - Page 20 “Size of Picture” adjusts starting coordinates and the image size. Note: affected by “Don’t update sensor window” in Advanced settings. “Rotate 180” is an option for flipping the image vertically and horizontally such that it is rotated 180 • degrees. CBC (America) Proprietary Information User Manual p.20...
-
Page 21: Archive
Archive Motion Detection Motion detection is achieved by analyzing inter-frame brightness changes on a pixel-by-pixel basis. There are two modes of Motion Detection supported in CBC Video System: a software mode and an on-camera mode. The software mode performs motion detection by processing the images after they were transmitted from the camera to the computer. - Page 22 Motion detection is computed independently in multiple detection zones on a square grid. The largest grid supported for any CBC camera model and image size is 8 by 8. The actual grid for any particular model is determined by the chosen zone size (a drop-down list in the lower right corner of the Motion Settings screen) and the camera’s pixel resolution.
-
Page 23: Save To
DirectX. “Auto – Startup” automatically restart the CBC Video System with the earlier settings after it was stopped. “RealTime if folded” is an option to continue running the CBC Video System application at the top priority level in the... -
Page 24: Access Control / Permission
Adding, changing, and removing the users is done via three buttons “Add”, “Change”, and “Remove” on the bottom of the menu. Remote Viewing MPS software has built-in web server allowing CBC cameras and archives to be viewed remotely. CBC (America) Proprietary Information ... -
Page 25: Day/Night
The iris can be disabled by un-checking “Enabled”. The camera will open the iris fully and have electronic auto-exposure working. This configuration is identical to using a manual lens. CBC (America) Proprietary Information “Day/Night” settings apply only to MP3DN camera. -
Page 26: Right-Click Menu
Megapixel Cameras and Surveillance Software Right-Click Menu Right-clicking anywhere within the CBC Video System screen allows the user to invoke an additional menu: CBC (America) Proprietary Information The state of the auto-iris is displayed on a color panel which has six different states: ... -
Page 27: User Authentication
“Video” displays live video in full-screen mode. “Hide” minimizes the CBC Video System application and hides it in the system tray of the Windows task bar. “Log off” logs off the current user. “Exit” exits the CBC Video System application. -
Page 28: Language Selection
CBC Video System allows setting up password-protected access (see Access Control / Permission). If one or more user accounts were created, the CBC Video System will display a log-in dialog prompting for the user name and password, as shown below:... -
Page 29: Avi Maker - Making Video Clips From The Archive
“photo”, “save”. AVI Maker - Making video clips from the archive The AVI Maker is started by clicking the corresponding Run button in the CBC Application Manager. NOTE: PLEASE MAKE SURE THAT THE ARCHIVE IS NOT EMPTY WHEN MAKING AVI CLIPS. -
Page 30: Firmware Loader - Upgrading The Cameras
“DateTime”. Firmware Loader - Upgrading the Cameras All models of CBC cameras are field-upgradeable. CBC Firmware Loader is the utility for upgrading the camera’s firmware and/or hardware. Note: all CBC cameras starting with firmware revision 51821 support firmware upgrades, and all CBC cameras with MAC address ending with 62-00 and above also support hardware upgrades. - Page 31 Megapixel Cameras and Surveillance Software The firmware upgrade will start automatically. Do not disconnect the CBC camera. When • the upgrade is complete “Success!” message will be displayed with the new revision of firmware. To upgrade the hardware: Click “Upgrade Hardware” and choose the hardware upgrade file. The file name starts with •...
-
Page 32: Http Access
Camera Web Page CBC cameras can be accessed from IE browser via the on-camera web page. The web page allows to change camera settings and to view live video by means of stored on-camera Java script. The web page is... -
Page 33: Frequently Asked Questions
Shown below is an example of a system running at 22 FPS. However, the user can specify the archival frequency to be lower than the full frame rate. Most CBC cameras also provide highly sophisticated on-board motion detection. To further reduce the required storage the user has an option to archive only those images that contain the motion. - Page 34 4. How do I change the location of the Archive folder? CBC (America) Proprietary Information The default destination of the Archive folder is C:\Program Files\CBC America. The location of the archive can be changed using “Save to” menu under “Settings”. While the name of the archival directory...
- Page 35 In the Windows Firewall window click the Exceptions tab and add CBC programs (CBC Installer, CBC Manager, and CBC Video System) to the list of exceptions. Once the selections have been made click OK, and re-run the Camera Installer. If the Camera Installer still can not find the camera make sure that there are no hardware firewalls in the gateways and routers on your network.
- Page 36 Megapixel Cameras and Surveillance Software 8. What is the cost of a CBC (America) camera? The cost varies from camera to camera but for unparallel clarity our prices are unbeatable. Visit us online at www.cbcamerica.com 9. Is there third party software that can be used?
- Page 37 Megapixel Cameras and Surveillance Software 10. When should the user choose auto-iris option? Certain CBC cameras support auto-iris option. These cameras are: MP2A and MP5A. Auto-iris option allows keeping the lens optimally closed when there is sufficient scene illumination, providing good depth of focus. When the illumination diminishes the camera opens the lens, allowing more light to reach the sensor, thus extending the sensitivity range of the camera.
- Page 38 Motorized zoom is not supported by the camera, but you can mount the external PTZ unit with independent controls. 15. How do I access the CBC (America) Megapixel WEB camera home page to view my cameras remotely. Simply type in http://200.168.100.10/index.html. Replace bold (200.168.100.10) IP address with actual camera IP address.
- Page 39 23. When I attempt to update the firmware on the CBC camera with the firmware update option I receive the “Ack Timeout” message. Why do I get this error?
- Page 40 Alternatively, all cameras can be powered using POE 802.3af compliant power supply or switch. 28. How do I reset the camera settings to the original factory configuration? Resetting the CBC camera to its original configuration can be achieved through the built-in web server. To reset the CBC camera open IE explorer and type .
-
Page 41: Fcc Compliance Statement
Regulatory Compliance FCC Compliance Statement All CBC cameras have been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
