Summary of Contents for CBC ZC-PT212
-
Page 1: Installation Guide

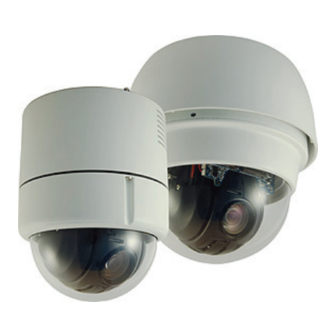

Vandal Proof Mini Speed Dome Camera Indoor Dome / Outdoor Dome Installation Guide Version 1.3 00P6H5000CSEB3... - Page 2 Installation Guide Preface The information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice This manual provides the installation information for indoor and outdoor Vandal Proof Mini Speed Domes.
- Page 3 Installation Guide This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 4: Warnings And Cautions
Installation Guide Warnings and Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Do not disassemble the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside. -
Page 5: Table Of Contents
Installation Guide Table of Contents Introduction.........................6 Standard Package Content ..................8 Dome Setups and Cable Connection ..............10 Preparations for Indoor Dome Camera Setups..........10 Preparations for Outdoor Dome Setups............. 11 Dome Setups .....................13 3.3.1 Switch Definition...................13 3.3.2 Communication Switch Setting.............14 3.3.3 Dome ID Setting ...................14 3.3.4 Dome Control Protocol Setting .............15 Dome Cable Definition and Requirements............16... - Page 6 Installation Guide Coaxial Telemetry ....................49 System Integration ....................50 Using Pelco Keyboard ..................50 Using Philips Allegiant Keyboard ...............52 Appendix A: Technical Specification ................53...
-
Page 7: Introduction
Installation Guide Introduction The Vandal Proof Mini Speed Dome Camera is a new subcompact high speed dome camera designed to deliver superb performance and durability with an intelligent and stylish housing that is suitable in any security and surveillance installation. With weather resistant housing (IP66 standard) and optional sunshield, the outdoor dome camera can face harsh circumstances. - Page 8 Installation Guide Connect dome cameras to other devices, as shown in the diagram, to complete a video surveillance system. NOTE: To extend the network distance up to 1.2 km (4000 feet) and to protect the connected devices, it is highly recommended to place a repeater at the mid-point.
-
Page 9: Standard Package Content
Installation Guide Standard Package Content Before proceeding, please check the box contains the items listed here. If any item is missing, or if damage is evident, DO NOT install or operate the product and contact your dealer for assistance. Indoor Vandal Proof Mini Speed Dome 12V DC Power Adaptor Power Hard Ceiling Mount and Cord (12V DC Only) - Page 10 Installation Guide Outdoor Vandal Proof Mini Speed Dome Data Cable for Power Lubricant & Screws Supply, Video and RS-485 Dome Body 50-cm, 13-pin Alarm Cable Water-proof Rubber 5.4” Optical Cover Quick Guide CD: Operation Manuals...
-
Page 11: Dome Setups And Cable Connection
Installation Guide Dome Setups and Cable Connection Before installing or connecting the dome camera, please refer to this section and complete preparation, switch setting and communication switch settings. Preparations for Indoor Dome Camera Setups Follow the steps below to remove the PE cushion inside the dome cover and take off the lens cap to prepare for subsequent switch setting. -
Page 12: Preparations For Outdoor Dome Setups
Installation Guide Step 5: Set the switches located on the bottom of the dome body. Refer to section 3.3 Dome Setups for detailed information about various switch setting. Preparations for Outdoor Dome Setups This installation procedure is for the outdoor dome equipped with sunshield housing. - Page 13 Installation Guide STEP 3 Remove the protective cover and PE sheet. STEP 4 Attach the dome cover to the dome body. Before doing that, apply some lubricant on the cover’s water-proof rubber make installation process smoother. Note that the tiny protrusion on the dome cover must align with one of the four holes on the dome body.
-
Page 14: Dome Setups
Installation Guide STEP 6 Screw the dome cover and body together. STEP 7 Set the switches located on the bottom of the dome body. Refer to section 3.3 Dome Setups for detailed information about various switch setting. Dome Setups Before connecting the dome camera to other devices of CCTV system, please complete the dome ID and communication switch setting. -
Page 15: Communication Switch Setting
Installation Guide 3.3.2 Communication Switch Setting The table below shows the function of each pin within the Communication Switch. Communication Switch SW 1 RS-485 Setting SW 2 SW 3 Termination SW 4 Line Lock SW 5 System Initialization SW 6 Reserved RS-485 is the interface that communicates the dome camera and its control device;... -
Page 16: Dome Control Protocol Setting
Installation Guide Centesimal Digit Decimal Digit Single Digit it NOTE: The number “0” should locate upwards as shown in the diagram above for correct switch definition. 3.3.4 Dome Control Protocol Setting Define the protocol you are going to use basing on the devices of your surveillance system. -
Page 17: Dome Cable Definition And Requirements
Installation Guide Decimal Digit Single Digit NOTE: The number “0” should locate upwards as shown in the diagram above for correct switch definition. Dome Cable Definition and Requirements For operation, the integrated dome camera requires the video cable to carry the video signals to the remote viewing site, power cable to power the dome and RS485 data cable to carry commands from the control device. -
Page 18: 22-Pin Connector Definition
Installation Guide 4 wires AC 24V Data Cable 3-Pin Terminal Block Power Input Video BNC connector Output RS485 2 wires Connector 4 wires NOTE: Be careful not to pull the cables improperly during installation. Additionally, it is suggested to fasten the cables after cable connection is completed. -
Page 19: Rs-485 Connector
Installation Guide The 22-pin connector definition is listed as below. Definition Cable AC 24-1/DC (＋) 20AWG ALM NC AC 24-2/DC (－) 20AWG ALM NO 20AWG ALM COM 24AWG ISOG ALM-1 ALM-3 ALM-2 ALM-4 ALM-5 ALM-6 ALM-7 ALM-8 ALM GND VGND 24AWG Video 3.4.4... -
Page 20: Cable Wiring And Connection
Installation Guide Corresponding Pins Definition (22-Pin Connector) 7,10 T+, R+ (D+) Reserved T-, R- (D-) 3.4.5 Cable Wiring and Connection Users may need to do cable wiring when: (1) Connecting self-provided cords to the connector housing (shown in the figure below) instead of using the equipped data cable or (2) Connecting alarm input and output devices. - Page 21 Installation Guide To unlock the terminal, press the hook, as indicated in the figure, with a proper tool and pull it out gently. Connect the 22-pin connector to the dome camera.
-
Page 22: Dome Installation
Installation Guide Dome Installation Basing on user’s installation environments, the dome can be installed on ceiling, on wall or on pole. In the following sections, various indoor dome installation accessories, installation methods and installation procedures will be described in detail. Optional Accessories Indoor Dome Camera Accessories Vandal Proof Cover... -
Page 23: Mounting Accessories
Installation Guide Outdoor Dome Camera Accessories Vandal Proof/Transparent/Smoke Cover Diameter: 137 mm (5.4 inches) Security Screw Set (equipped with Vandal Proof Cover) Power Adapter (Input: 100~115VAC/Output: 24VAC 72VA) (Input: 220~230VAC/Output: 24VAC 72VA) NOTE: When wiring, make sure the G/Y wire (Ground) inserted into the mid-pin of the terminal block Sunshield (Outdoor Dome) White Color, Height: 89.9 mm (3.54 inches);... - Page 24 Installation Guide ZCA-TB200A(T-Bar Ceiling Mount), T-Bar Body Holder and Red Sticker For in-ceiling Installation use. T-Bar Ceiling Mount: Height: 85 mm (3.35 inches); Diameter: 180 mm (7.1 inches); 0.5 kg (1.1 lbs).Red Sticker: 155 +/- 3 mm (6.1 +/- 1.2 inches) Ceiling Panel For ceiling mounting.
- Page 25 Installation Guide ZCA-ST25/50(Straight Tube) White, Iron, Height: 250/500 mm (9.8/19.7 inches) ,Diameter: 50 mm (2 inches) 1 kg (2.2 lbs) / 1.8 kg (4 lbs), Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and waterproof rubber×1, M8*12 screw×1. Corner Plate Mini For mounting with Mini Pendent Mount.
- Page 26 Installation Guide ZCA-CTB(Corner Thin Box) White/Ivory, 300×164×222 mm (11.8×6.5×8.7 inches); 3 kg (6.7 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. ZCA-CWB(Corner Wide Box) White/Ivory; 232×234×210 mm (9.1×9.2×8.3 inches); 2.7 kg (6 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. ZCA-PTB(Pole Thin Box) White/Ivory;...
- Page 27 Installation Guide ZCA-PWB(Pole Wide Box) White/Ivory, 270×166×155 mm (10.6×6.5×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4. ZCA-WBM(Wall Box Mounting) Ivory, 270(L)×166(W)×95(D) (10.6×6.5×3.7 inches); 2.2 kg (4.84 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4 ZCA-PTDM(Pole Thin Direct Mounting) White/Ivory, 232×136×60 mm (9.1×5.4×2.4 inches);...
- Page 28 Installation Guide ZCA-PWDM(Pole Wide Direct Mounting) White/Ivory, 270×170×60 mm (10.6×6.7×2.4 inches); Diameter: 112~130 mm (4.4~5 inches); 1 kg (2.2 lbs); Supplied with stainless steel straps×4, M8*16 screw×4, washer×4. Stainless Steel Straps For fixing Pole Direct Mounting/ Pole Box on the pole. Length: 700 mm (27.5 inches);...
-
Page 29: Ceiling Mount
Installation Guide ZCA-PSU100/220(Power Box) White, 186.5×147 mm (7.3×5.8 inches); 2.6 kg (5.8 lbs) (Input: 110~115VAC/Output: 24VAC 72VA) (Input: 220~230VAC/Output: 24VAC 72VA) ZCA-DS4/8/16(Signal Distribution Unit) Relay control codes to speed dome cameras. Dimension: 432×44×90 mm (17×17.32×35.43 inches) ZCA-COAX(Coaxial Telemetry) Transmit video and RS-485 control signals via one BNC line. Dimension: 100×90×28 mm (3.93×3.54×1.1 inches) Front View Rear View... -
Page 30: Hard Ceiling Mounting (Indoor)
Installation Guide 4.2.1 Hard Ceiling Mounting (Indoor) Hard Ceiling Mounting is a standard installation for an indoor dome, and general Mounting accessories are equipped in the standard indoor dome camera package. Here lists the items and tools needed to mount the dome camera onto the ceilings. - Page 31 Installation Guide STEP 5 Mount with three screws. STEP 6 Connect data cable through the center hole of the Mount to the dome body. NOTE: If use an IP dome, a network cable is needed other than the data cable. In addition, the length of the network cable should be no longer than 2 cm.
-
Page 32: In-Ceiling Mounting (Indoor)
Installation Guide Completion 4.2.2 In-Ceiling Mounting (Indoor) Here lists the items and tools needed to mount the dome camera into the ceilings. The supplied items are all in the dome camera package. Items Needed: • Dome Camera • T-Bar (Optional Accessory) •... - Page 33 Installation Guide STEP 2 Place the Red Sticker on the ceiling plate, and cut the circle part out of the ceiling. STEP 3 Put up the T-Bar into the ceiling hole. NOTE: The T-Bar wings should be inward when putting up the T-Bar into the ceiling hole, as shown in the picture.
-
Page 34: In-Ceiling Mounting With Ceiling Panel
Installation Guide STEP 7 Mount the dome body onto the bracket and rotate it clockwise. Then ensure the dome body fastened firmly and screw the T-Bar Body Holder. STEP 8 Assemble the Decoration Ring to the T-Bar. Completion 4.2.3 In-ceiling Mounting with Ceiling Panel To mount the dome camera to a suspended ceiling with the T-Bar, the ceiling panel could be employed, as shown in the figure below. -
Page 35: Ceiling Mounting With Straight Tube
Installation Guide Follow the steps below for installing the ceiling panel. Step 1: Cut the ceiling half. Step 2: Put the ceiling panel upward to the ceiling opening. Step 3: Attach and fasten the T-Bar mount onto the panel (Refer to the previous section 4.2.2 In-Ceiling Mounting for further details). -
Page 36: Wall Mount
Installation Guide 7) Connect the cables to the dome camera. Then attach the dome to the top holder and fix them with the supplied screw. Ceiling Mount: Straight Tube + Waterproof Rubber Wall Mount 4.3.1 Wall Mounting with Gooseneck Tube The following figures show how cables run through the tube in different ways. -
Page 37: Mini Pendant Mount
Installation Guide • Screws and Screw Anchors for fixing the gooseneck tube onto the ceiling (not supplied) Tools Needed: • Tool for drilling • Tool for screwing Follow the steps to mount the dome with the gooseneck tube. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, cables can be threaded through the cable entry hole on the tube. - Page 38 Installation Guide Tools Needed: • Tool for drilling • Tool for screwing Follow the steps to mount the dome with the Mini Pendant Mount. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, users could push up the cable entry board on the Mini Pendant Mount’s mounting plate to place the cables, as shown in the photo below.
-
Page 39: Wall Box Mounting
Installation Guide 4.3.3 Wall Box Mounting Items Needed: • Dome Camera • Gooseneck Tube and other equipped items (optional accessory) • Wall Box (optional accessory) • Waterproof Rubber (standard accessory for the outdoor dome) • Screws and Screw Anchors for fixing the wall box onto the ceiling (not supplied) Tools Needed: •... -
Page 40: Corner Mount
Installation Guide Wall Box Mounting: Wall Box Mount + Gooseneck Tube + Waterproof Rubber Corner Mount 4.4.1 Corner Standard/Mini Mounting Plate With the corner standard/mini mounting plate and gooseneck tube/mini pendant mount, the dome can be mounted on corner wall. Items Needed: •... -
Page 41: Corner Thin/Wide Box Mounting
Installation Guide 3) Attach the gooseneck tube/mini pendant mount to the fixed mounting plate with the supplied screws and washers. 4) Attach the waterproof rubber to the gooseneck tube/mini pendant mount. 5) Thread the cables through the gooseneck tube/mini pendant mount and the top holder. -
Page 42: Pole Mount
Installation Guide • Tool for screwing Follow the steps to mount the dome with the corner box and gooseneck tube. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, cables can be threaded through the cable entry hole on the tube. 2) Fix the Corner Thin/Wide Box on corner wall with proper screws and screw anchors (not supplied). - Page 43 Installation Guide Items Needed: • Dome Camera • Gooseneck Tube and other equipped items (optional accessory) • Waterproof Rubber (standard accessory for the outdoor dome) • Pole Thin/Wide Direct Mounting (optional accessory) • Stainless Steel Straps (optional accessory) Tools Needed: •...
-
Page 44: Pole Thin/Wide Box Mounting
Installation Guide 4.5.2 Pole Thin/Wide Box Mounting Items Needed: • Dome Camera • Gooseneck Tube and other equipped items (optional accessory) • Waterproof Rubber (standard accessory for the outdoor dome) • Pole Thin/Wide Box (optional accessory) • Stainless Steel Straps (optional accessory) Tools Needed: •... -
Page 45: System Expansion
Installation Guide System Expansion Connecting with Connector Box (Indoor) Ideally being used in indoor installation circumstances, a Connector Box provides easy wiring and well organized connection between alarms, cameras and other devices, for easy installation. To connect the connector box with other devices: •... -
Page 46: Connecting With Power Box (Outdoor)
Installation Guide Connecting with Power Box (Outdoor) A power box contains a 24V AC adapter, two terminal blocks (for communication and power) and one alarm board. With an IP66 case, the Power Box is ideal for outdoor installation environment. Two models are available: 100~115V AC power input (P1030) and 220~230V AC (P2030). -
Page 47: Data Formats Transforming
Installation Guide Data Formats Transforming To integrate other surveillance devices with the high speed dome cameras, we provide three kinds of converter/repeater to transform the communication formats between devices. If a converter/repeater is used, the total network distance of the surveillance system can be extended, and the connected devices will also be protected. - Page 48 Installation Guide Outdoor Dome Application...
-
Page 49: Signal Distribution Unit
Installation Guide Signal Distribution Unit The RS-485 Signal Distribution Unit (SDU) is designed to relay control codes to speed dome cameras. It is capable of communicating with cameras up to 1.0 kilometers away. Additionally, the SDU can be installed in either “star” or “daisy chain”... -
Page 50: Coaxial Telemetry
Installation Guide Coaxial Telemetry The Coaxial Telemetry is a low-cost solution to long distance connection between dome cameras and controlling devices (e.g. DVR and keyboard). It simplifies the work of wiring by transmitting video and RS-485 control signals via one BNC line, so that to bring users economical benefits. The following is the coaxial telemetry application diagram. -
Page 51: System Integration
Installation Guide System Integration GANZ PTZ cameras are allowed to be integrated into other suppliers' surveillance systems with large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The PTZ Camera can be controlled through the Pelco keyboard. Please follow the instructions below to manipulate the camera. - Page 52 Installation Guide Set Auto Pan To set “Auto Pan”, please enter the OSD and go to the By OSD Auto Pan setting menu. The following Presets allows you to execute Auto Pan quickly. ***<7 9> + <Preset>: Auto Pan 1 <7 9 ~ 8 2>...
-
Page 53: Using Philips Allegiant Keyboard
Installation Guide Using Philips Allegiant Keyboard The dome cameras can be integrated into Philips Allegiant systems through repeaters. Please follow the instructions to control PTZ cameras ZCA-BP-485 through Philips Allegiant systems. Symbol Definition <shot> Command dome cameras to go to a specific preset position. <set>... -
Page 54: Appendix A: Technical Specification
Installation Guide Appendix A: Technical Specification Items ZC-PT212N/P(Indoor) ZC-PT212N/P-XT(Outdoor) CAMERA CCD Sensor 1/4" SuperHAD CCD 1/4" ExView CCD Optical Zoom Digital Zoom 1 × ~ 10 × variable NTSC 380k Effective Pixels 440k Horizontal Resolution 470 TVL Scanning System NTSC / PAL Synchronization Internal Video Output...
