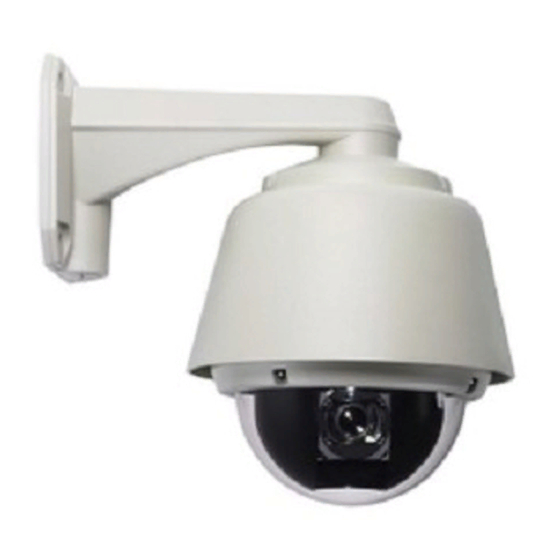

- Page 1 Outdoor Vandal Proof 27x DN PTZ Dome U ser Manual NY: 55 Mall Drive • Commack, NY 11725 (800) 422-6707 CA: 20521 Earl Street • Torrance, CA 90503 (800) 888-0131 www.computarganz.com...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN THE COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONAL This lightning flash with arrowhead symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...
- Page 3 NOTICE Important Safety Guide 1. Read, heed and follow all the Instructions Read all the safety and operating instructions before using the product. 2. Keep this manual Keep this manual for reference in future. 3. Attachments / Accessories Use only the attachments or accessories specified by the manufacturer. 4.
- Page 4 NOTICE Caution ‰ Operating z Before using, make sure that the power supply and others are properly installed. z While operating, if any abnormal condition or malfunction is observed, stop using the product immediately and then contact your local dealer. ‰...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Introduction Features Package Components Main Part Description Installation DIP Switch Setup Installation with Wall Mount Bracket Wiring and Cabling Operation Check Point before Operation Check Points for Preset and Pattern Function before Operation OSD Menu Reserved Preset (Hot Keys) Preset Swing Pattern... -
Page 6: Introduction
INTRODUCTION Features ‰ Powerful Zoom Camera & Setup Options z Image Sensor : 1/4" Super HAD color CCD z Zoom : u27 Optical Zoom, u12 Digital Zoom z Day & Night, Privacy Mask z SNR (Super Noise Reduction) Function z Various Focus Mode : Auto-Focus, Manual Focus, Semi-Auto Focus z Various Setup Options in OSD Menu. - Page 7 INTRODUCTION z MAX. 8 sets of Swing are programmable. This function is that the camera moves repetitively between two preset positions at programmed speeds. z MAX. 4 Patterns are programmable. This function is that the camera memorizes the path (mostly curve path) by the joystick of the controller and revives the trajectory operated by the joystick as closely as possible.
- Page 8 INTRODUCTION ‰ Network Function(Only for the IP addressable models) z Network functions including remote monitoring, bidirectional audio and others are available through IP based network such as LAN, ADSL/VDSL, and Wireless LAN. For more information, refer to the separated manual for IP Addressable models. ‰...
-
Page 9: Package Component
INTRODUCTION Package Component ‰ Product & Accessories z Main Body & Surface Mount Bracket z Default Accessories [Main Cable, Wrench] z Accessories for The Models with Alarm In/Out Function [I/O Cable] ‰ Brackets z Wall Mount Bracket [Screws : Machine M5u15, Hex Lag #14u50] Speed Dome Camera Instruction Manual 9/48... -
Page 10: Main Part Description
INTRODUCTION Main Part Description z Dome Cover Do not detach the protection vinyl from the dome cover before finishing all the installation process to protect the dome cover from scratches or dust. z DIP Switch Used to set up camera IDs and protocols. z Mounting Safety Wire Used to protect the product from being dropped by connecting safety wire of bracket to hook of main body when being installed. -
Page 11: Installation
INSTALLATION DIP Switch Setup Before installing the camera, set up the DIP switch to configure the camera ID and the communication protocol. ‰ Camera ID Setup z The ID number of camera is set using a binary number. Examples shown below. z The range of ID is 1~255. - Page 12 INSTALLATION ‰ Communication Protocol Setup z Select an appropriate Protocol with the DIP switch combination. Switch Mode Protocol (Pin 1) (Pin 2) (Pin 3) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps Others Reserved z Match the camera protocol with the camera protocol in the setting of your DVR or controller to control the camera.
- Page 13 INSTALLATION The terminal resistor is used for the following cases. z Case 1 : In case that the control cable length between a camera and a controller is relatively very long (1:1 Connection) If the communication cable length is very long, the electrical signal will bound in the terminal point.
-
Page 14: Installation With Wall Mount Bracket
INSTALLATION Installation with Wall Mount Bracket Make a hole whose diameter is 30~40mm Pull the wire(s) and cable(s) for the on the mounting surface to pass the system as below. Wire the cable(s) to the wire(s) and cable(s) through the mounting ports. -
Page 15: Wiring And Cabling
INSTALLATION Wiring and Cabling ‰ Port Description z Main Cable Port Pin Number (RJ45) Connector / Wire Color Signal Video + BNC Connector Video RS-485 + RS-485 Yellow Orange Power + Power White z I/O Cable Port Pin Number (RJ25) Wire Color Signal Blue... - Page 16 INSTALLATION ‰ Power Description z Carefully check the voltage and current capacity of the rated power. The rated power is indicated in the back of main unit. Rated Power Input Voltage Range Current Consumption AC24V AC 17V ~ 29V 1.5A z In case that the length of the power wire is very long, there may be voltage drop and the syatem may not work properly.
- Page 17 INSTALLATION ‰ Alarm Input z Sensor Input Before connecting sensors, check driving voltages and output signal types of the sensors. Since output signal types of the sensors are divided into Open Collector type and Voltage Output type in general, the wiring must be done properly after considering those types.
- Page 18 INSTALLATION If you want to use Alarm Input, the types of sensors must be selected in OSD menu. The sensor types are divided into Normal Open and Normal Close. If wrong sensor types are selected, alarms should be activated reversely to sensor inputs. ~ Normal Open Output Voltage is high state when sensor is activated ~ Normal Close...
-
Page 19: Operation
OPERATION Check Points before Operation z Before turning on the system, check if the wire(s) and cable(s) are connected properly. z Check if the camera ID on the controller is properly selected. The camera ID must be identical to that of the target camera. The camera ID can be checked by reading the DIP switch of the camera or on OSD. -
Page 20: Osd Menu
OPERATION OSD Menu z Function With OSD menu, the system can be properly configured for each application. z Entering into OSD Go Preset [95] Reserved Presets (Hot Keys) z Description Some Preset numbers are reserved to change some parameters without entering into OSD menu. -
Page 21: Preset
OPERATION Preset z Function MAX. 127 positions are programmable. The Preset number can be assigned from 1 to 128 except 95. Preset 95 is reserved for entering into OSD menu. Camera parameters such as White Balance, Auto Exposure and others can be set up independently and each preset can have its own parameter values independently from the other persets. -
Page 22: Pattern
OPERATION Pattern z Function This function is that the camera memorizes the path (mostly curve path) by the joystick of the controller and revives the trajectory operated by joystick as closely as possible. MAX. Patterns programmable Maximum 1200 communication commands can be programmed in a pattern. z Setting Patterns A Pattern can be created by the following methods. -
Page 23: Group
OPERATION Group z Function This function is that the camera memorizes the combination of Presets, Pattern and/or Swings sequently and runs Presets, Pattern and/or Swings repetitively. MAX. 8 sets of Group are programmable. Each group can have MAX. 20 actions which are the combination of Preset, Pattern and Swing. - Page 24 OPERATION z Alarm Input 3 Alarm Inputs are available. When external sensors activate, the camera runs pre-defined actions such as Preset, Pattern, Swing and Group. After the pre-defined time period passed, “Post Alarm” activates, which is pre-defined. Note that only the latest alarm input is effective when multiple sensors are activated at the same time.
-
Page 25: Osd Display
OPERATION OSD Display Preset Label LABEL12345 PRESET1 Action Title I:-2- O:1 Alarm Information Camera ID CAM 1 15/4/x1/N P/T/Z Information z P/T/Z Information Displays the amount of pan from zero degree vertical, the amount of tilt from zero degree horizontal and current compass direction. Also identifies the amount of the zoom magnification. -
Page 26: Osd Menu
OSD MENU Quick Programming Guide z The menu items with < > always have sub-menus. z To go to submenus or make the cursor move to the right, press NEAR key. z To go to the previous-upper level menus, press FAR key. z To make a selection, press NEAR key z To cancel a selection, press FAR key z To move the cursor in the menu, use the joystick to the Up/Down direction or Left/Right... -
Page 27: Display Setup
OSD MENU Display Setup Display setup allows you to program how labels are DISPLAY SETUP displayed on the monitor. In case of AUTO, the labels are ------------------------ displayed on the monitor when there are any changes in CAMERA ID parameters. PTZ INFORMATION AUTO ACTION TITLE... -
Page 28: Privacy Zone Mask Setup
OSD MENU ‰ Compass Direction Setup Move the camera to a target position and press NEAR SET NORTH DIRECTION button to save the direction as North. The direction is the ------------------------ reference direction to assign other compass directions. MOVE TO TARGET POSITION [NEAR:SAVE /FAR:CANCEL Privacy Zone Mask Setup... - Page 29 OSD MENU ‰ Privacy Zone Mask Area Setup Move your camera to an area to mask. Then a mask and the EDIT MASK 1 menu to adjust the mask size will be displayed. ------------------------ MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL] ‰ Privacy Zone Mask Size Setup Adjusts the mask size.
-
Page 30: Camera Setup
OSD MENU Camera Setup Sets the general functions of zoom camera module. ZOOM CAMERA SETUP z Focus Mode ------------------------ [AUTO/MANUAL/SEMIAUTO] FOCUS MODE SEMIAUTO Sets camera Focus mode. DIGITAL ZOOM IMAGE FLIP { SEMIAUTO Mode SHARPNESS This mode automatically exchanges focus STABILIZATION <WHITE BALANCE SETUP>... - Page 31 OSD MENU z Stabilization [ON/OFF] Compensates image vibrations by wind or others. The images with vibrations are compensated by Digital Zoom function and the image resolution with this function should be lower than normal image resolution when this function is turned on.
- Page 32 OSD MENU ‰ Auto Exposure Setup z Backlight [OFF/WDR/BLC/HLC] or [OFF/BLC/HLC] AE SETUP - GLOBAL Sets Backlight Compensation. If a bright ------------------------ BACKLIGHT backlight is present, the subjects in the DAY/NIGHT AUTO picture may appear dark or as a BRIGHTNESS silhouette.
- Page 33 OSD MENU z Shutter Speed [ESC/A.Flicker/Manual(u256~1/120000 sec)] Sets Shutter Speed. Shutter Speed is the duration of the electronic shutter. If Iris is set to Manual and Shutter Speed is set to ESC, Shutter Speed has higher priority. If Shutter Speed is set to A.Flicker, to remove Flicker, Shutter Speed should be set to 1/100 sec.
-
Page 34: Motion Setup
OSD MENU Motion Setup Sets the general functions of Pan/Tilt motions. MOTION SETUP z Motion ------------------------ [ON/OFF] MOTION LOCK Lock If Motion Lock is set to ON, it is impossible to PWR UP ACTION set up and delete Preset, Swing, Pattern and AUTO FLIP Group. - Page 35 OSD MENU ‰ Parking Action Setup This feature allows the camera to begin a specified action PARKING ACTION SETUP after a programmed time of inactivity. ------------------------ PARK ENABLE z Park Enable [ON/OFF] WAIT TIME 00:10:00 PARK ACTION HOME If Park Enable is set to ON, the camera runs an assigned function automatically if there is no PTZ command during the programmed "Wait Time".
- Page 36 OSD MENU ‰ Alarm Input Setup Defines Alarm Function. When an alarm is receive, an ALARM INPUT SETUP input signal to the camera triggers the user-defined action ------------------------ programmed for the alarm. ALARM NO. z Alarm No [1~3] TYPE N.OPEN ACTION NOT USED Selects a sensor number to set up.
-
Page 37: Preset Setup
OSD MENU Preset Setup z Preset [1~128] PRESET SETUP Number Selects a preset number to set up. If a ------------------------ PRESET NO. selected preset is already defined, the camera moves to the pre-defined position CLR PRESET CANCEL and preset parameters such as Label and <EDIT SCENE>... - Page 38 OSD MENU ‰ Preset Scene Setup 1 Use the Joystick to move the camera to a desired EDIT SCENE - PRESET 1 position. ------------------------ 2 Save the preset position by pressing NEAR key. 3 Press FAR key to cancel targeting the preset position. MOVE TO TARGET POSITION [NEAR:SAVE /FAR:CANCEL]...
-
Page 39: Swing Setup
OSD MENU Swing Setup z Swing [1~8] SWING SETUP Number Selects a Swing number to edit. If the ------------------------ SWING NO. selected Swing is not defined, "NOT USED" 1ST POS. NOT USED is displayed in the 1st Position and the 2nd 2ND POS. -
Page 40: Pattern Setup
OSD MENU Pattern Setup z Pattern Number [1~4 ] PATTERN SETUP Selects a Pattern number to edit. If the ------------------------ selected pattern number is not PATTERN NO. UNDEFINED defined, "UNDEFINED" will CLR PATTERN CANCEL displayed under the selected pattern RUN PATTERN number. -
Page 41: Group Setup
OSD MENU Group Setup z Group Number [1~8] GROUP SETUP Selects a Group number to edit. ------------------------ GROUP NO. If the selected Group number is not UNDEFINED defined, "UNDEFINED" will CLEAR GROUP CANCEL displayed under the selected Group RUN GROUP number. - Page 42 OSD MENU Define Action, Dwell time and Option. Note that the dark EDIT GROUP 1 rectangular is the cursor. Move the cursor Left/Right to ------------------------ select an item and move cursor Up/Down to change NO ACTION ### DWELL OPT each parameter. ------------------------ z Action ### 1 NONE...
- Page 43 OSD MENU After finishing setting up, press FAR key to exit. Then the EDIT GROUP 1 cursor will move to “SAVE”. Press Near key to save the ------------------------ data. NO ACTION ### DWELL OPT ------------------------ 1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE...
-
Page 44: System Initialize
OSD MENU System Initialization z Clear All Data Deletes all configuration data and the system SYSTEM INITIALIZE is set to the factory default. ------------------------ z Clear Display Set Initializes all the configuration data for Display. CLEAR ALL DATA CLR DISPLAY SET z Clear Camera Set Initializes all the configuration data for CLR CAMERA SET Camera. -
Page 45: Specifications
SPECIFICATIONS Specifications CAMERA PART Video Signal Format NTSC Image Sensor 1/4'' Super HAD color CCD Total Pixels 811(H)u508(V) 410K 795(H)u596(V) 470K Effective Pixels 768(H)u494(V) 380K 752(H)u582(V) 440K Horizontal Resolution 550 TV Lines(Color), 680 TV Lines(B/W) Video Signal-to-Noise 50 dB (AGC Off) u27 Optical Zoom, u12 Digital Zoom Zoom Forcal Length... - Page 46 SPECIFICATIONS MECHANISM PART 360q(Endless) Movement Range Tilt Preset 360q/sec. Speed 0.05 ~ 360q/sec. (Proportional to Zoom) Swing 1~ 180q/sec. Preset 127 Presets (Label, Independent Camera Parameter Setting) Pattern 4 Patterns [1200 Commands(Approx. 5 Minute) / Pattern] Swing 8 Swings 8 Groups (MAX. 20 Actions with The Combination of Preset, Group Pattern and Swing) Other Pan/Tilt Functions...
- Page 47 SPECIFICATIONS MECHANICAL Wall Mount Dome Polycarbonate Material Internal Polycarbonate, ABS External Aluminium ‡150mm / ‡ 5.9” Dome Size Dimension 310u279.5 mm Weight Approx 4.5Kg [Note] 1) Specification and features are subject to change without prior notice. 2) Specification and features are different by models. 3) Check the voltage and current capacity of rated power carefully.
-
Page 48: Dimension
SPECIFICATIONS Dimension z Main Body z Wall Mount Type [Unit : mm] Speed Dome Camera Instruction Manual 48/48...
