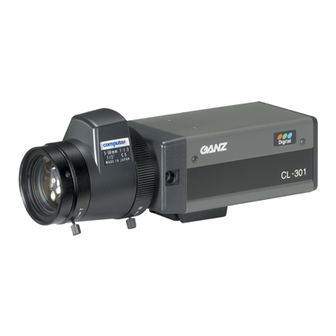

CBC CL-301 Instruction Manual

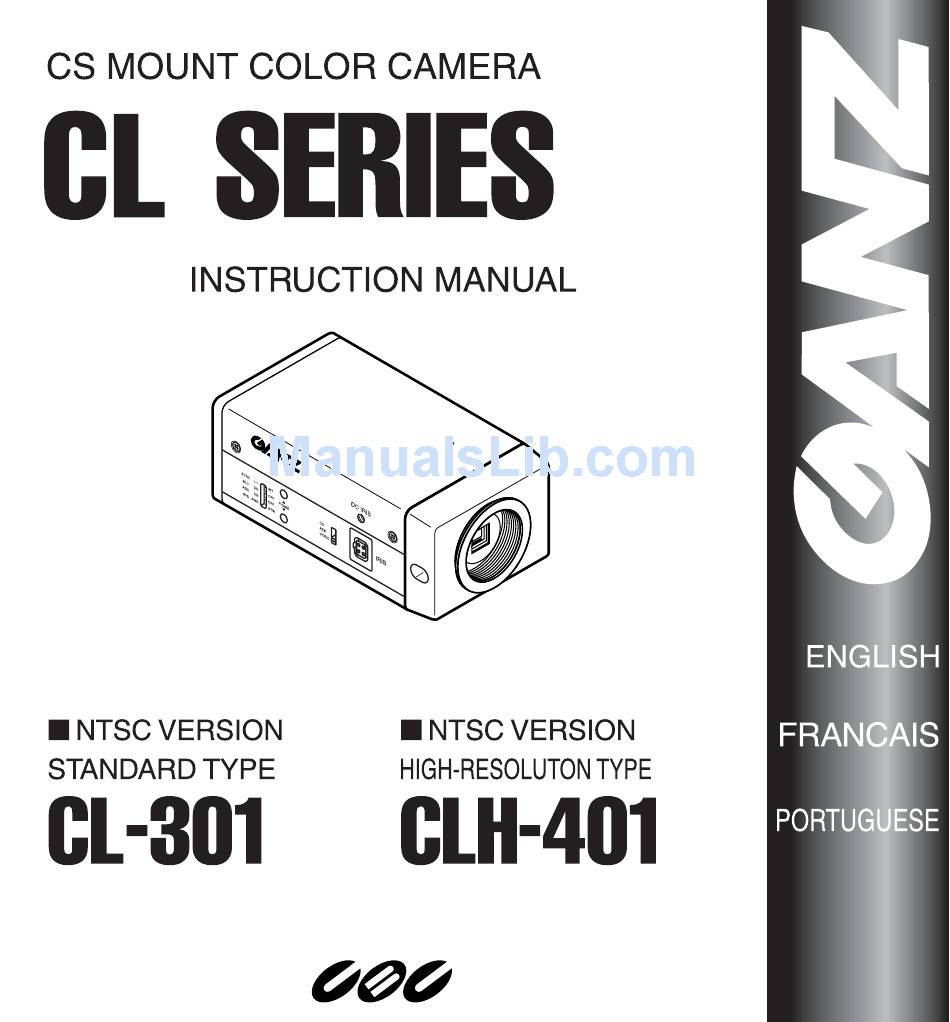

Cs mount color camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL-301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CBC CL-301

Summary of Contents for CBC CL-301

  • Page 2: Safety Precautions

    Thank you for your purchase of this product. Before operating the product, please read this instruc- tion manual carefully to ensure proper use of the product. Please store this instruction manual in a safe place for future reference. CONTENTS FEATURES EG-2 SAFETY PRECAUTIONS EG-2...
  • Page 3 WARNING : To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid electrical shocks, do not open the cabinet. Refer servicing to qualified personnel only. These cameras should be used with 12VDC or 24VAC. CAUTION : To prevent electrical shocks, do NOT use any other power source.

  • Page 4: Power Supply

    1. Power supply (1) Use only with a 24VAC power supply marked class 2 or 12VDC regulated power supply. (2) Be sure to connect each lead to the appropriate terminal. Wrong connection may cause mal- function and / or damage to the camera. 2.
  • Page 5 PART DESCRIPTION POWER +12VDC VIDEO CLASS 2 ONLY AC24V DC IRIS SYNC PHASE IRIS VIDEO Pin assignment of auto iris lens connector Pin No. DC iris Video iris Control - Vcc + Control + Not used Drive + Video Drive - Ground ①...
  • Page 6 INSTALLATION CONNECTION OF POWER SUPPLY CABLE NOTE Connect to the 12VDC 12VDC power supply. Please refer When using DC power, check for to the drawing on the left. proper polarity before connecting to power supply. +12VDC Connect to the 24VAC 24VAC power supply.

  • Page 7: Lens Mounting

    Remove the CCD cover. Then DC IRIS DC IRIS LEVEL LENS MOUNTING attach the CS mount lens to ADJUSTMENT the camera. Please refer to the drawing on the left. DC iris level is preset in the CAUTION factory. Only if necessary, adjust Be cautious not to use Auto the DC iris level to achieve the Iris Lens with over 75mA...

  • Page 8: Mounting Bracket

    MOUNTING BRACKET Tighten the screw to attach the bracket. Refer to the above drawing. SPECIFICATION Model No. CL-301 CLH-401 TV System NTSC Scanning System 2:1 Interlaced Image Sensor 1/3” IT. CCD Effective Elements ( H x V ) 510 x 492...
