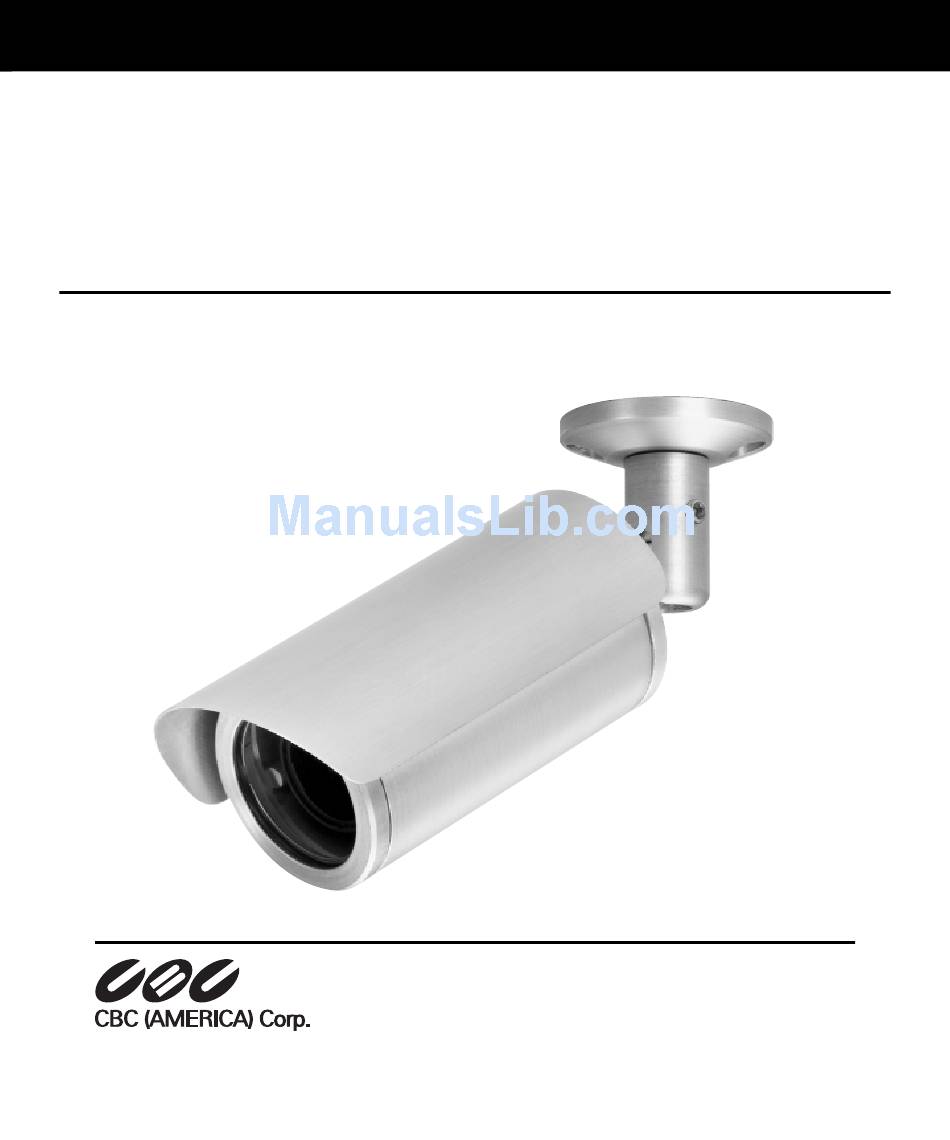

Page 1: Instruction Manual
CX Series Instruction Manual B/W, Color and Day/Night Outdoor Cameras Please carefully read and observe all instructions and warnings contained in this manual or on the product. Improper installation may damage the www.cbcamerica.com device and void the warranty. -
Page 2: Table Of Contents
CX Series Instruction Manual CONTENTS BASIC DESCRIPTION ........1 MAJOR FEATURES . -
Page 3: Basic Description

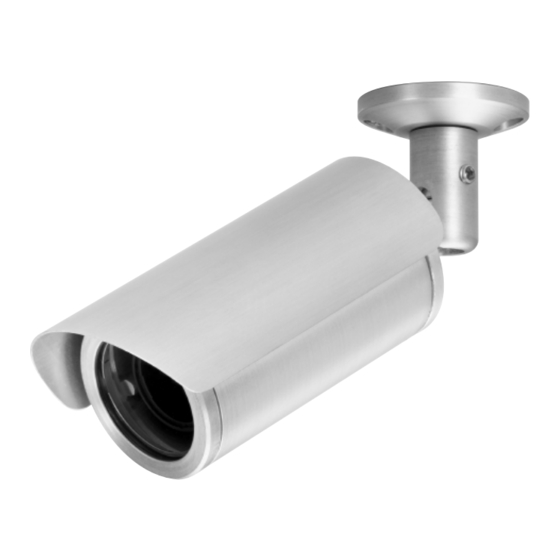

BASIC DESCRIPTION CX Series cameras utilize a high-sensitivity CCD camera with auto iris varifocal lens in a compact weatherproof housing. Four versions are available: Model CX-EV310A-2 (B/W with 2.8-10mm auto iris varifocal lens) Model CX-NV310A-2 (Color with 2.8-10mm auto iris varifocal lens) Model CXH-NV310A-2 (Hi-Res Color with 2.8-10mm auto iris varifocal lens) -
Page 4: Mounting The Camera
CX Series Instruction Manual BLACK WHITE GREEN MOUNTING THE CAMERA The camera base has two mounting holes for #8 screws (#8 screws and anchors are supplied). To mount the camera, loosen the swivel set screw with the 1/8” Allen wrench (supplied) and mount the base in the desired location. The mounting base can be removed completely from the bracket if necessary. -
Page 5: Notes
Operation is subject to the following conditions: (1) This device may not cause harmful interference; and (2) this device must accept any interference received including interference that may cause undesired operation. CX Series Instruction Manual Page 3... -
Page 6: Dip Switch Setup: Color Cameras
CX Series Instruction Manual DIP Switch Setup: Color Cameras (Factory settings shown. Do not change settings except for BLC function as needed) Iris Flickerless (FL) Back Light Compensation (BLC) 4 Synchronization Mode Page 4 IRIS DC Iris Auto Electronic Shutter Shutter speed to be fixed at 1/100 sec. -
Page 7: Dip Switch Setup: Black And White Cameras
Set to this position to improve camera sensitivity in low light conditions Set to this position when a strong light is in the background Normal position Internal synchronization mode Line lock mode CX Series Instruction Manual SYNC L.L. Page 5... -
Page 8: Camera Specifications Cx-Nv310A-2 Color/Cxh-Nv310A-2 Hi-Res Color
CX Series Instruction Manual CAMERA SPECIFICATIONS CX-NV310A-2 Color/CXH-NV310A-2 Hi-Res Color Video Signal System Image Output Scanning System Resolution Sensitivity @f1.2 S/N Ratio Image Sensor Effective Picture Elements Scanning Frequency Sync System Gamma Gain Control Iris Power Source Power Consumption Operating Temperature Range... -
Page 9: Camera Specifications Cx-Ev310A-2 B&W Camera
Scanning Frequency Sync System Gamma Iris Power Source Power Consumption Operating Temperature Range Lens CX Series Instruction Manual EIA Standard 1 Volt p-p/75 Ohms 2:1 Interlace 380 lines horz 0.1 lux (50 IRE) 0.04 lux (30 IRE) 50dB (AGC off) 1/4"... -
Page 10: Camera Specifications Dxh-Nv39A Hi-Res Color Day/Night
CX Series Instruction Manual CAMERA SPECIFICATIONS DXH-NV39A Hi-Res Color Day/Night Video Signal System Image Output Scanning System Resolution Sensitivity @f1.4 S/N Ratio Image Sensor Effective Picture Elements Scanning Frequency Sync System Gamma Gain Control Iris Power Source Power Consumption Operating Temperature Range... -
Page 11: Model Cx-Ev310A-2 B/W Camera Components
CX Series Instruction Manual MODEL CX-EV310A-2 B/W Camera Components Mounting Base Removable Sunshield Swivel Set Screw Removable Front Window Swivel Pedestal Rear End Cap Set Screw Housing Cover Feed-Thru Philips Screws Bracket (Secure Housing Cover to End Cap) Focus Line Phase... - Page 12 TOKYO, JAPAN COMMACK, NEW YORK TORRANCE, CALIFORNIA ©2005 CBC (AMERICA) CORP. All Rights Reserved. 11/05 NEW YORK: 55 MALL DRIVE • COMMACK, NY 11725 TEL 1-800-422-6707 • 631-864-9700 • FAX 631-543-5426 CALIFORNIA: 20521 EARL ST. • TORRANCE, CA 90503 TEL 1-800-888-0131 • 310-793-1500 • FAX 310-793-1506 TOKYO HEADQUARTERS: 2-15-13, TSUKISHIMA, CHUO-KU www.cbcamerica.com...
